Windshield Wiper Automatic Stop Relay Circuit Connector End Views

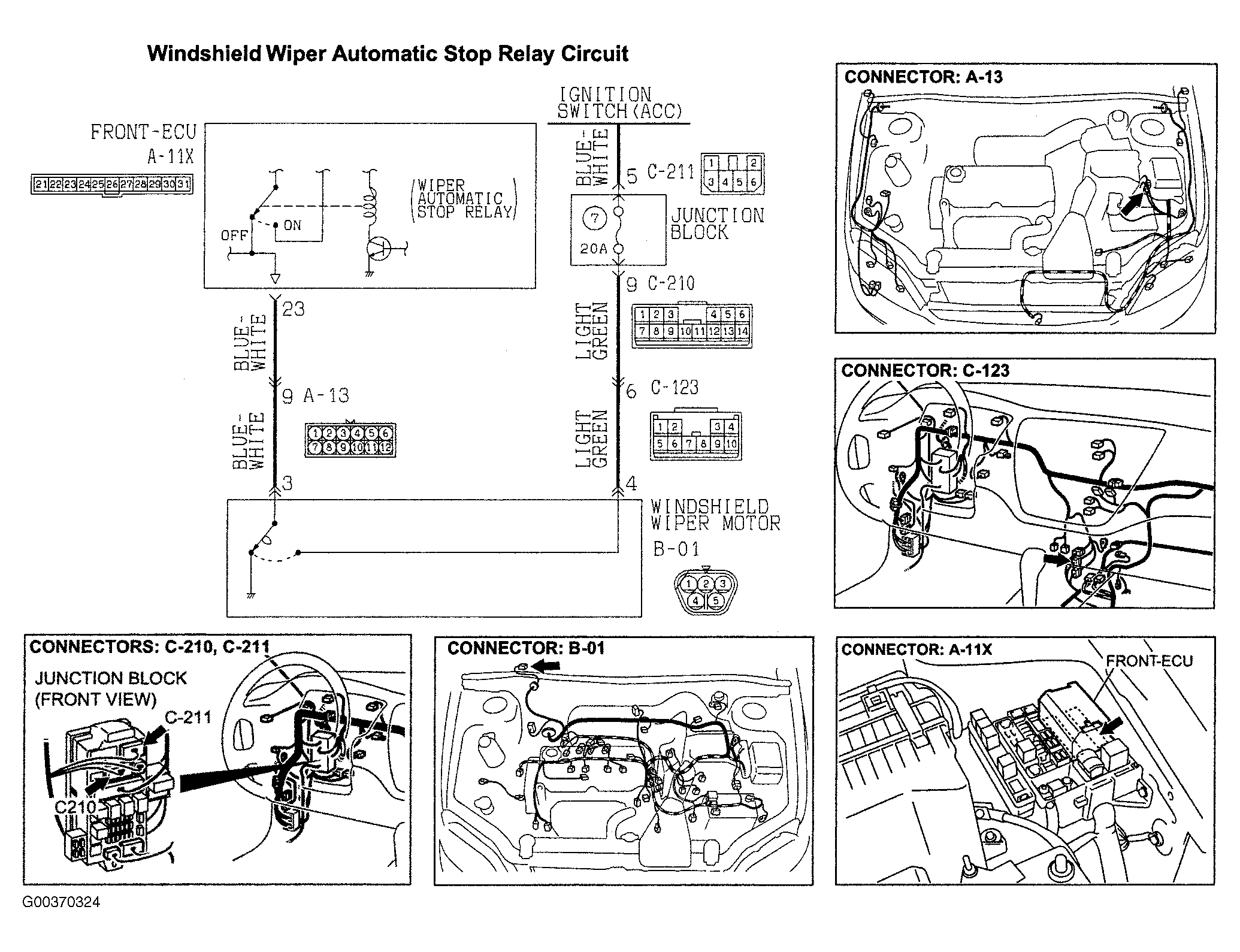

Fig 1: Windshield Wiper Automatic Stop Relay Circuit Connector End Views

G00370324

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
