Home >> Mitsubishi >> 2002 >> Lancer LS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Tests >> DTC P0443: Evaporative Emission Control System Purge Control Valve Circuit >> Notes

DTC P0443: Evaporative Emission Control System Purge Control Valve Circuit: Notes

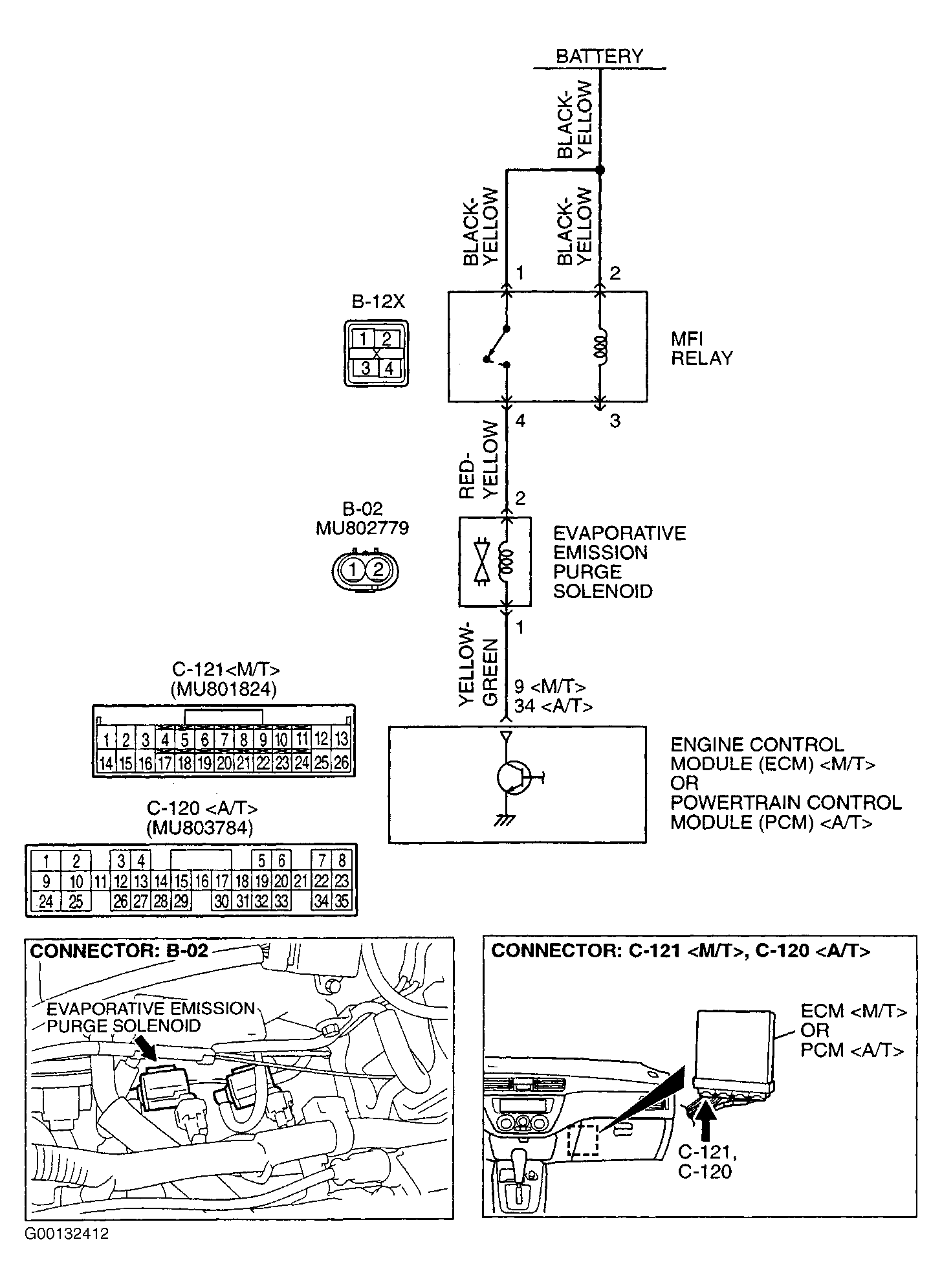

Fig 1: Identifying EVAP Emission Purge Solenoid Circuit, Component & Connector Location
G00132412Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
