Installation (Lancer)

Install knock sensor using Knock Sensor Socket (MD998773). Tighten knock sensor to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

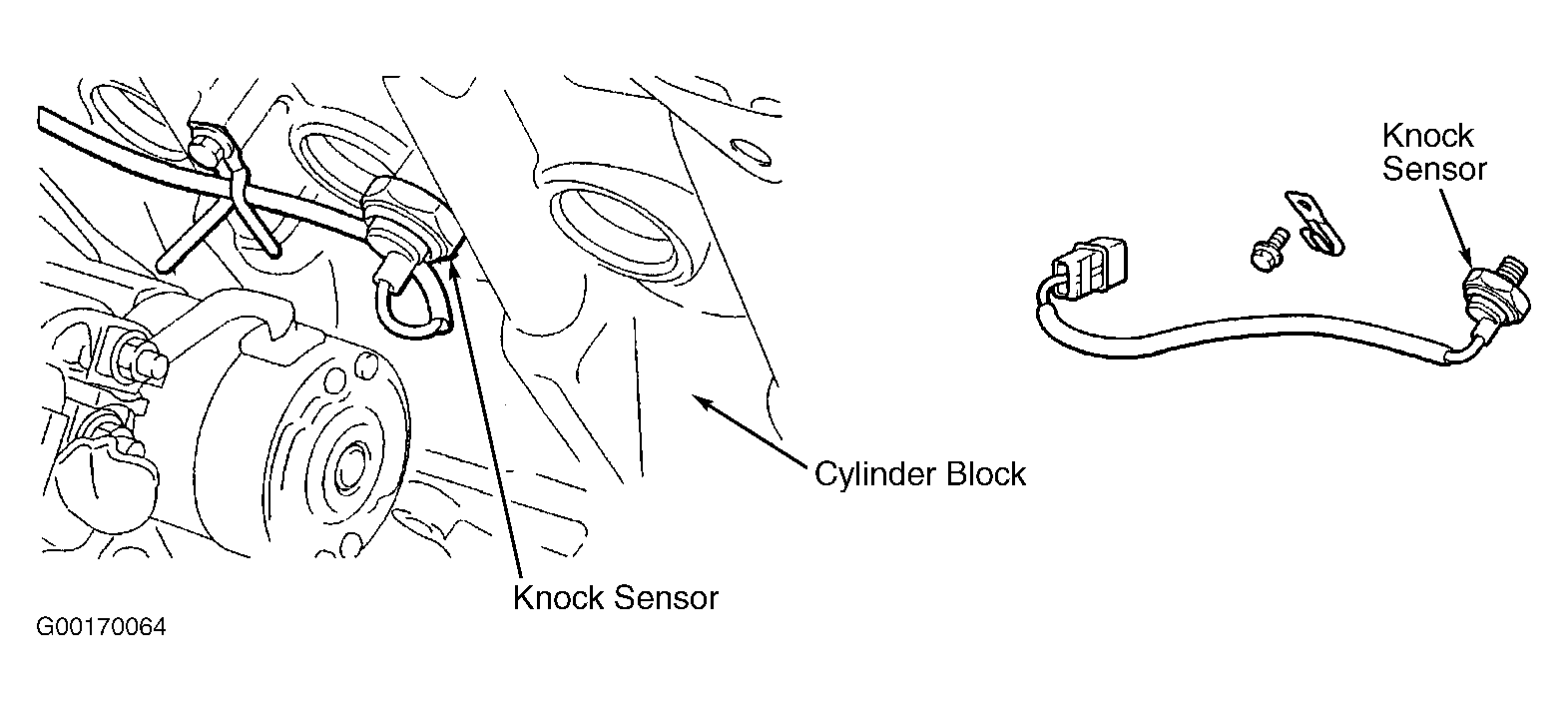

Fig 1: Removing/Installing Knock Sensor (Lancer)
G00170064Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
