DTC 15: Auto-Cruise Control Switch System
>>
Circuit Diagram
Circuit Diagram

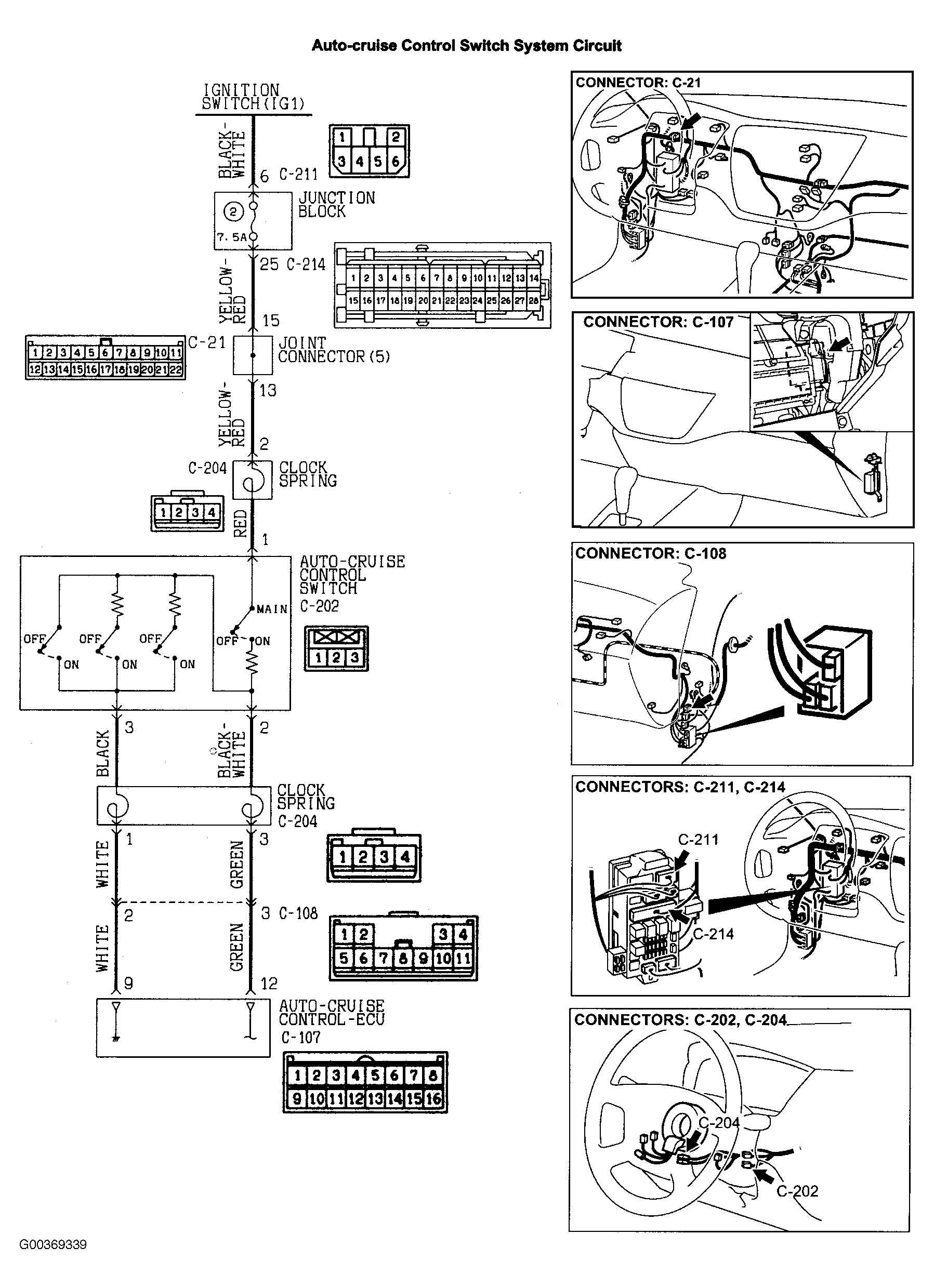

Fig 1: Auto-Cruise Control Switch System Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
