Transaxle Oil Replacement

  1. Remove the filler plug.

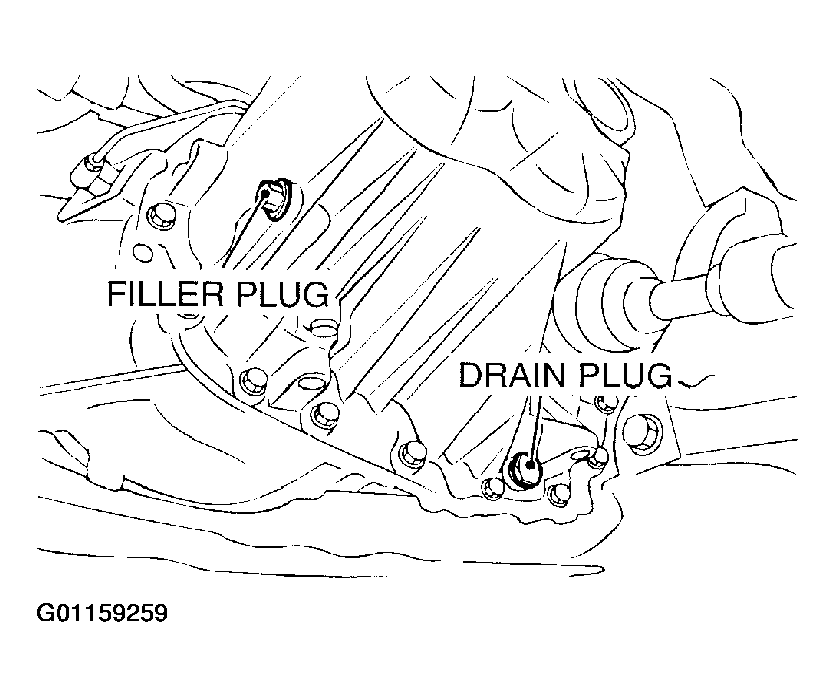

    Fig 1: Locating Transaxle Filler & Drain Plugs
    G01159259Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Remove the drain plug and drain the oil.
  3. Tighten the drain plug to the specified torque.

    Tightening torque: 32 +/- 2 N.m (24 +/- 1 ft-lb)

  4. Fill with gear oil SAE 75W - 90W or 75W - 85W conforming to API classification GL-4 until the level comes to the lower portion of filler plug hole.

    Quantity: 2.2 dm 3  (2.3 quarts)

  5. Tighten the filler plug to the specified torque.

    Tightening torque: 32 +/- 2 N.m (24 +/- 1 ft-lb)
