Power Window (Front LH) Circuit Connector End Views

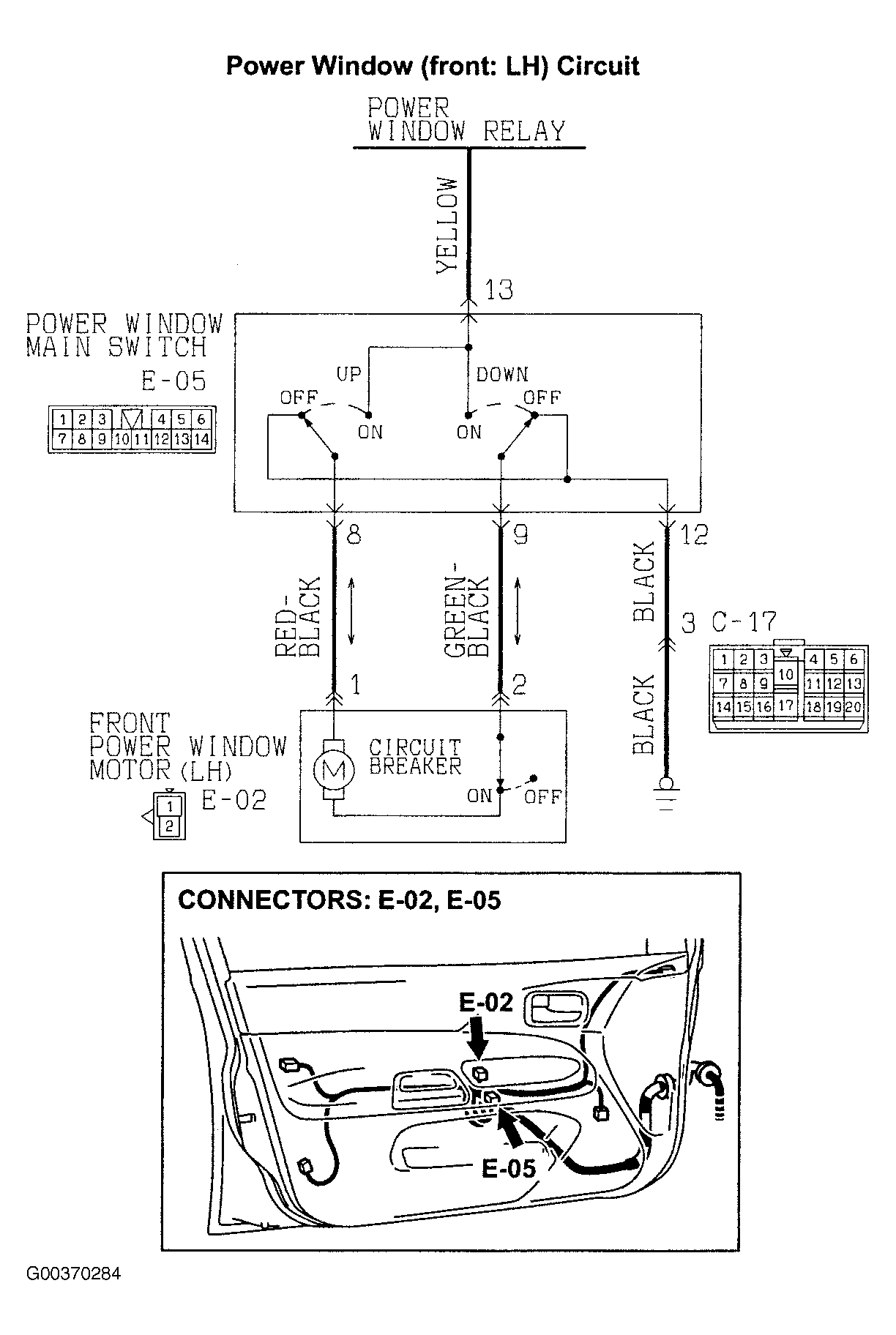

Fig 1: Power Window (Front LH) Circuit Connector End Views

G00370284

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
