Hi-Beam Indicator Light Circuit Connector End Views
Hi-Beam Indicator Light Circuit Connector End Views

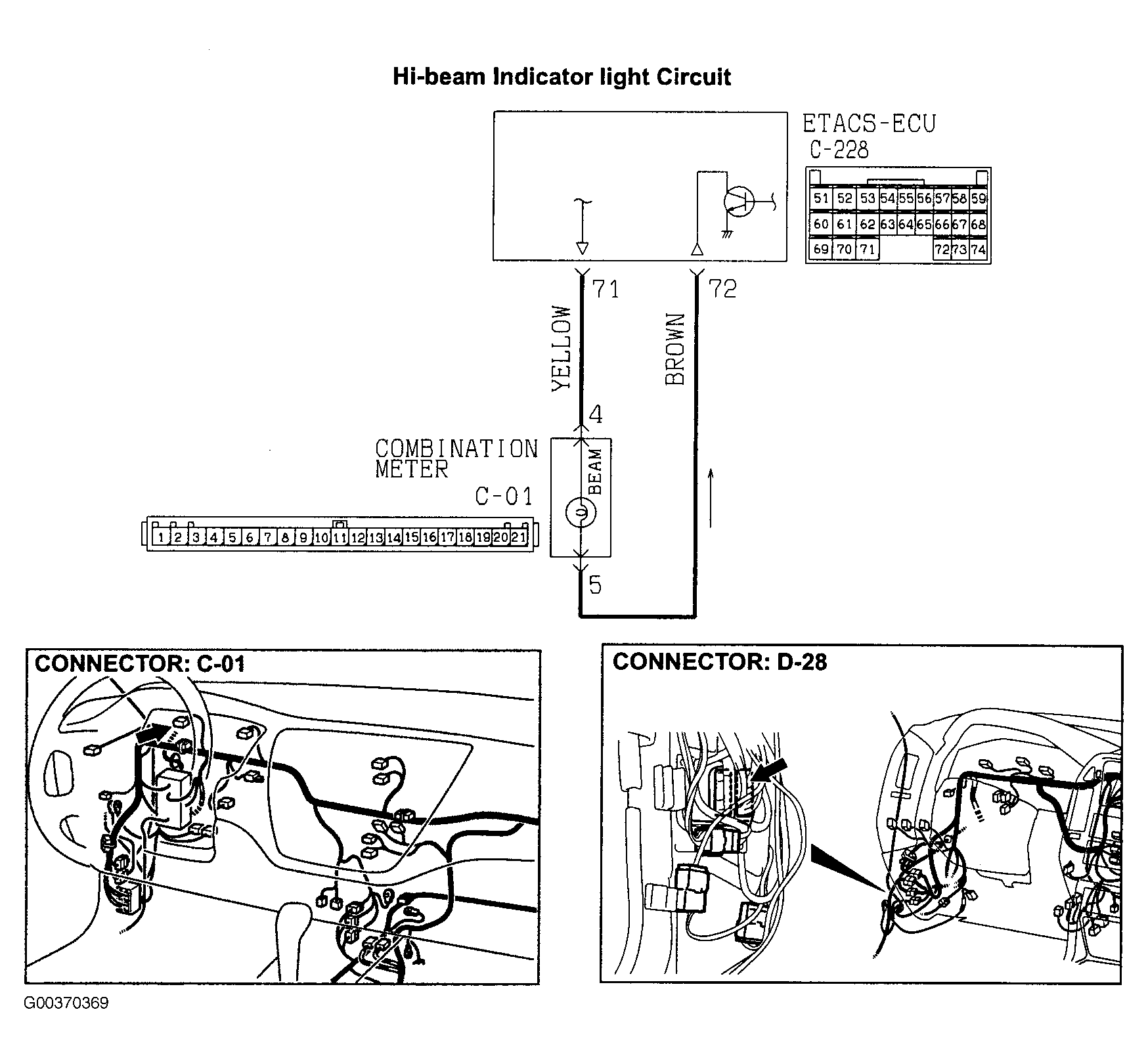

Fig 1: Hi-Beam Indicator Light Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
