Electronic Control Module Locations

See Fig 1.

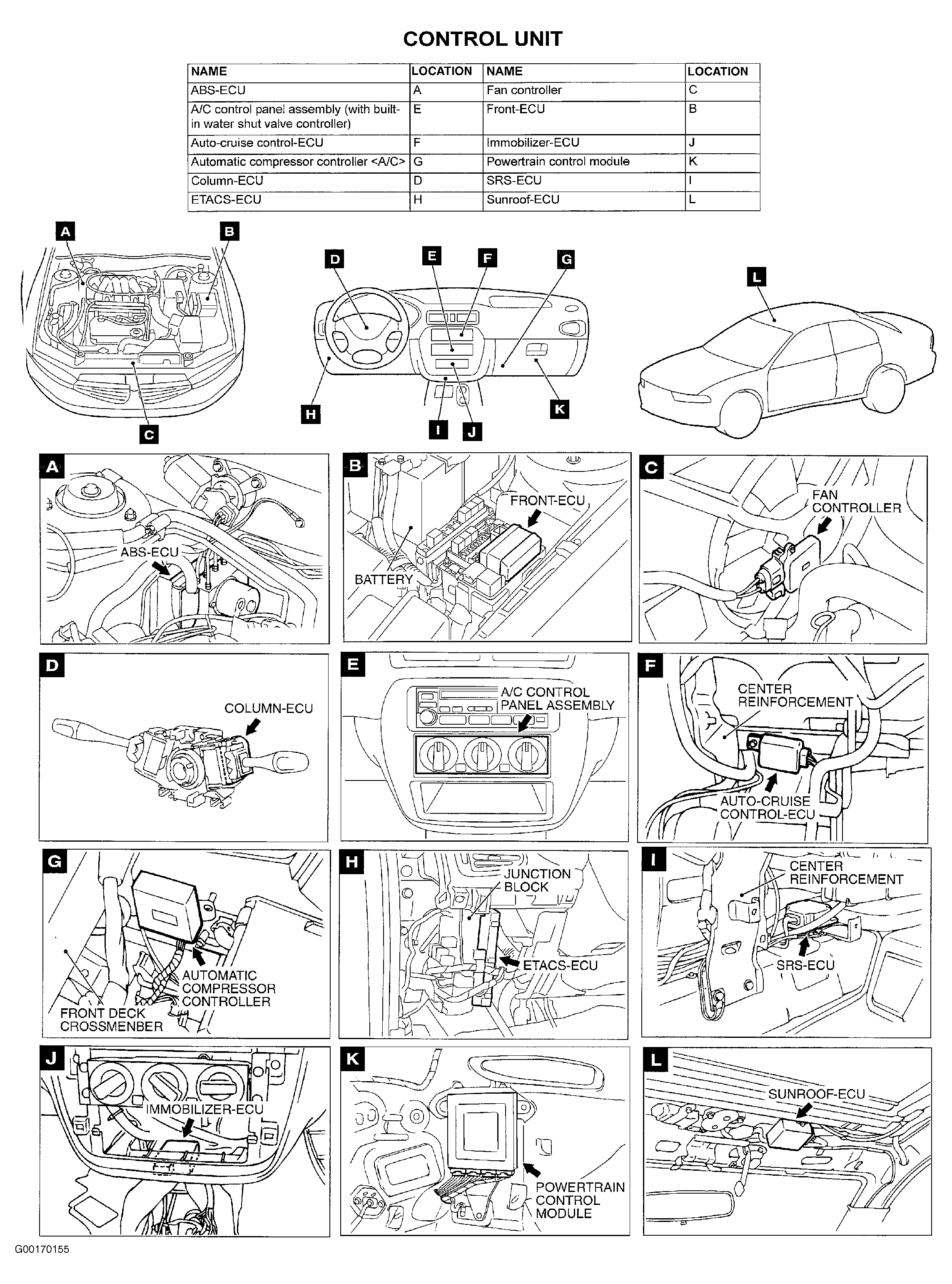

Fig 1: Locating Electronic Control Modules

G00170155

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
