Transaxle Oil Replacement

  1. Remove the filler plug.
  2. Remove the drain plug and drain the oil.
  3. Tighten the drain plug to the specified torque.
    1. Tightening torque: 32 +/- 2 N.m (24 +/- 1 ft-lb)
  4. Fill with gear oil SAE 75W - 90W or 75W - 85W conforming to API classification GL-4 until the level comes to the lower portion of filler plug hole.
    1. Quantity:
    2. < F5M42 > 2.2 dm3 (2.3 quarts)
    3. < F5M51 > 2.8 dm3 (3.0 quarts)
  5. Tighten the filler plug to the specified torque.
    1. Tightening torque: 32 +/- 2 N.m (24 +/- 1 ft-lb)

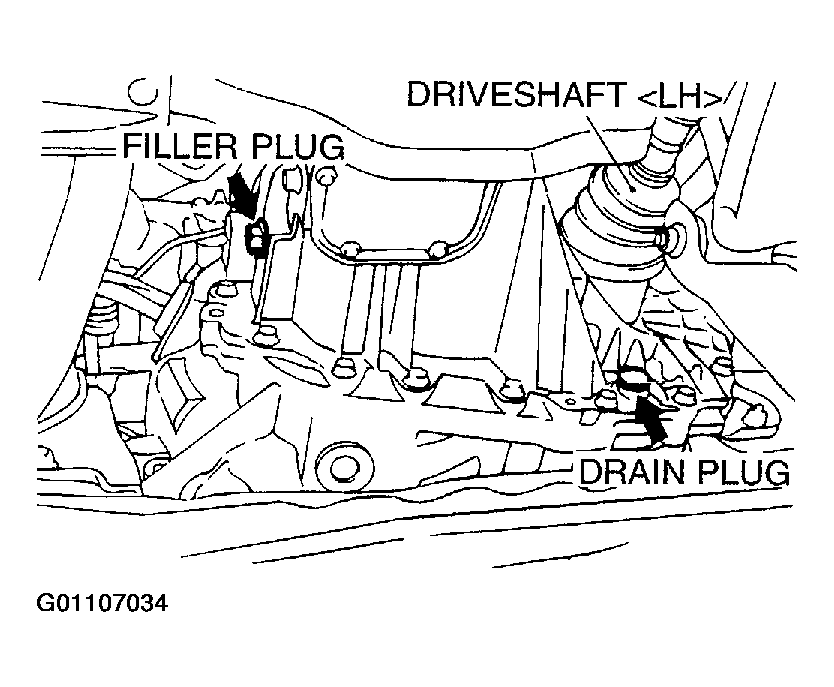

    Fig 1: Locating Filler Plug & Drain Plug
    G01107034Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
