Lubrication And Sealing Points: Notes

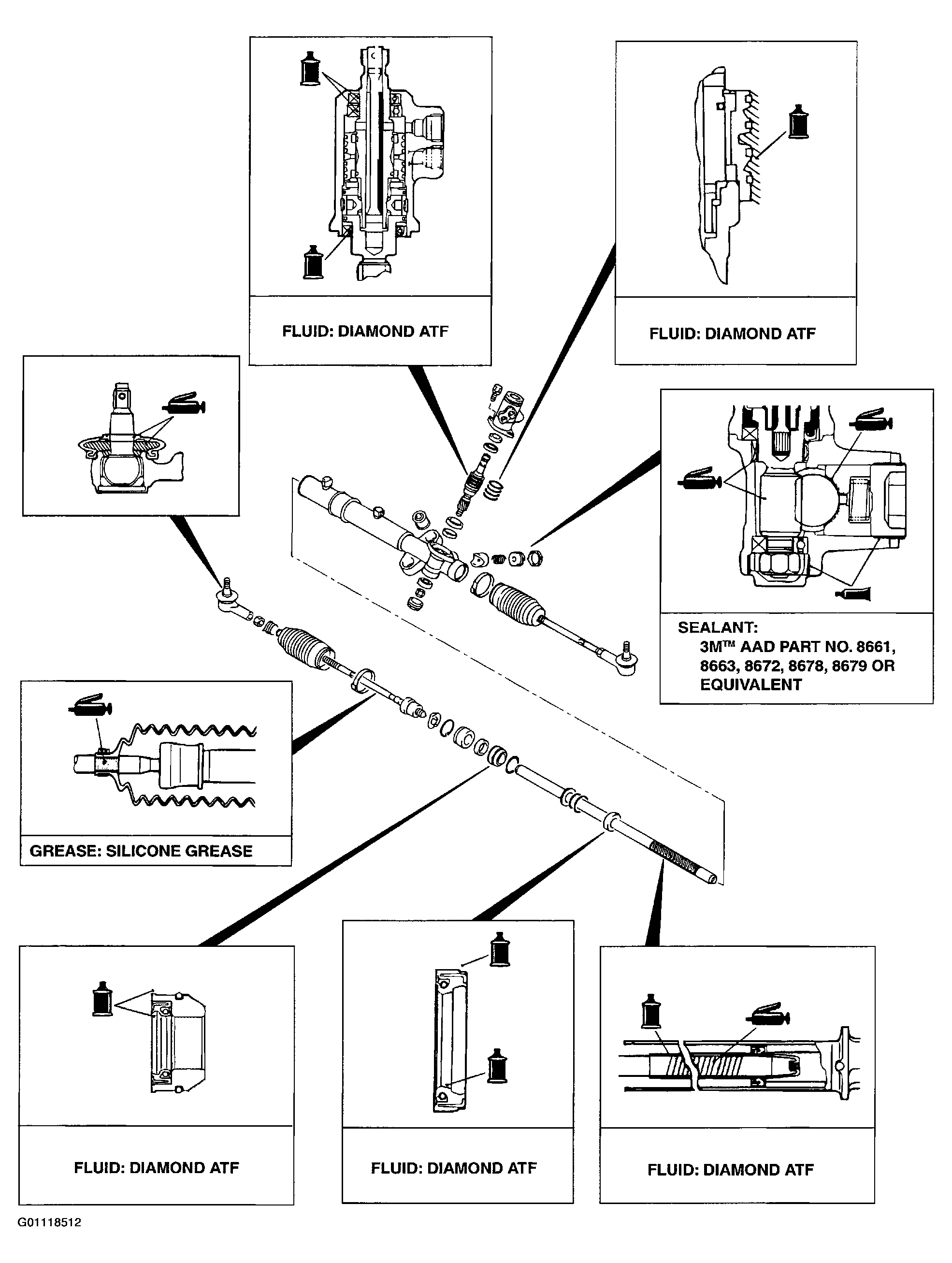

Fig 1: Identifying Lubrication & Sealing Points

G01118512

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
