Data List Reference Table

The following items can be read by the scan tool from the ABS-ECU input data.

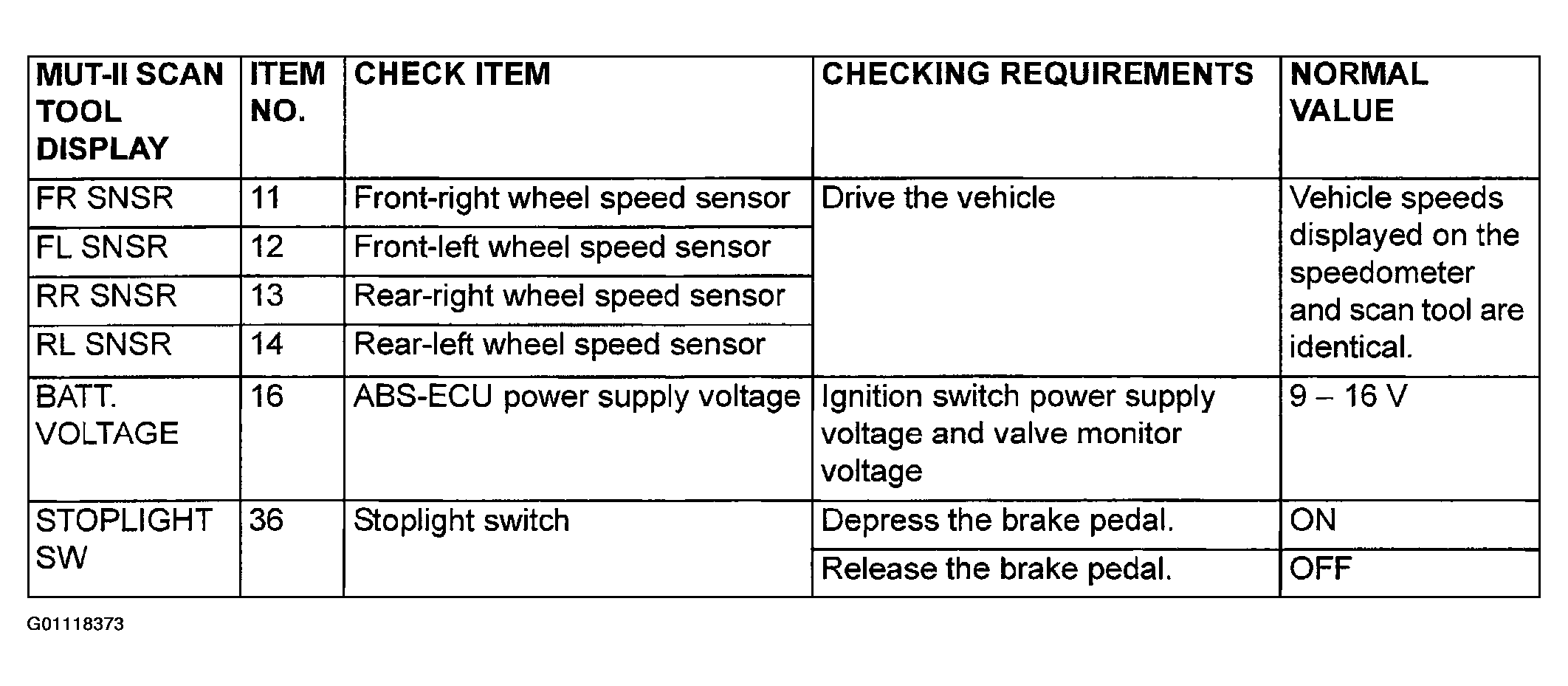

Fig 1: Data List Reference Table

G01118373

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
