Power Window Main Switch Check

Fig 1: Identifying Power Window Main Switch Terminals (Eclipse)
G02195674Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

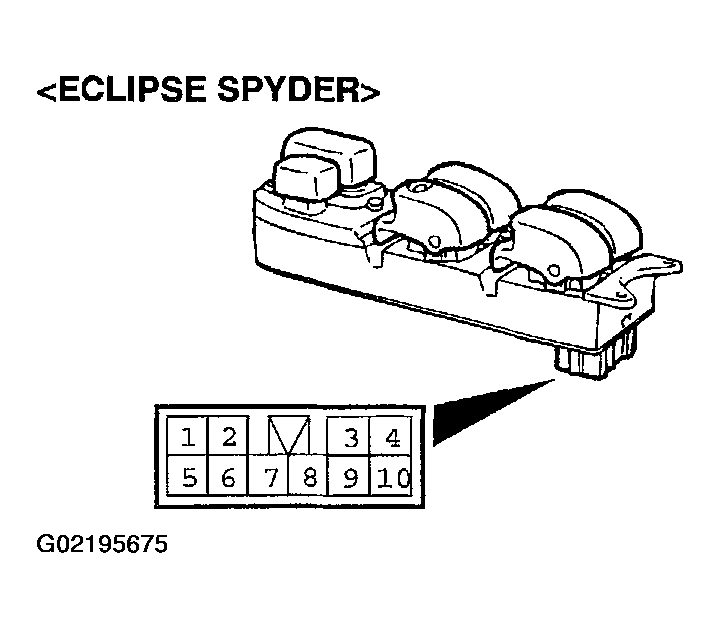

Fig 2: Identifying Power Window Main Switch Terminals (Eclipse Spyder)
G02195675Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

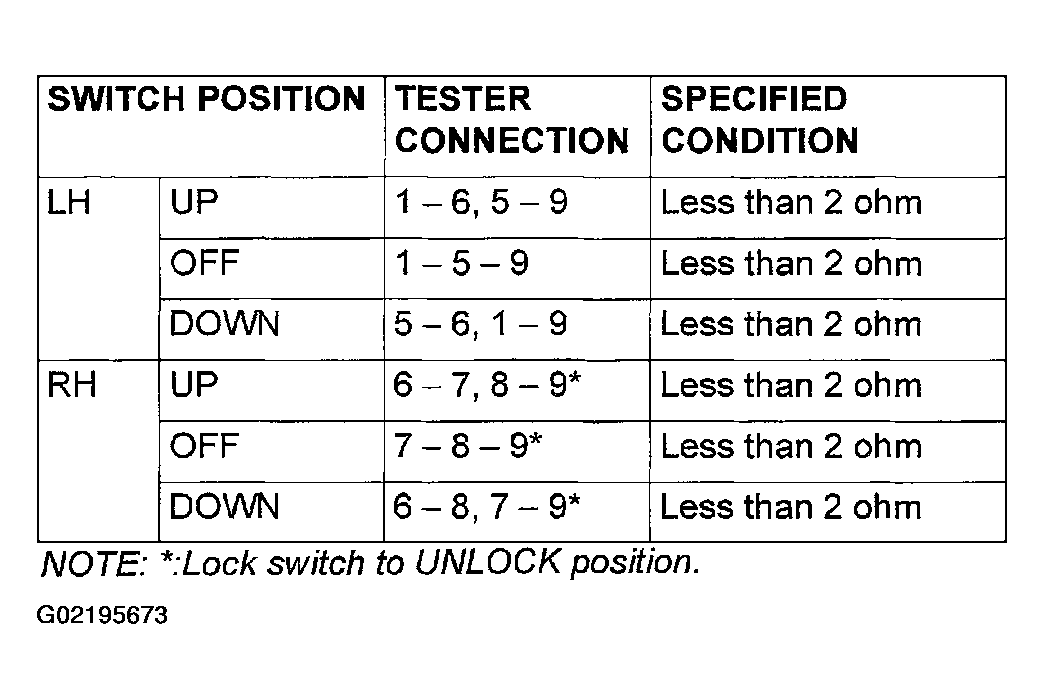

Fig 3: Power Window Main Switch Continuity
G02195673Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
