Park/Neutral Position Switch Continuity Check

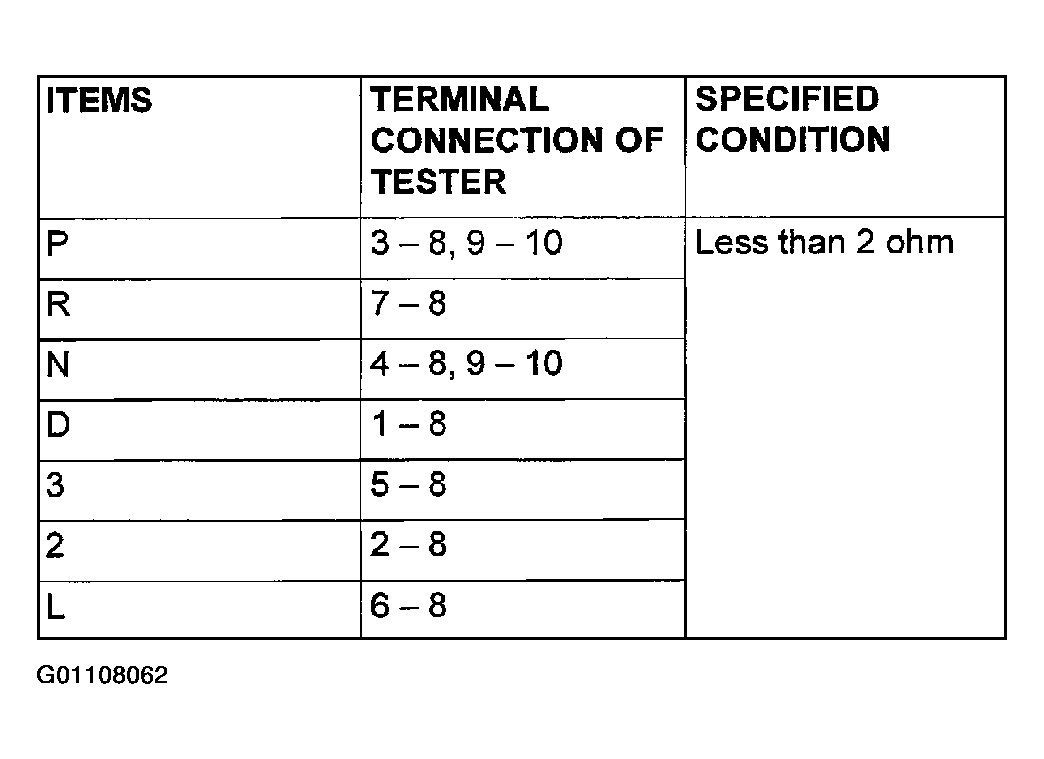

Fig 1: Park/Neutral Position Switch Continuity Check

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For vehicles with sport mode, four positions (P, R, N, D) are used.

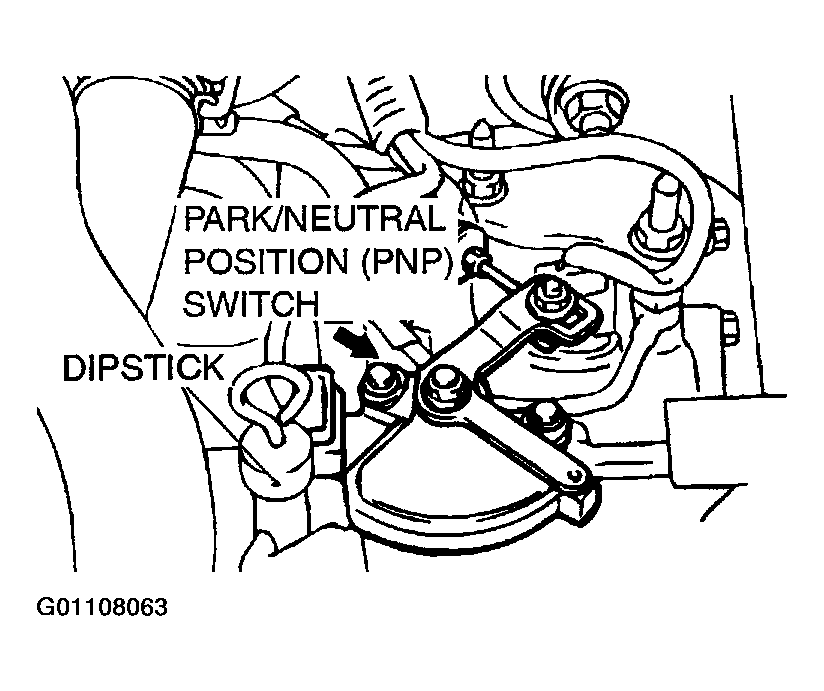

Fig 2: Locating Park/Neutral Position Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

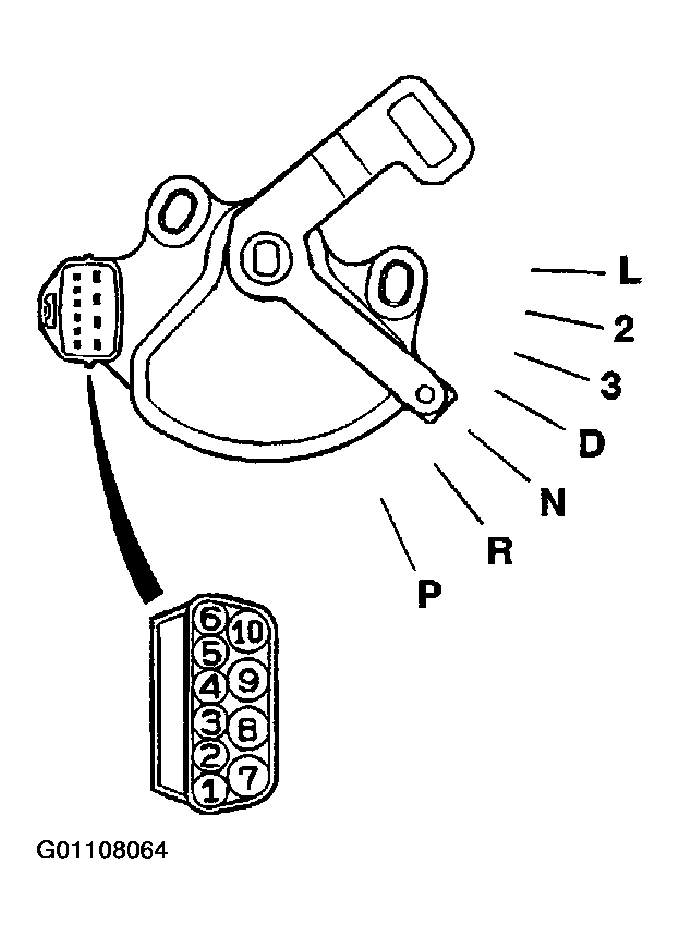

Fig 3: Identifying Park/Neutral Position Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
