Corrected Keyless Entry Descriptions - Revision (TSB-00-42A-009)

CORRECTED KEYLESS ENTRY DESCRIPTIONS - REVISION

TECHNICAL SERVICE BULLETIN

CORRECTED KEYLESS ENTRY DESCRIPTIONS - SERVICE MANUAL REVISION

Model(s): 2000 Mitsubishi Montero Sport

Group: 42 - Body

Bulletin No.: TSB-00-42A-009

Date: November, 2000

PURPOSE

This bulletin contains corrected and revised descriptions, references, and troubleshooting information relating to the factory-installed keyless entry system on the 2000 Montero Sport.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES

2000 Montero Sport

AFFECTED SERVICE MANUALS

2000 Montero Sport Service Manual, Pages 42-77, 78, 79, 80, 81, 82.

SERVICE MANUAL REVISIONS

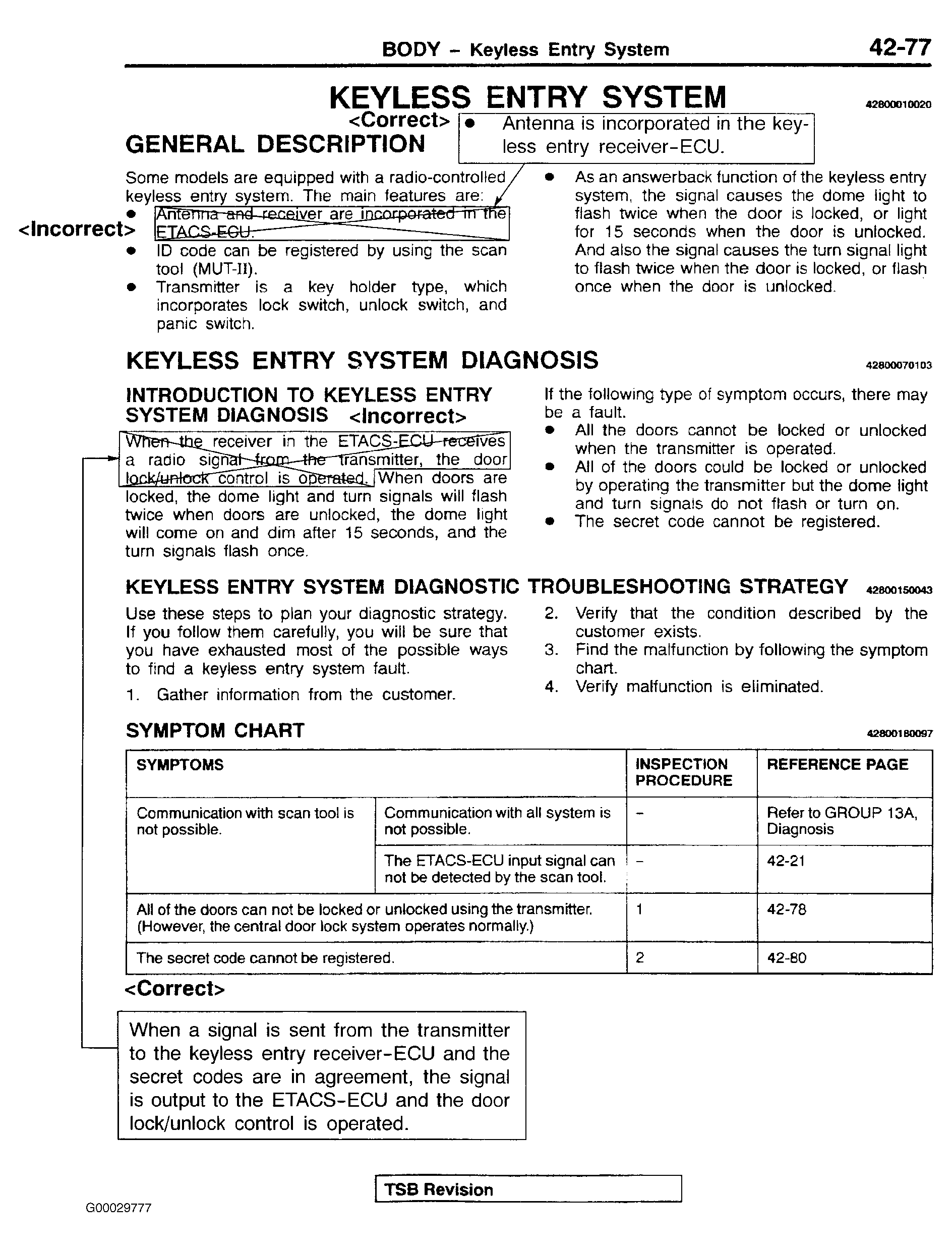

2000 Montero Sport Service Manual, Page 42-77. Correct the description of the antenna location as shown in Fig 1 .

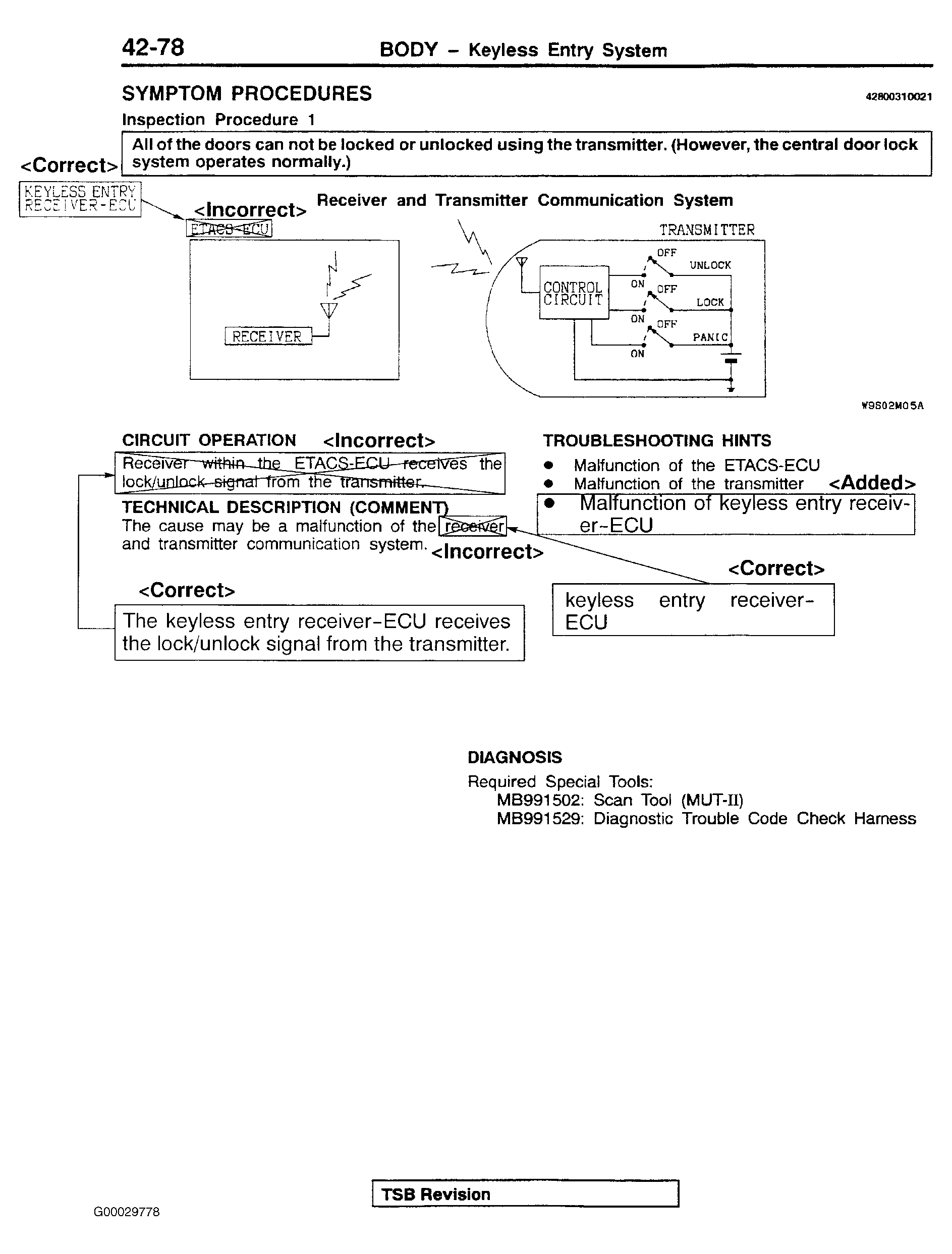

2000 Montero Sport Service Manual, Page 42-78. Correct the troubleshooting procedures as shown in Fig 2 .

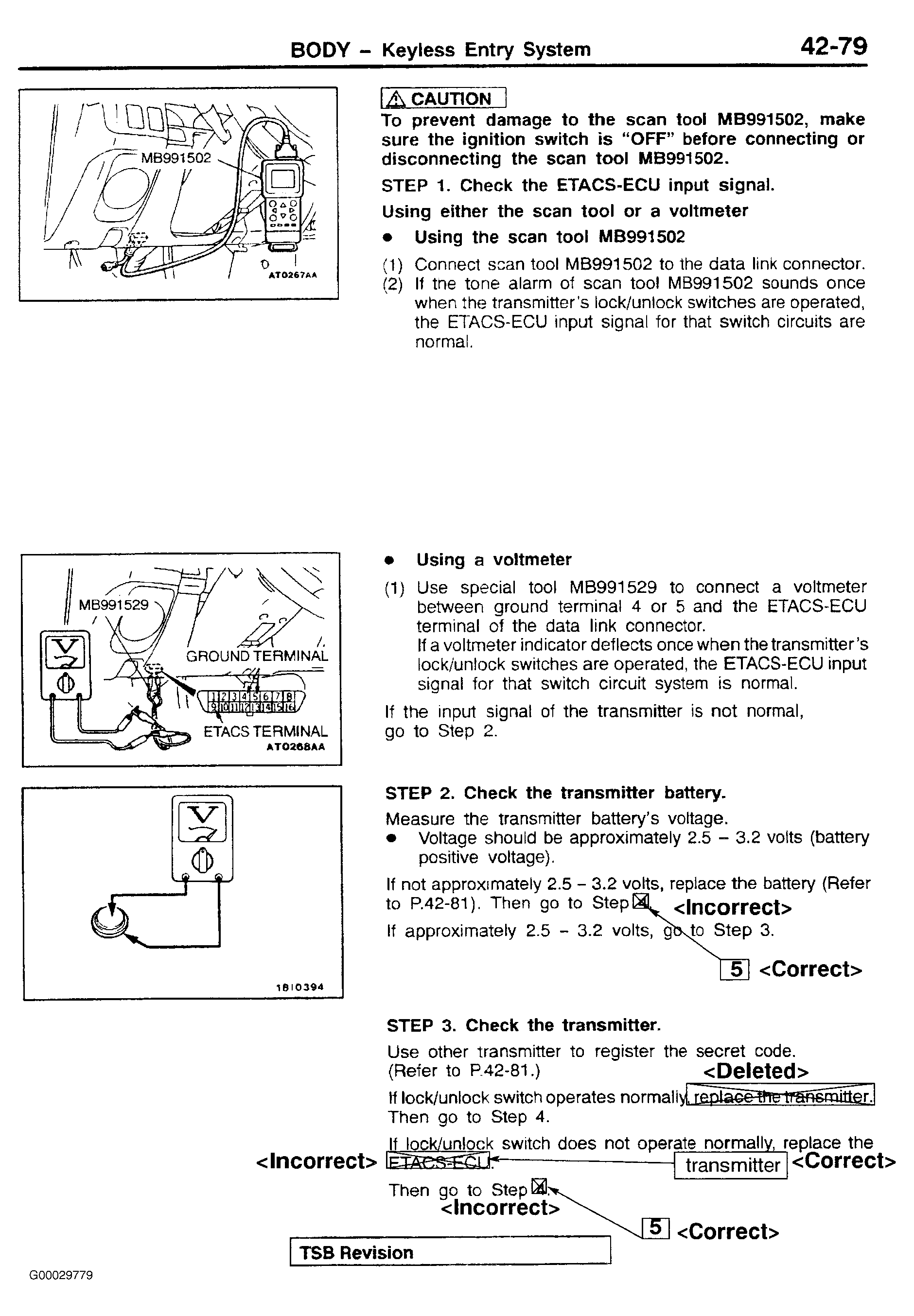

2000 Montero Sport Service Manual, Page 42-79. Correct the reference steps as shown in Fig 3 .

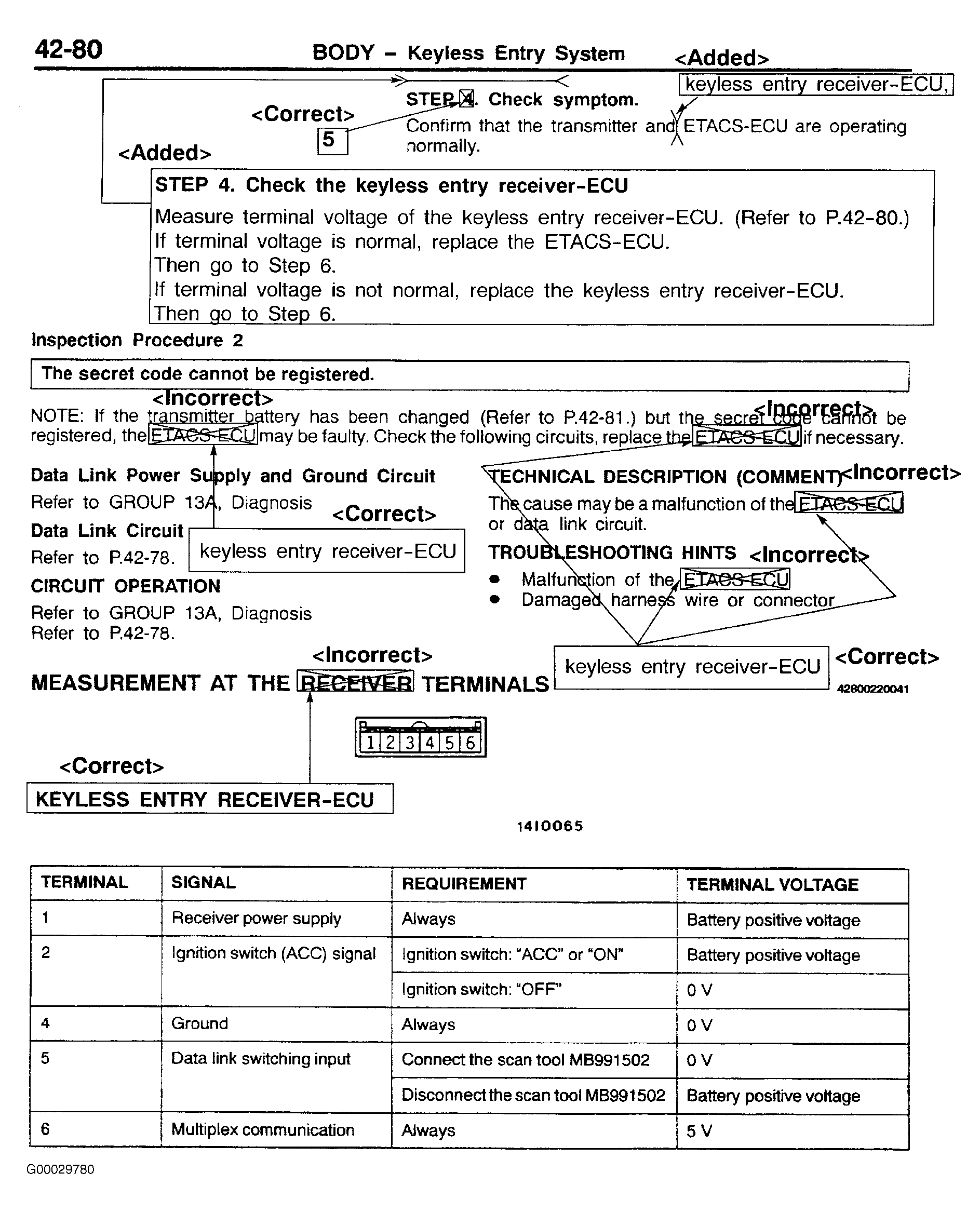

2000 Montero Sport Service Manual, Page 42-80. Correct the troubleshooting steps, descriptions and references as shown in Fig 4 .

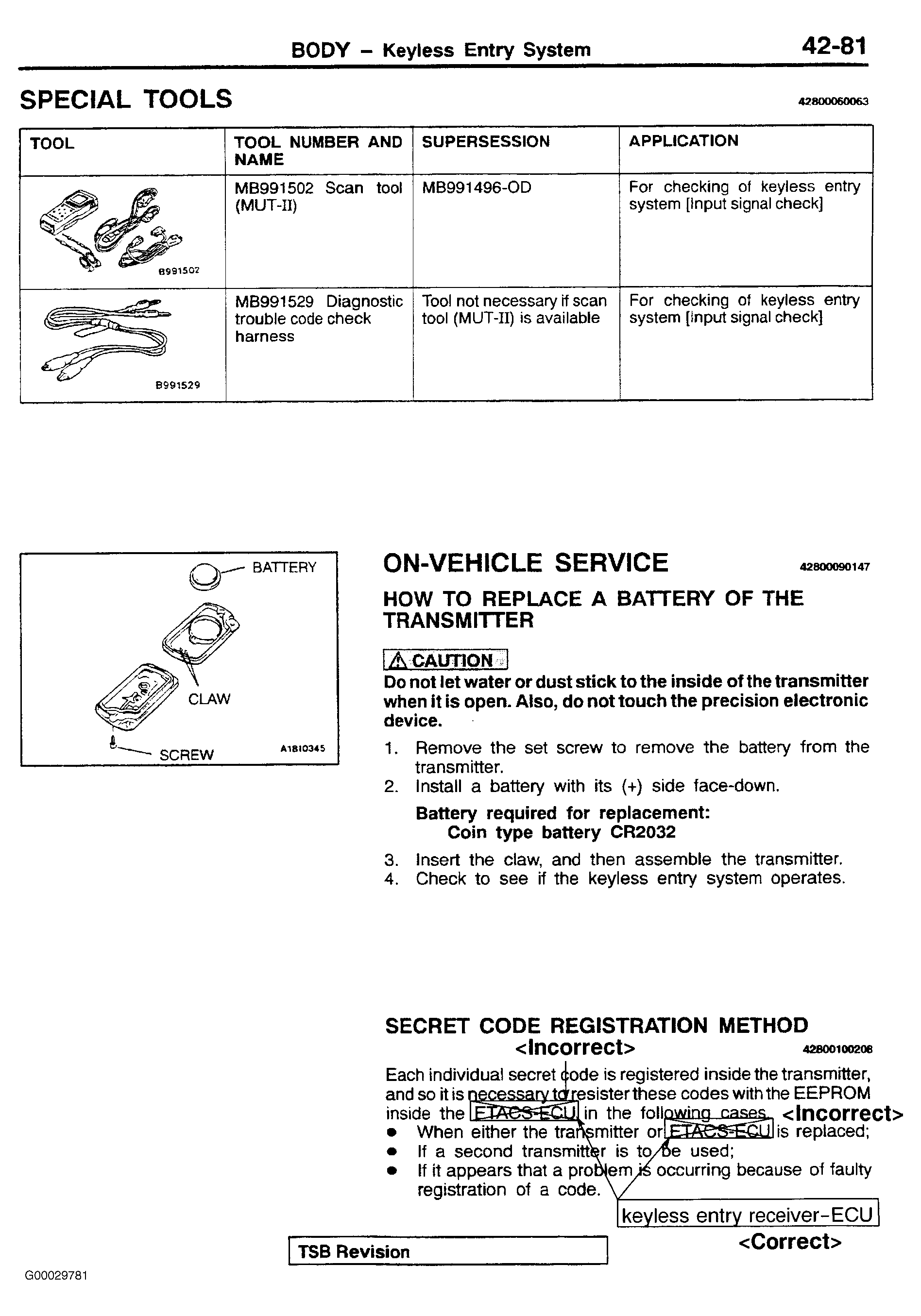

2000 Montero Sport Service Manual, Page 42-81. Correct the keyless entry descriptions as shown in Fig 5 .

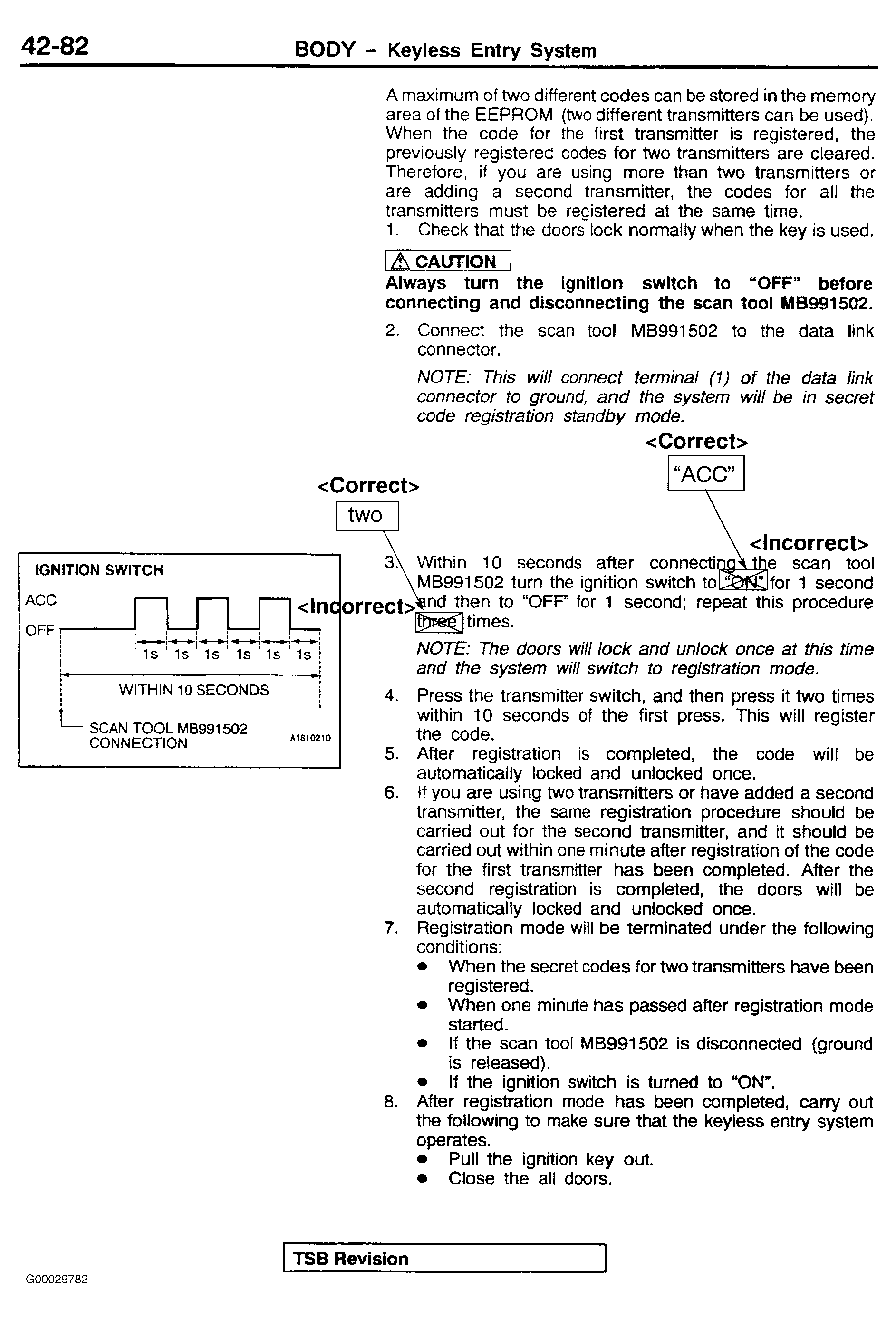

2000 Montero Sport Service Manual, Page 42-82. Correct the keyless entry description as shown in Fig 6 .
