Pin Voltage Tests

WARNING: This page is about a different car, the 2002 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

For auto-cruise control-ECU pin voltage tests, see Fig 1 and Fig 2 .

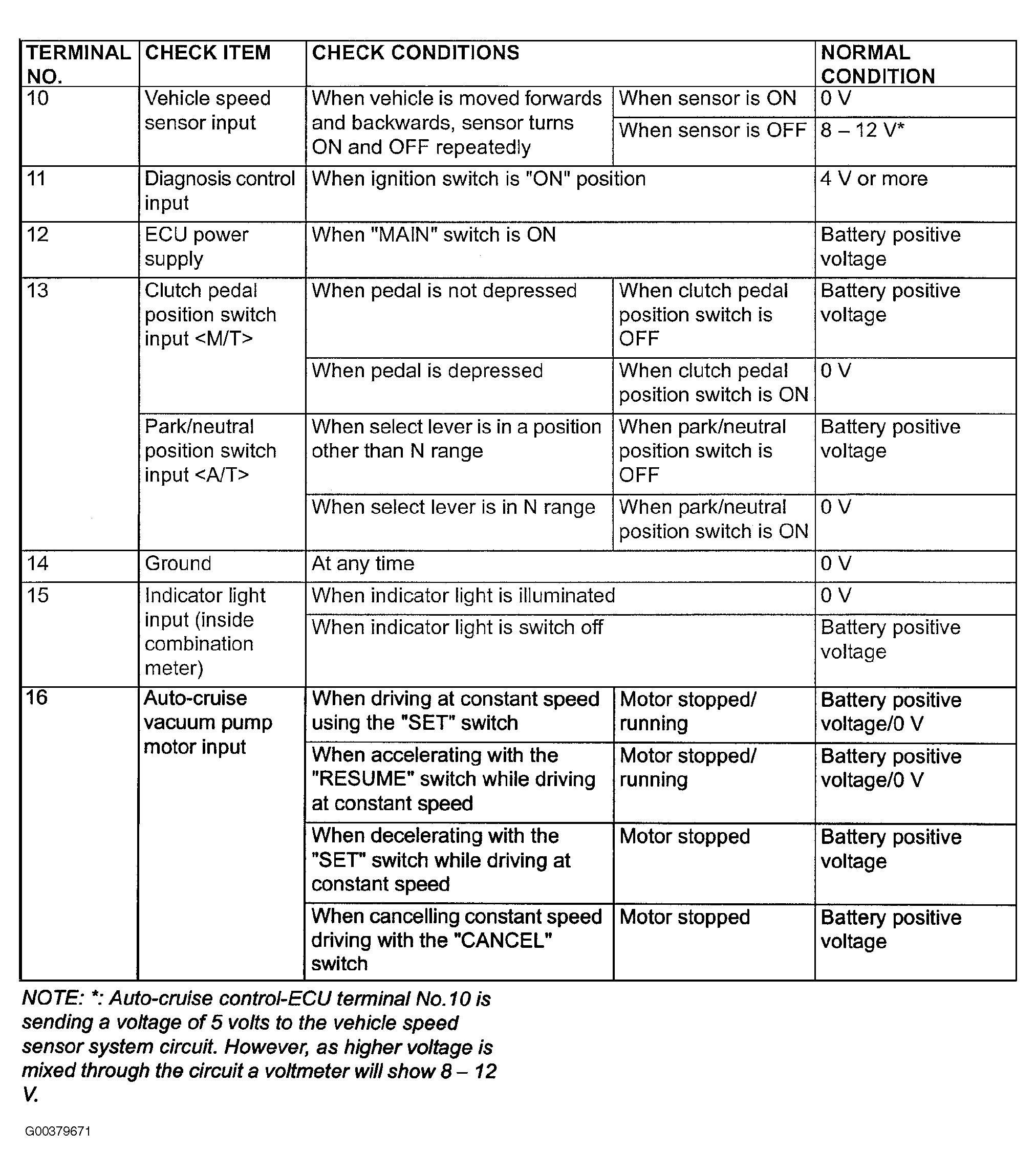

Fig 1: ECU Pin Voltage Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

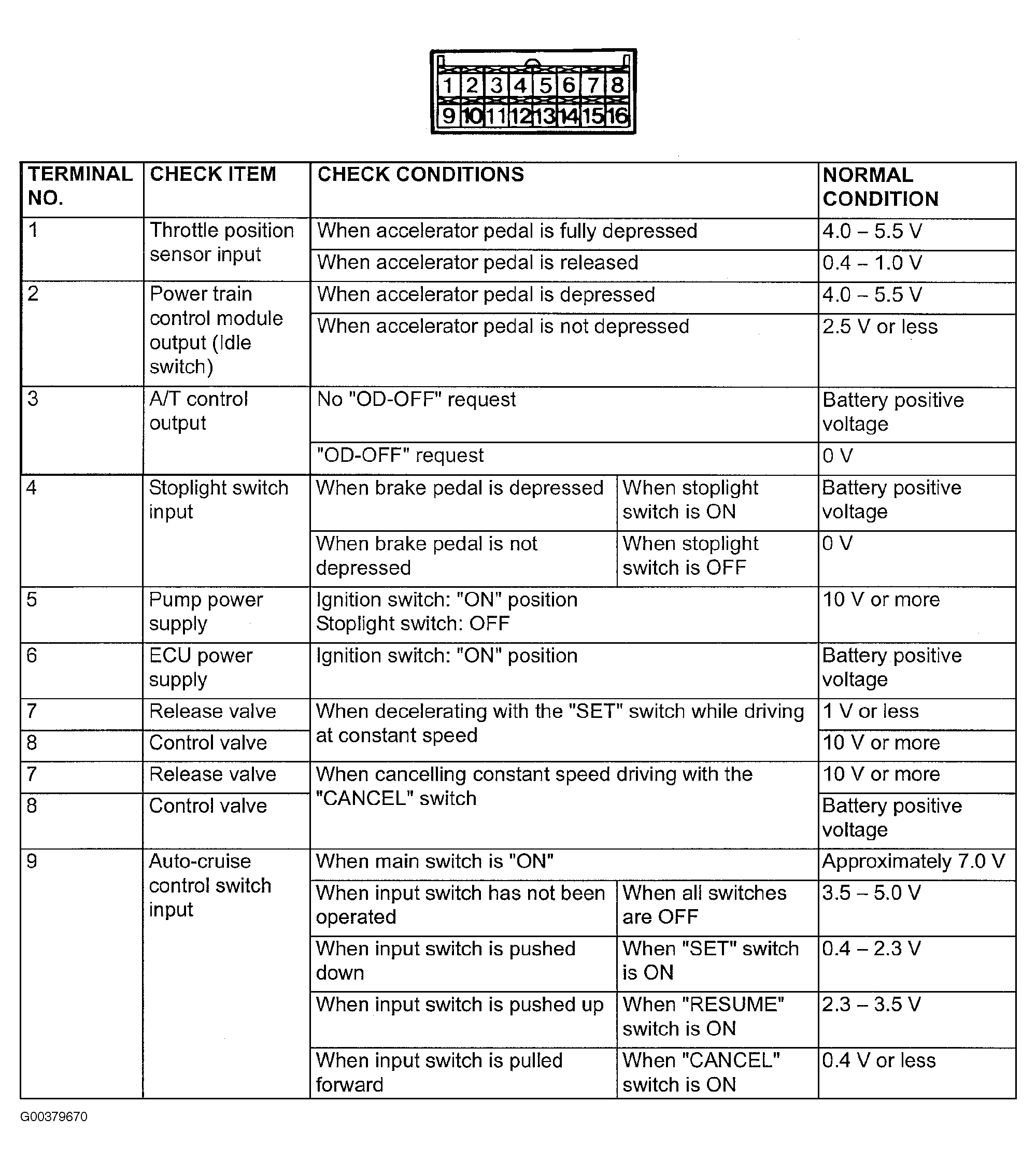

Fig 2: ECU Pin Voltage Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
