Dr-12A: Code 42, Testing Fuel Pump Sense (2.4L Only)

Fig 1: Test DR-12A Schematic - Code 42 (2.4L) Testing Fuel Pump Sense

G92C26023

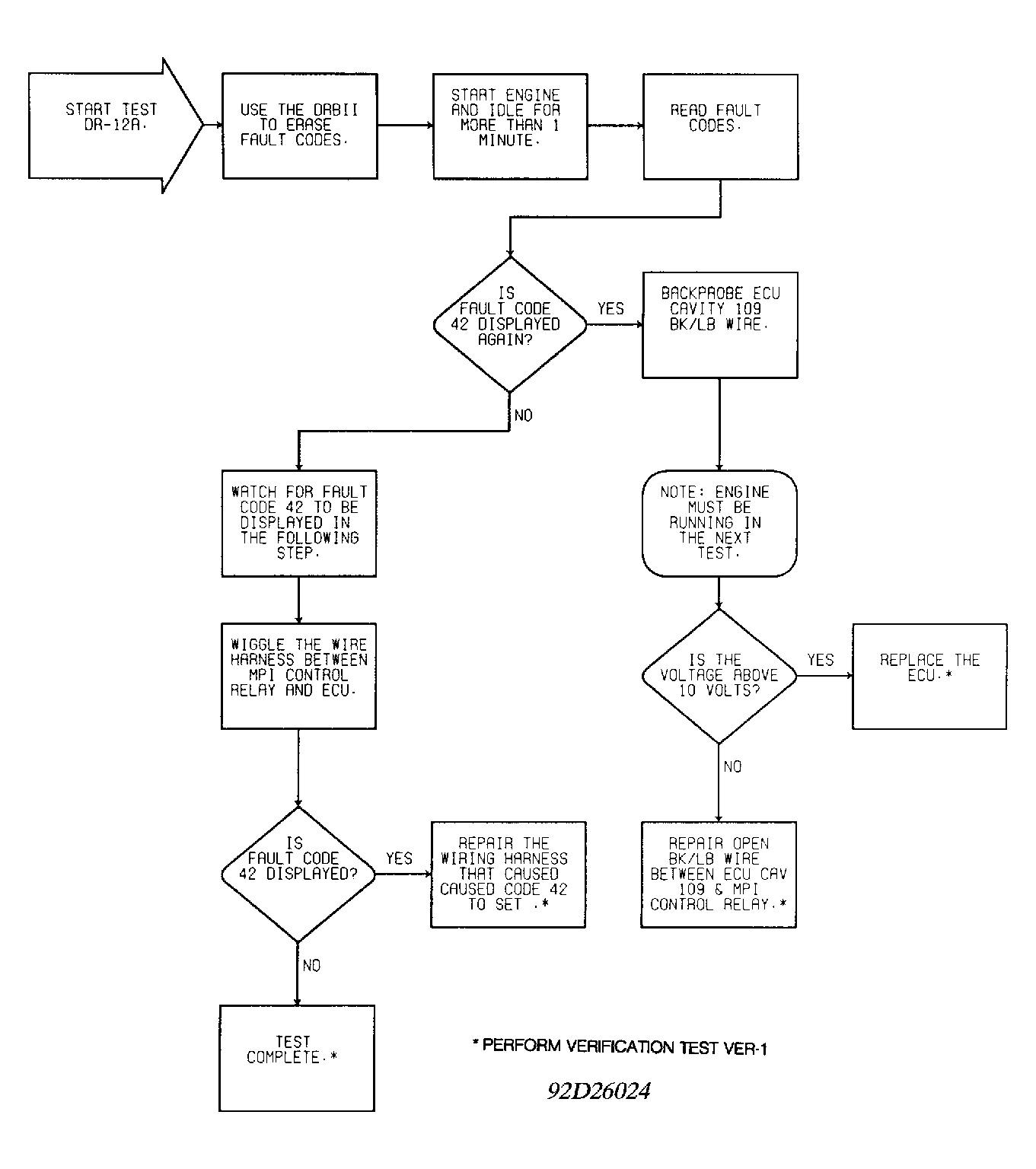

Fig 2: Test DR-12A Flow Chart - Code 42 (2.4L) Testing Fuel Pump Sense

G92D26024
