NS-5: Testing Fuel Pump Circuit

Fig 1: Test NS-5 Schematic - SOHC Testing Fuel Pump Circuit
G92B26048

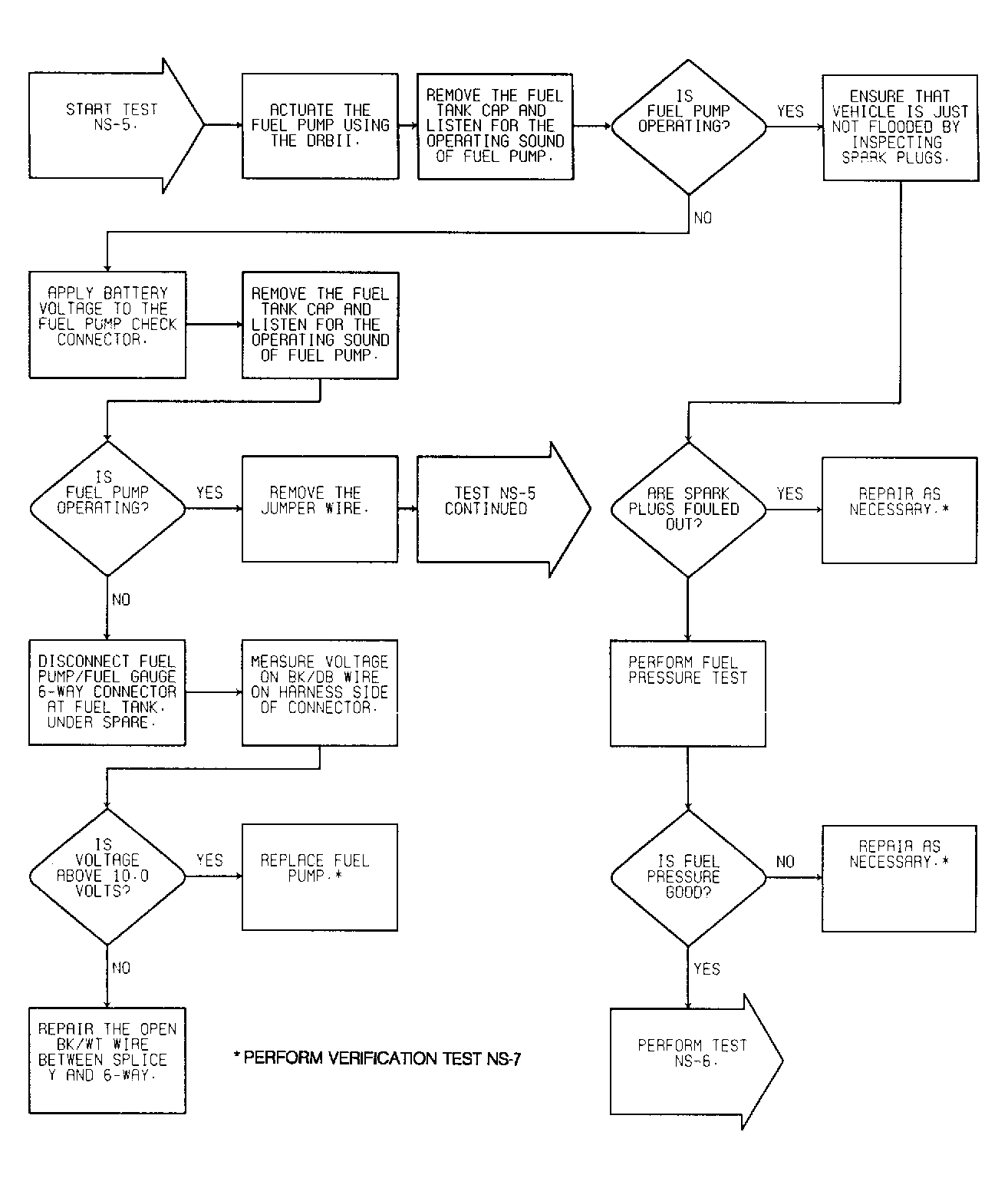

Fig 2: Test NS-5 Flow Chart - SOHC (1 Of 2) Testing Fuel Pump Circuit
G92C26049

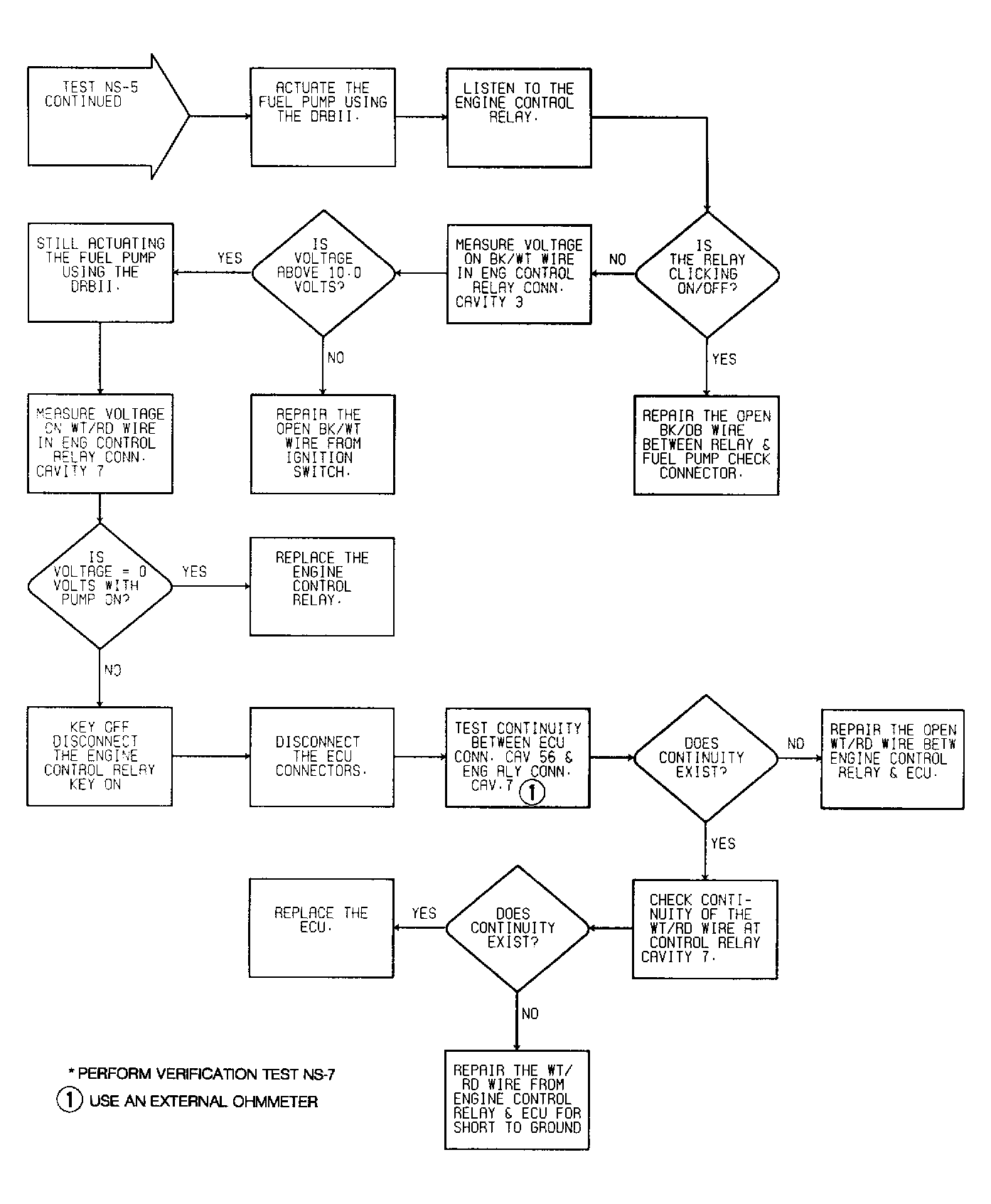

Fig 3: Test NS-5 Flow Chart - SOHC (2 Of 2) Testing Fuel Pump Circuit
G92G26050
