Dr-9: Code 23, Top Dead Center Sensor Circuit

Fig 1: Test DR-9 Schematic - Code 23 - SOHC Top Dead Center Sensor Circuit

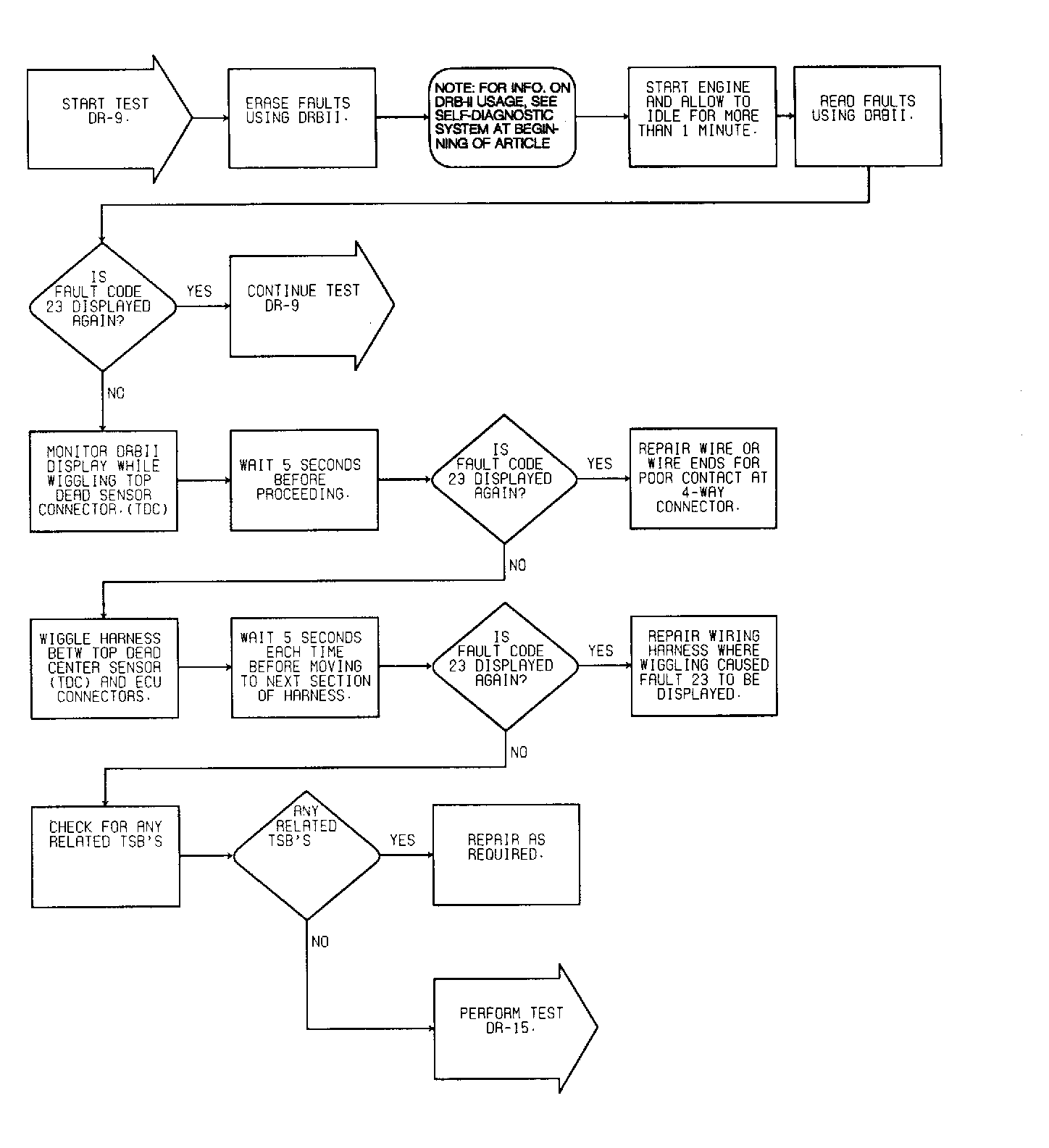

Fig 2: Test DR-9 Flow Chart - Code 23 - SOHC (1 Of 2) Top Dead Center Sensor Circuit

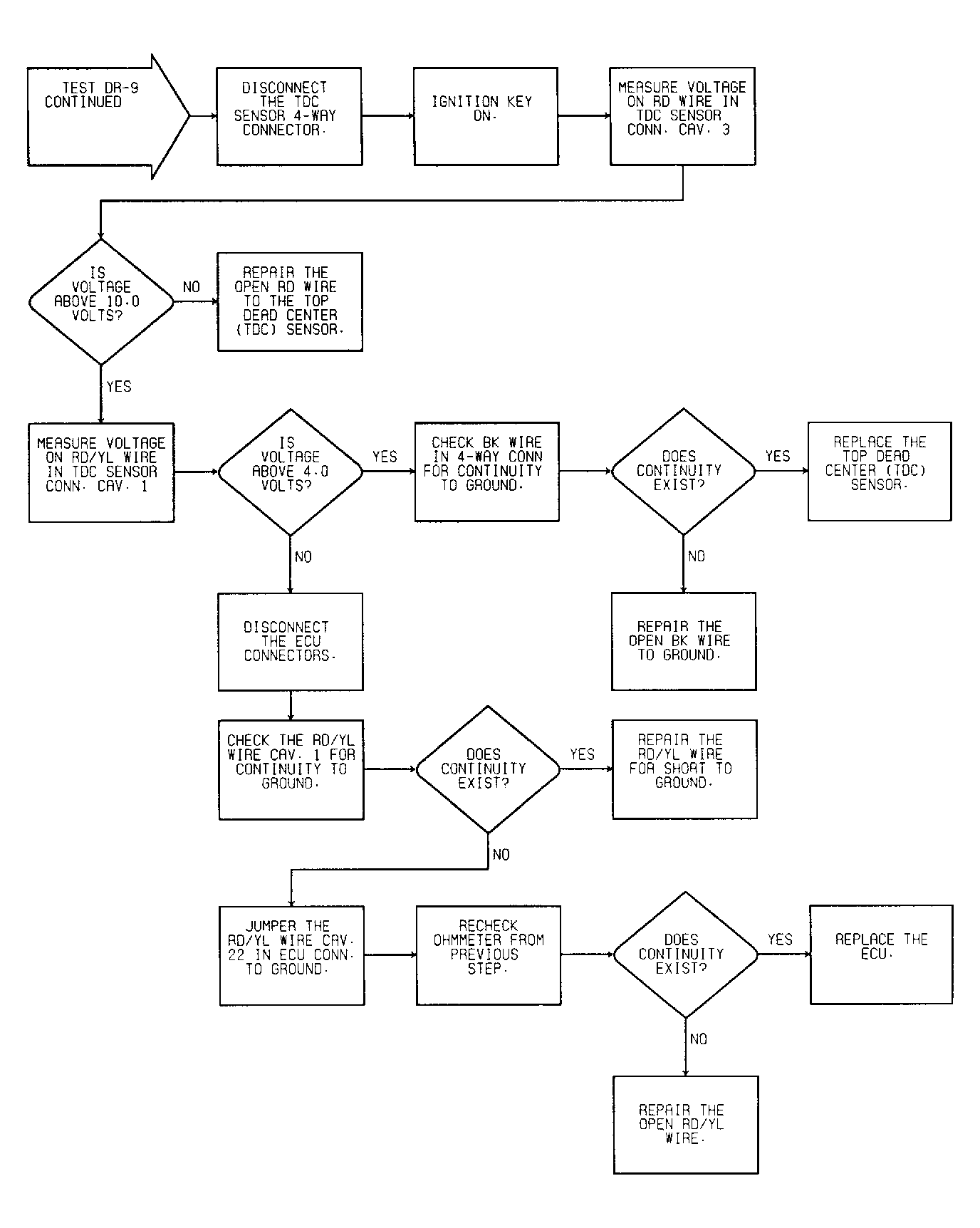

Fig 3: Test DR-9 Flow Chart - Code 23 - SOHC (2 Of 2) Top Dead Center Sensor Circuit
