Dr-8: Code 23, Top Dead Center Sensor Circuit

Fig 1: Test DR-8 Schematic - Code 23 - DOHC Top Dead Center Sensor Circuit

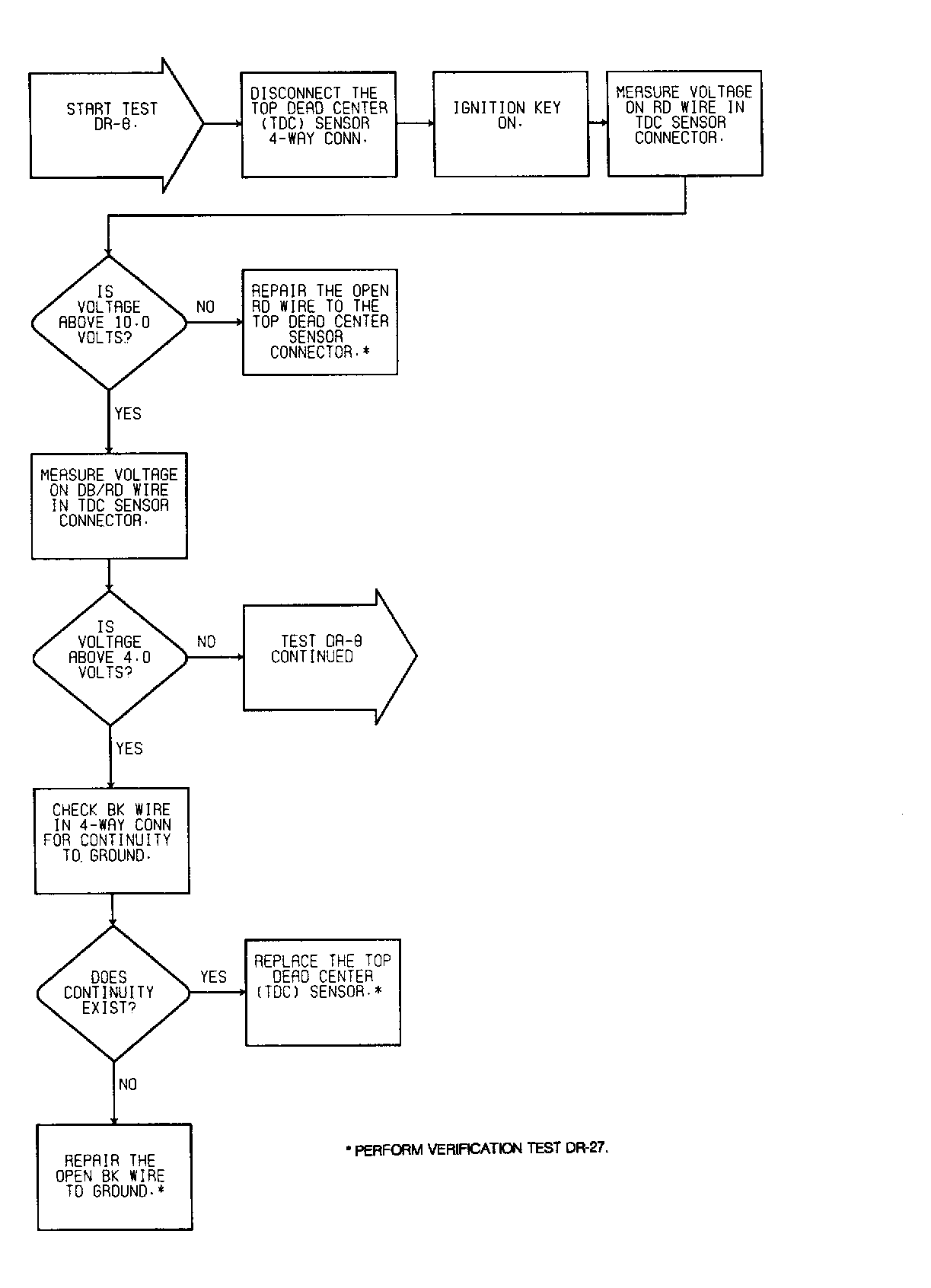

Fig 2: Test DR-8 Flow Chart - Code 23 - DOHC (1 Of 2) Top Dead Center Sensor Circuit

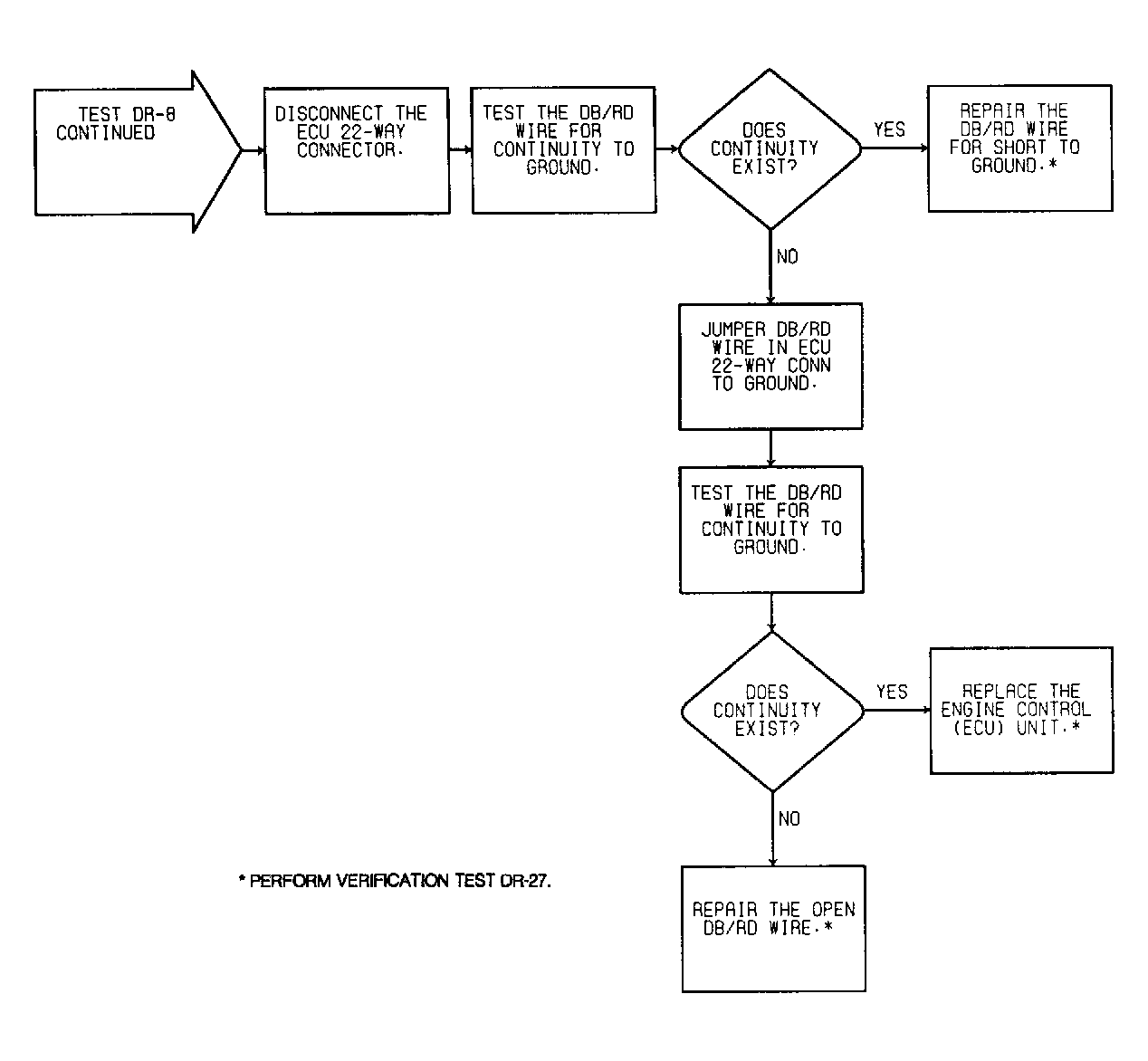

Fig 3: Test DR-8 Flow Chart - Code 23 - DOHC (2 Of 2) Top Dead Center Sensor Circuit
