Dr-7: Code 22, Crank Angle Sensor Circuit

Fig 1: Test DR-7 Schematic - Code 22 - DOHC Crank Angle Sensor Circuit
G92A26351

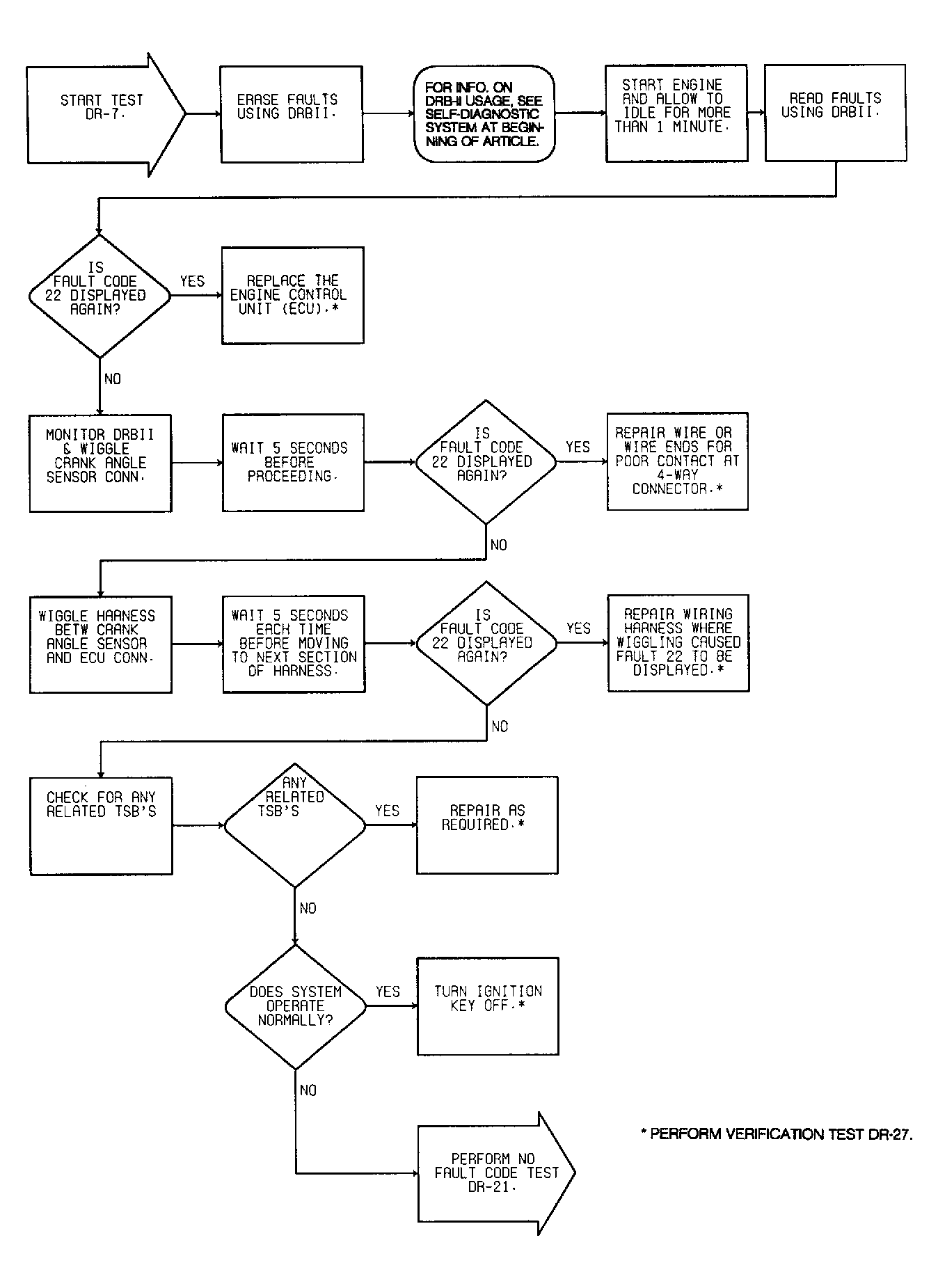

Fig 2: Test DR-7 Flow Chart - Code 22 - DOHC Crank Angle Sensor Circuit.
G92B26352
