Dr-22: No Fault Code Sensor Tests

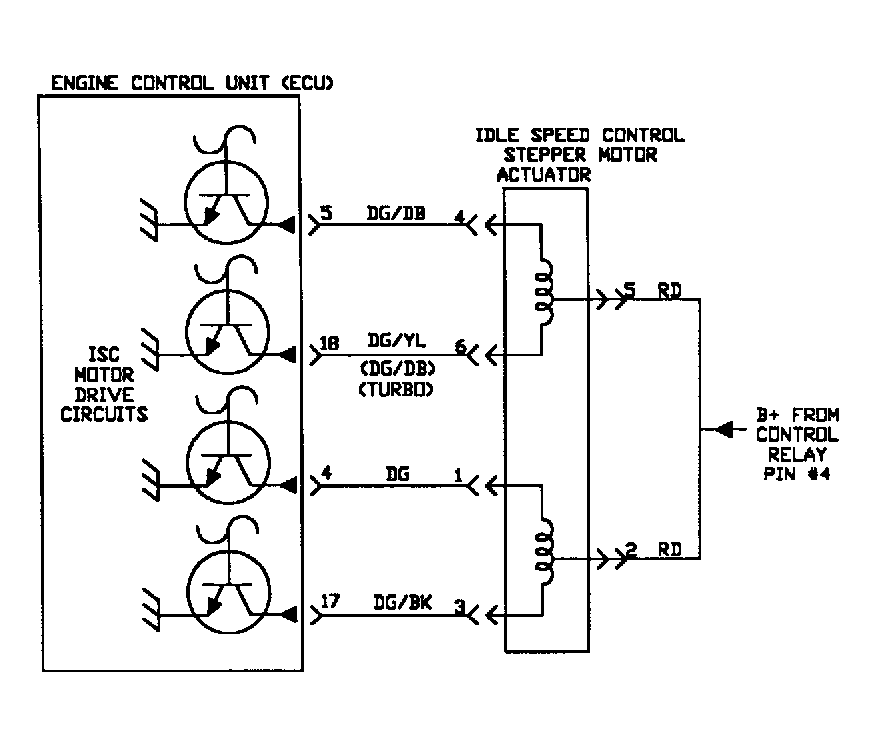

Fig 1: Test DR-22 Schematic - DOHC No Fault Code Sensor Tests
G92J26418

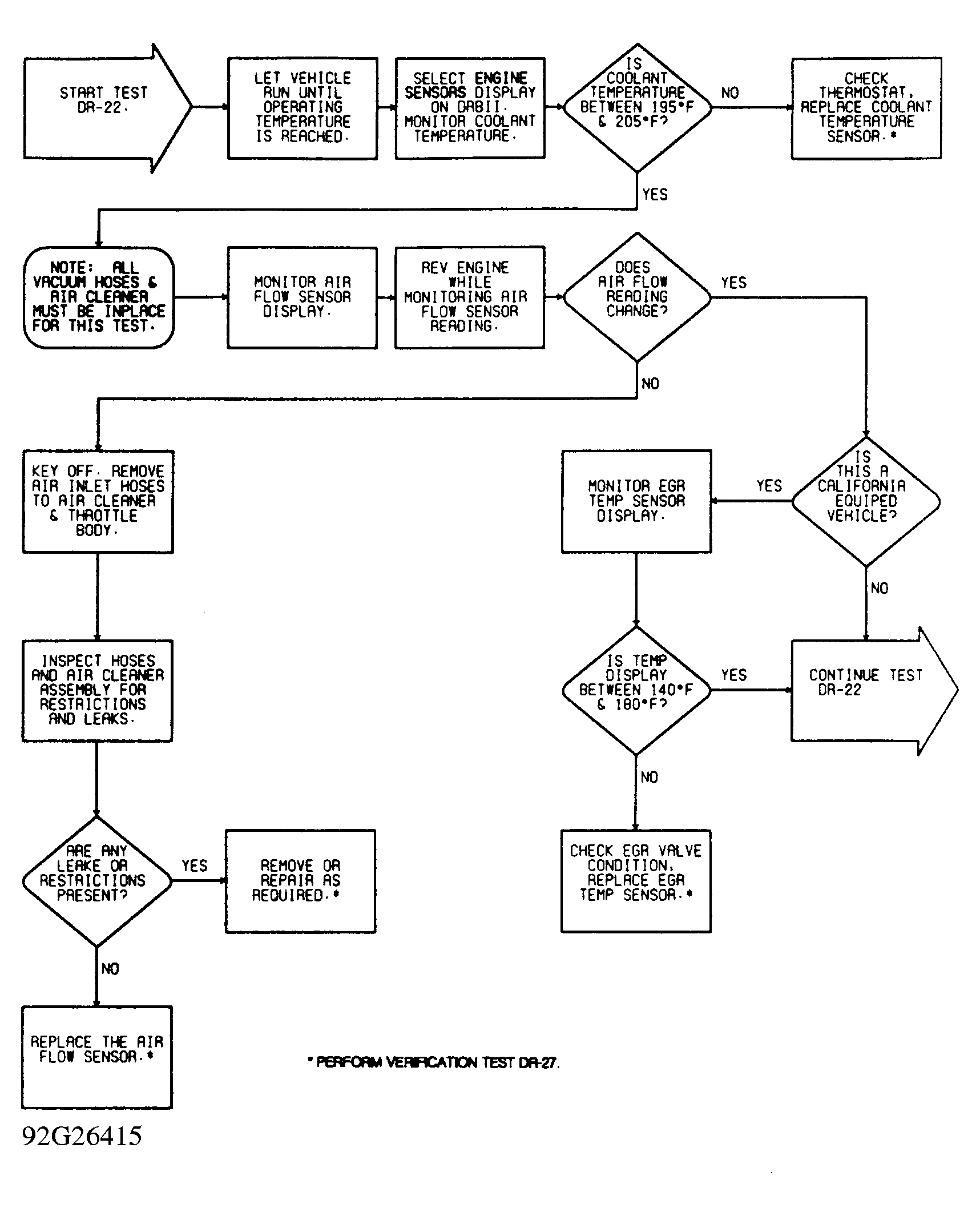

Fig 2: Test DR-22 Flow Chart - DOHC (1 Of 5) No Fault Code Sensor Tests
G92G26415

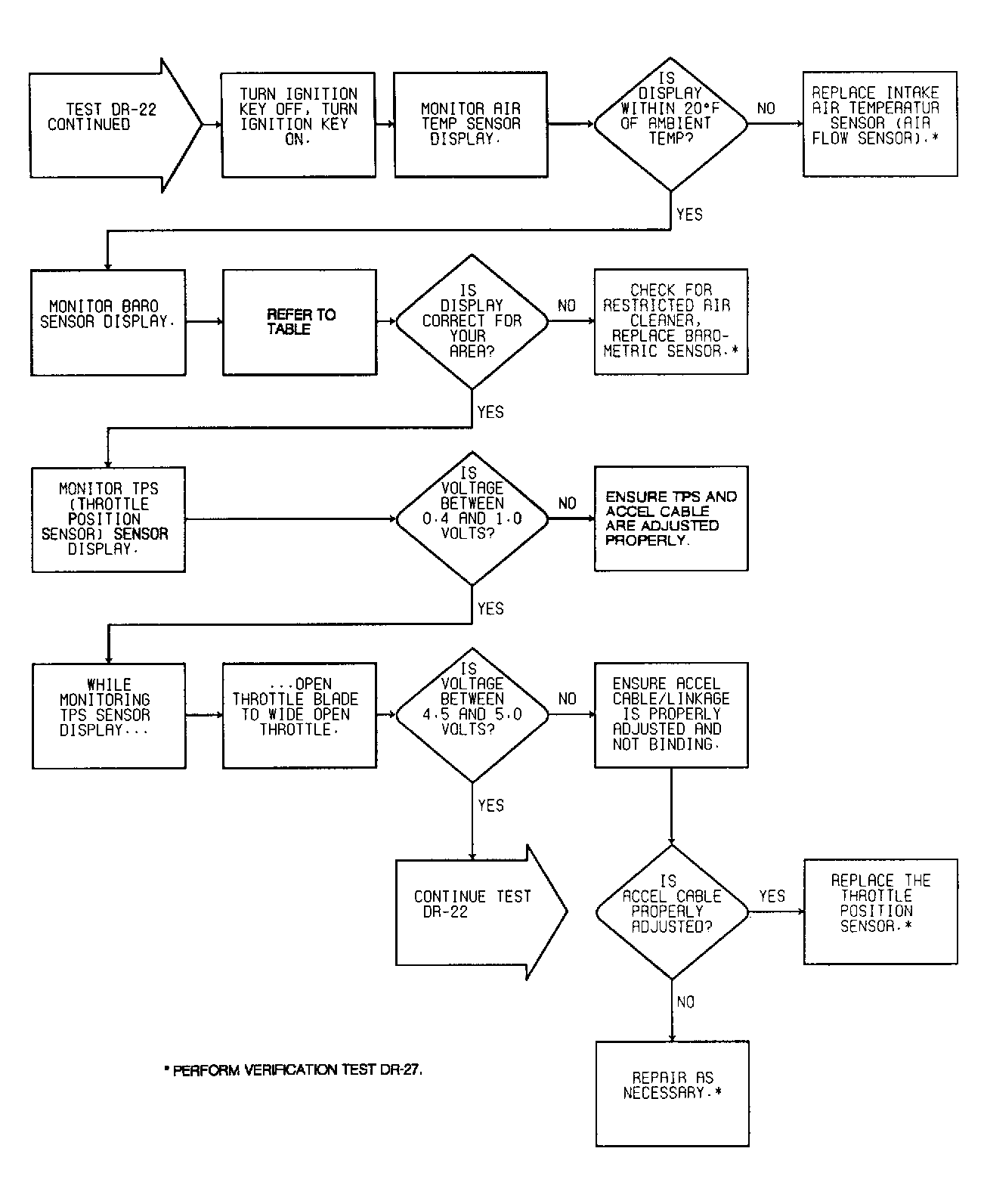

Fig 3: Test DR-22 Flow Chart - DOHC (2 Of 5) No Fault Code Sensor Tests
G92H26416

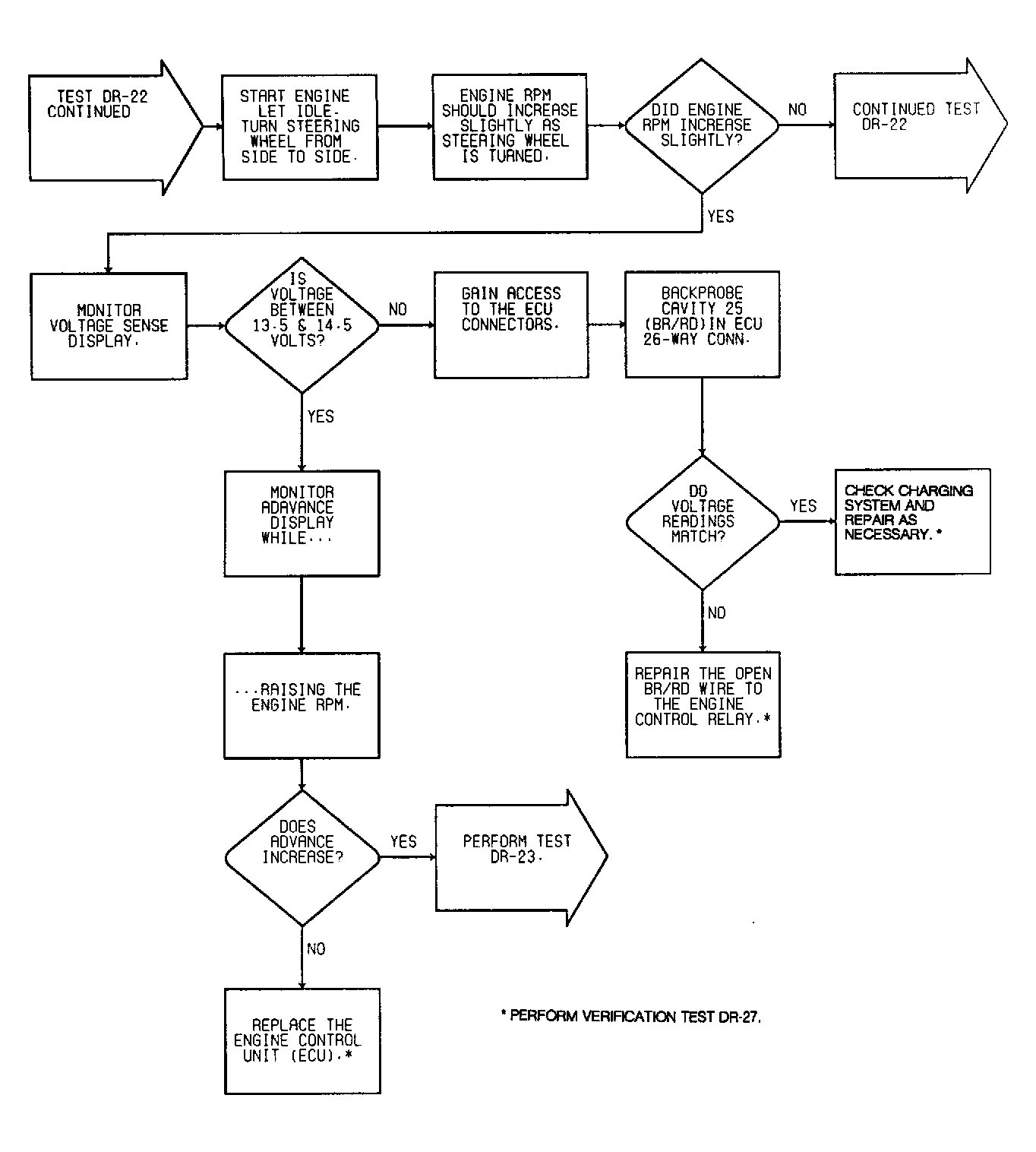

Fig 4: Test DR-22 Flow Chart - DOHC (3 Of 5) No Fault Code Sensor Tests
G92I26417

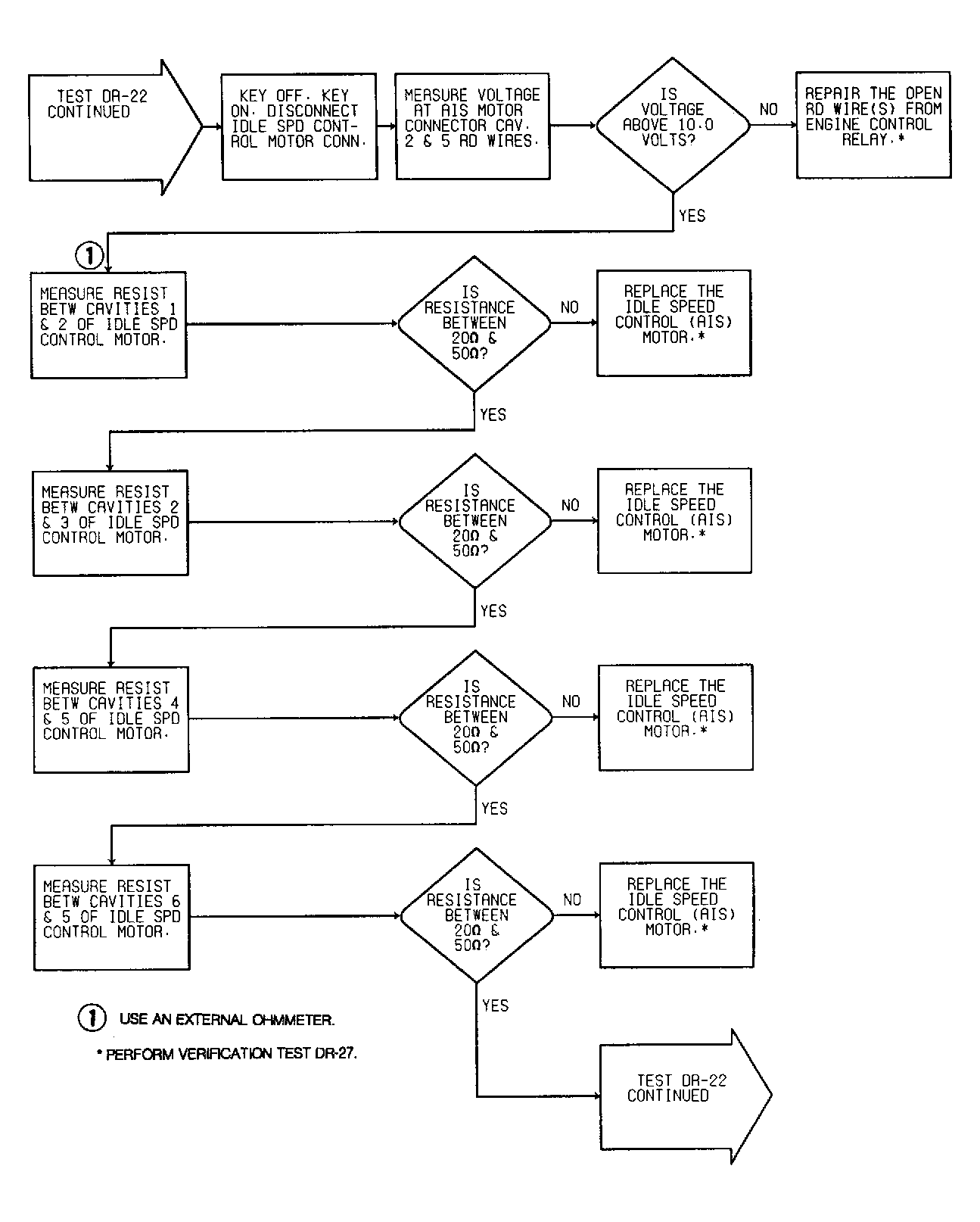

Fig 5: Test DR-22 Flow Chart - DOHC (4 Of 5) No Fault Code Sensor Tests
G92A26419

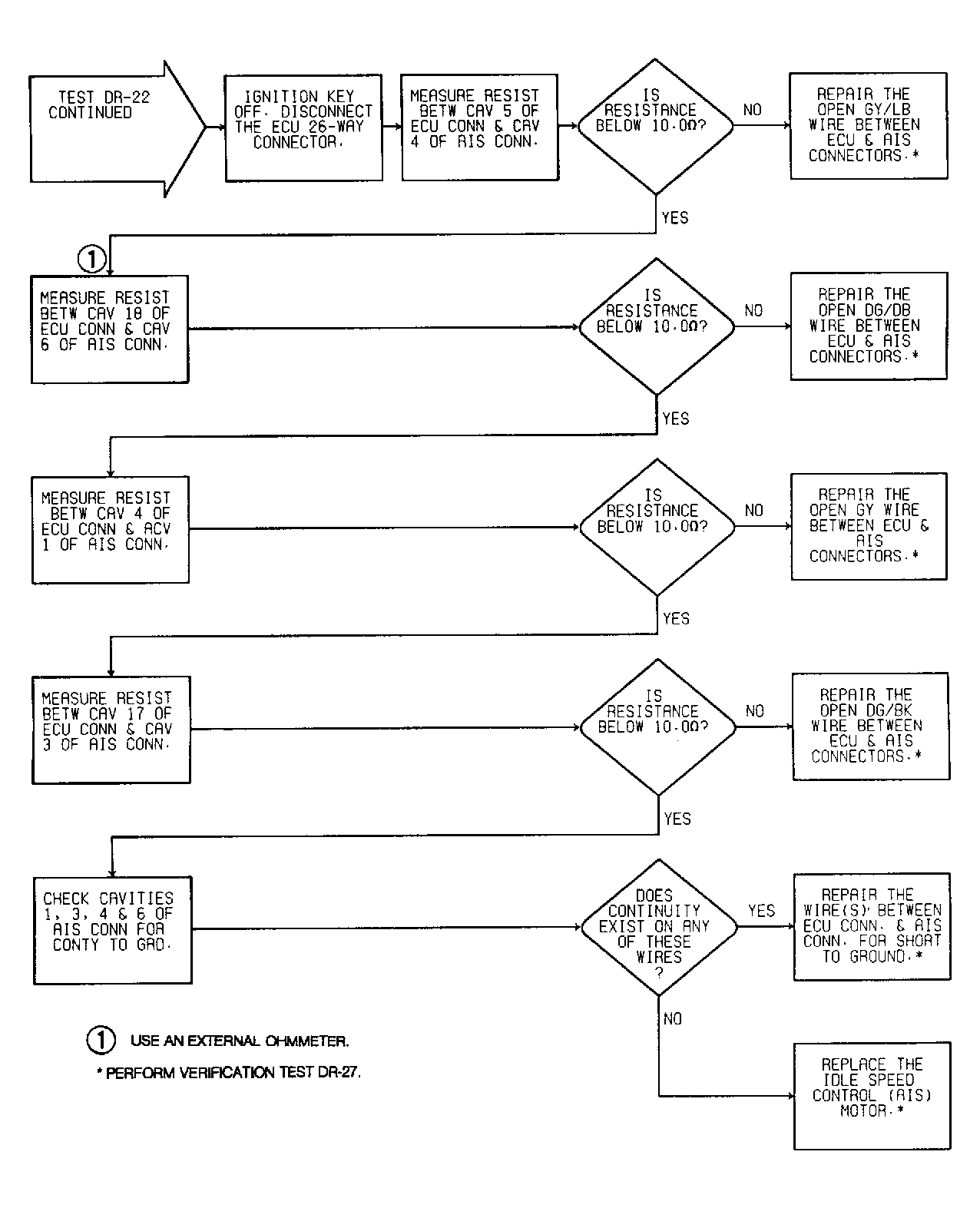

Fig 6: Test DR-22 Flow Chart - DOHC (5 Of 5) No Fault Code Sensor Tests
G92D26420
