Dr-11: Code 31, Knock Sensor Circuit

Fig 1: Test DR-11 Schematic - Code 31 - DOHC Knock Sensor Circuit

G92C26361

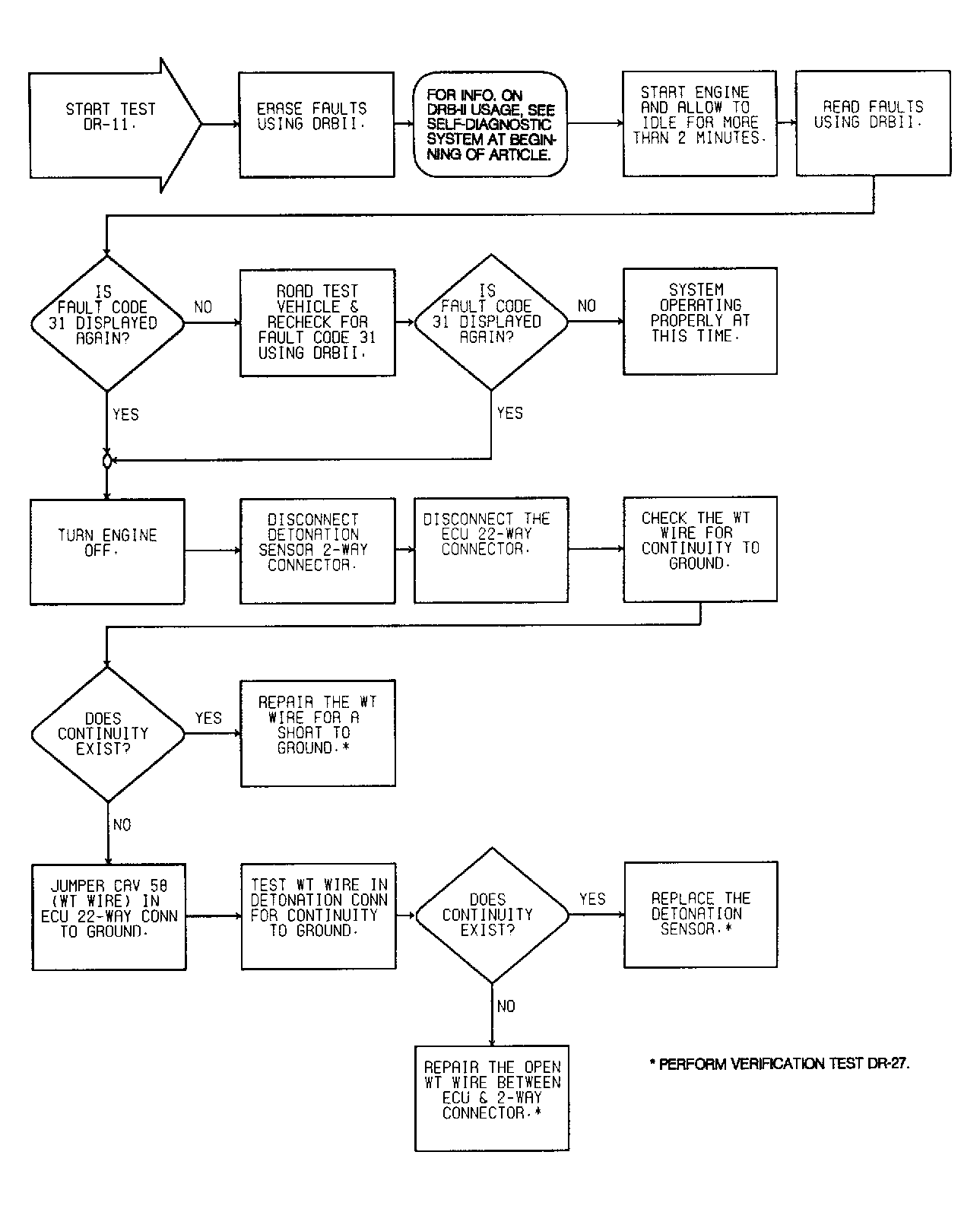

Fig 2: Test DR-11 Flow Chart - Code 31 - DOHC Knock Sensor Circuit

G92D26362
