Dr-10: Code 25, Barometric Pressure Sensor

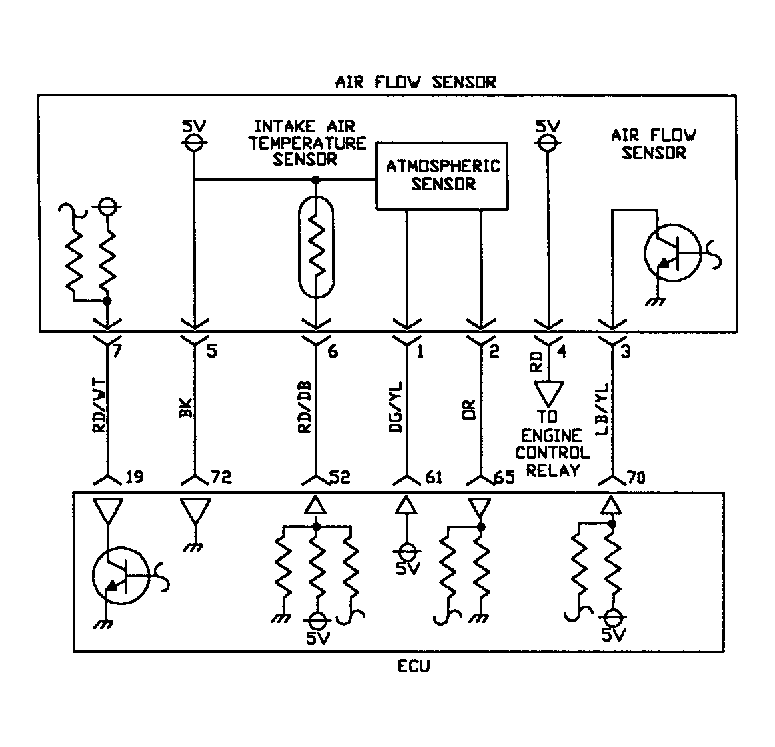

Fig 1: Test DR-10 Schematic - Code 25 - DOHC Barometric Pressure Sensor Circuit
G92H26358

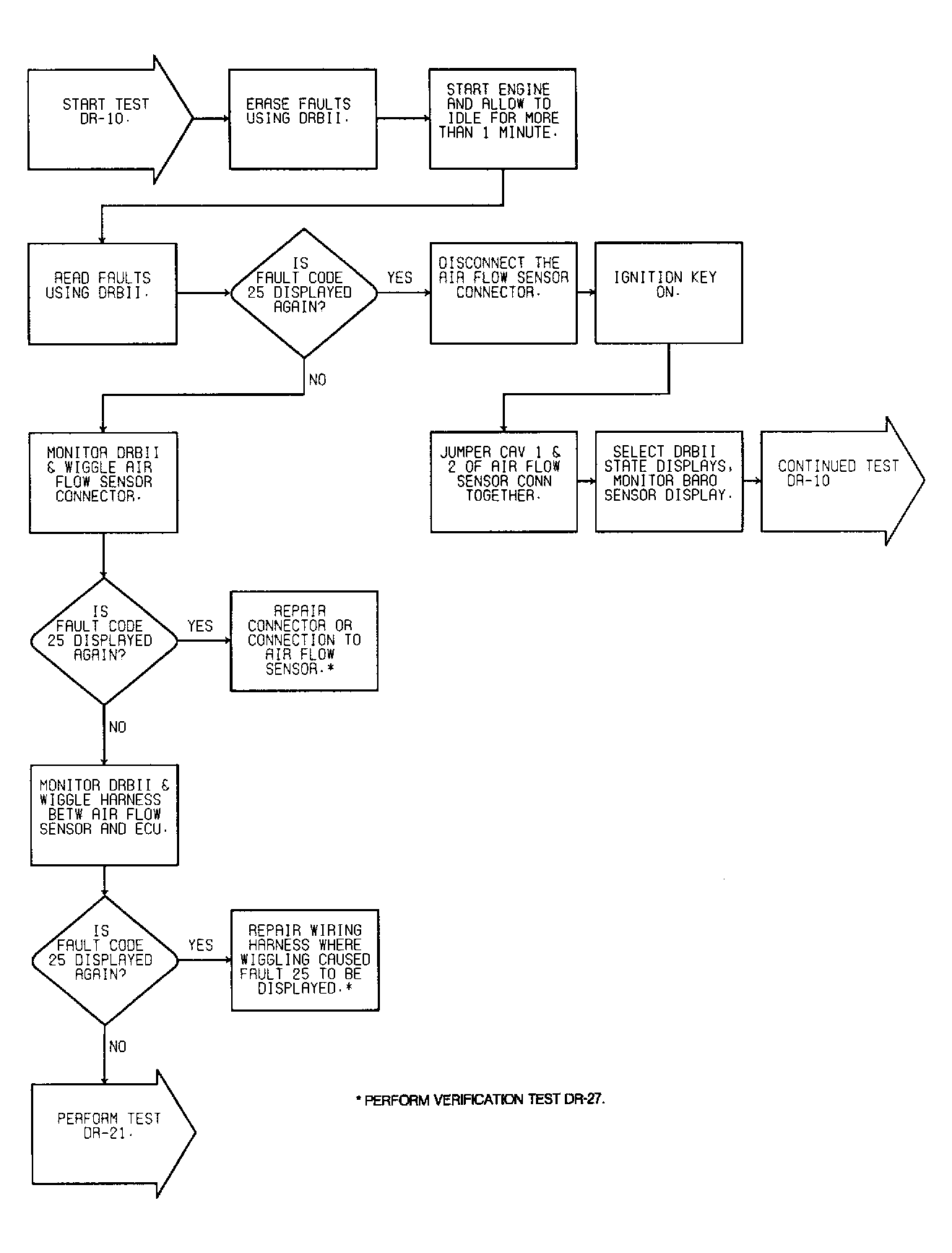

Fig 2: Test DR-10 Flow Chart - Code 25 - DOHC (1 Of 2) Barometric Pressure Sensor Circuit
G92I26359

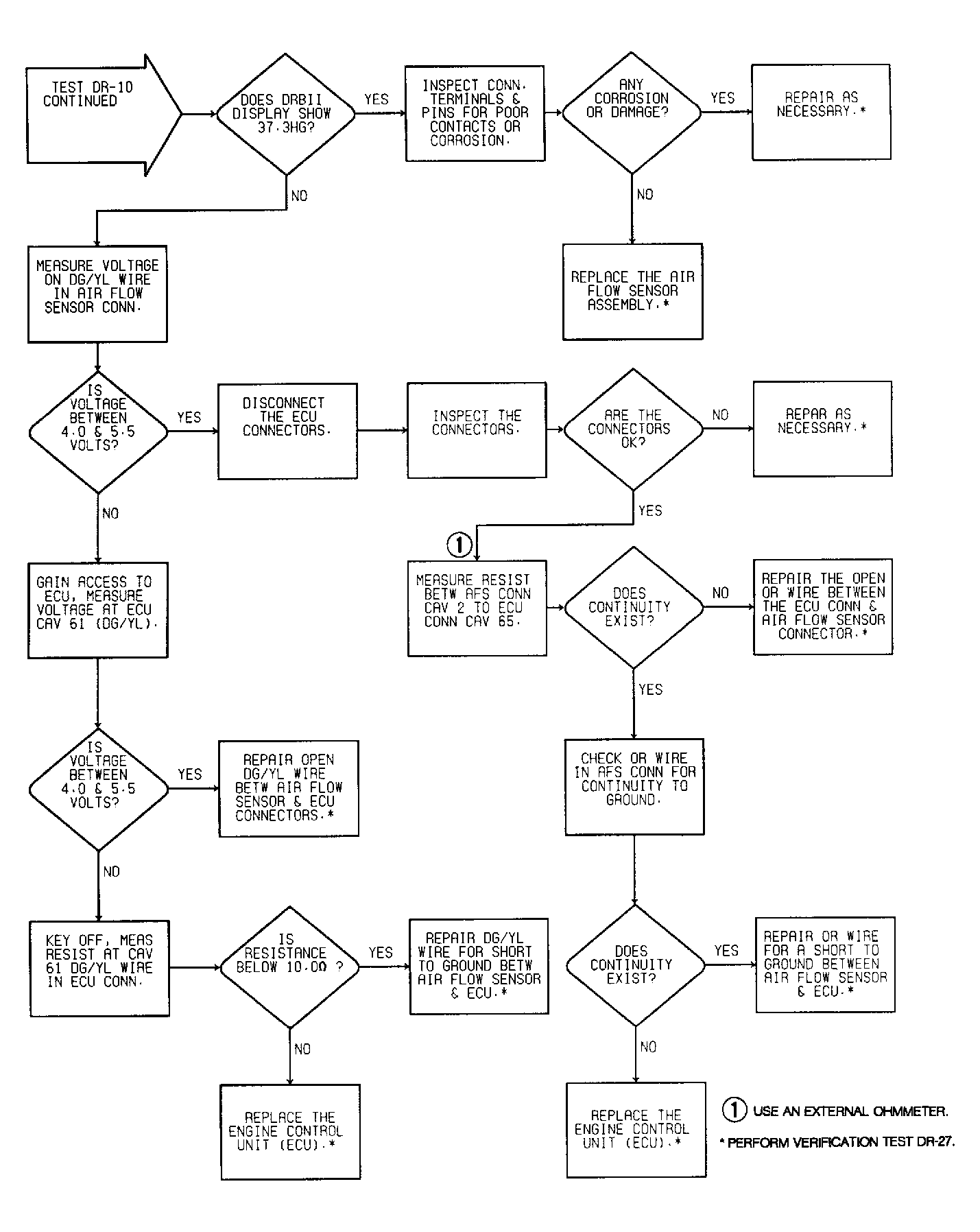

Fig 3: Test DR-10 Flow Chart - Code 25 - DOHC (2 Of 2) Barometric Pressure Sensor Circuit
G92B26360
