Data Display 18: Ignition Switch (M/T Only)

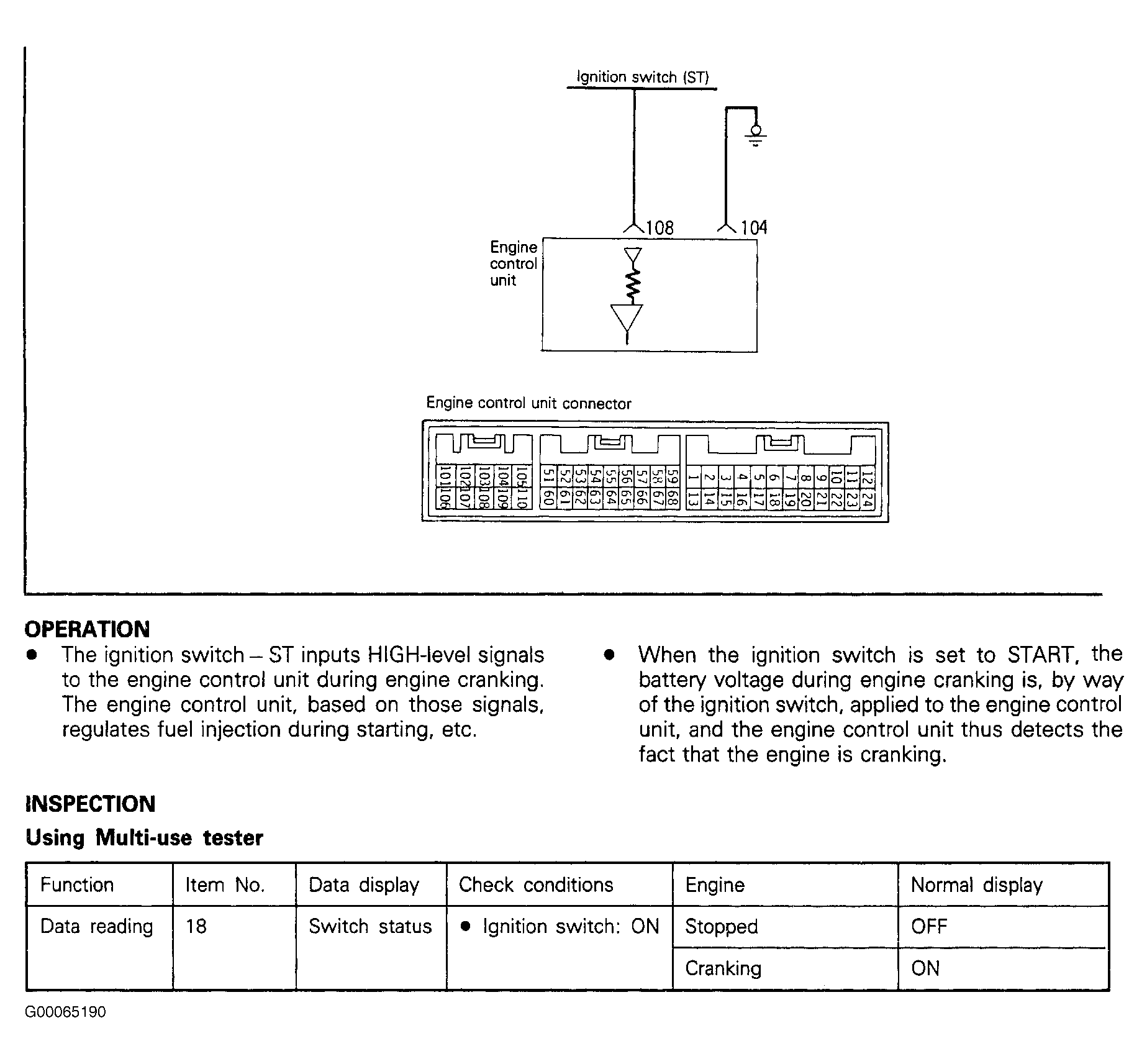

Fig 1: Ignition Switch (Start; M/T Only) (1 Of 2)
G00065190Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

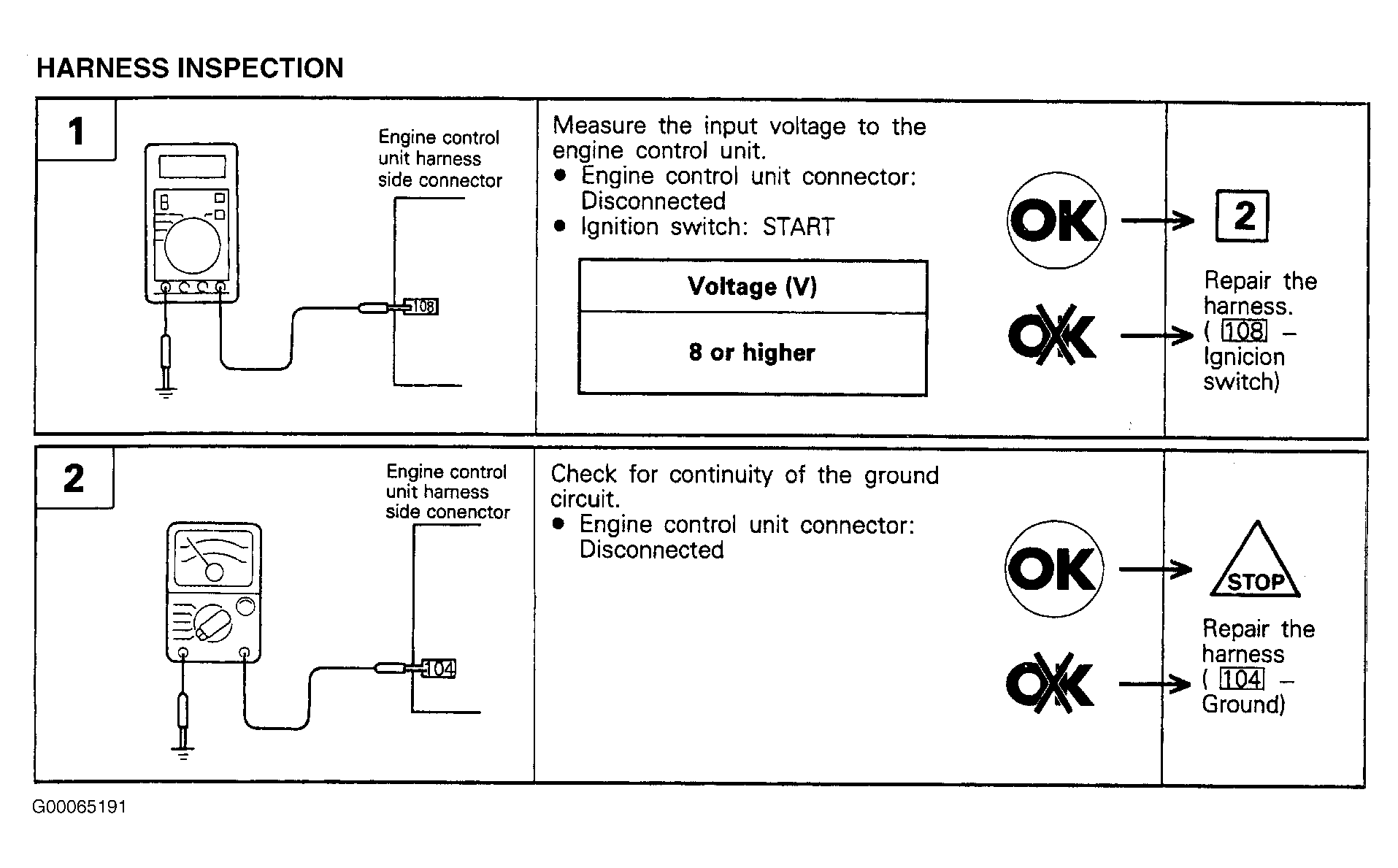

Fig 2: Ignition Switch (Start; M/T Only) - Steps 1 & 2 (2 Of 2)
G00065191Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
