Harness Inspection

For harness inspection, see Fig 1 . For component locations and connector terminal identification, see Figure .

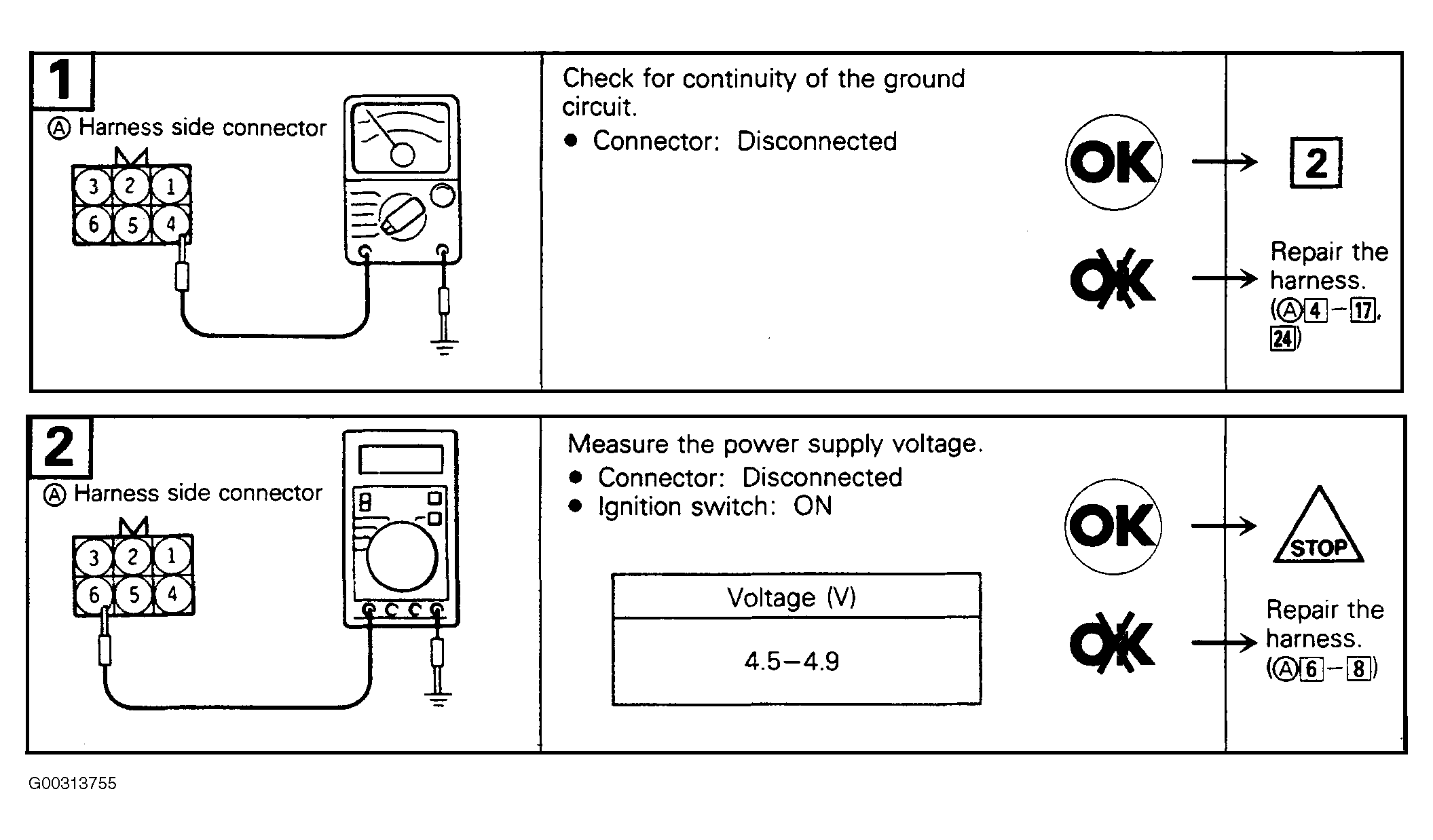

Fig 1: Intake Air Temperature Sensor Harness Inspection
G00313755Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
