Dr-9: Code 23 Top Dead Center Sensor Circuit

Fig 1: Circuit Diagram DR-9 (3.0L)

G90J20072

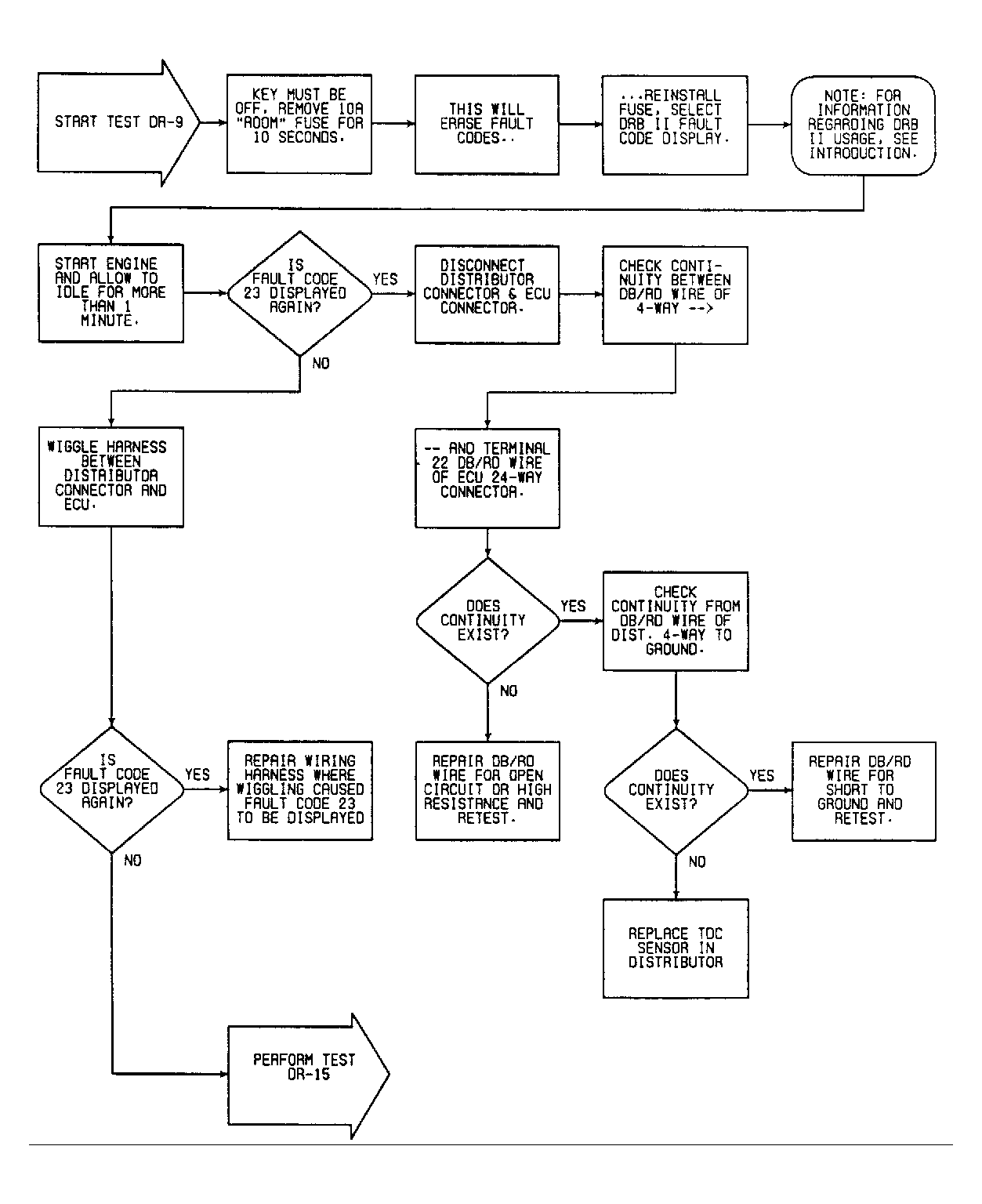

Fig 2: Flow Chart DR-9 (3.0L)

G90J20114
