Mitsubishi
>>
1990
>>
Sigma
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Code Charts - 3.0L
>>
Dr-8: Testing Self-Diagnostic Connector
Dr-8: Testing Self-Diagnostic Connector
Fig 1: Circuit Diagram DR-8 (3.0L)

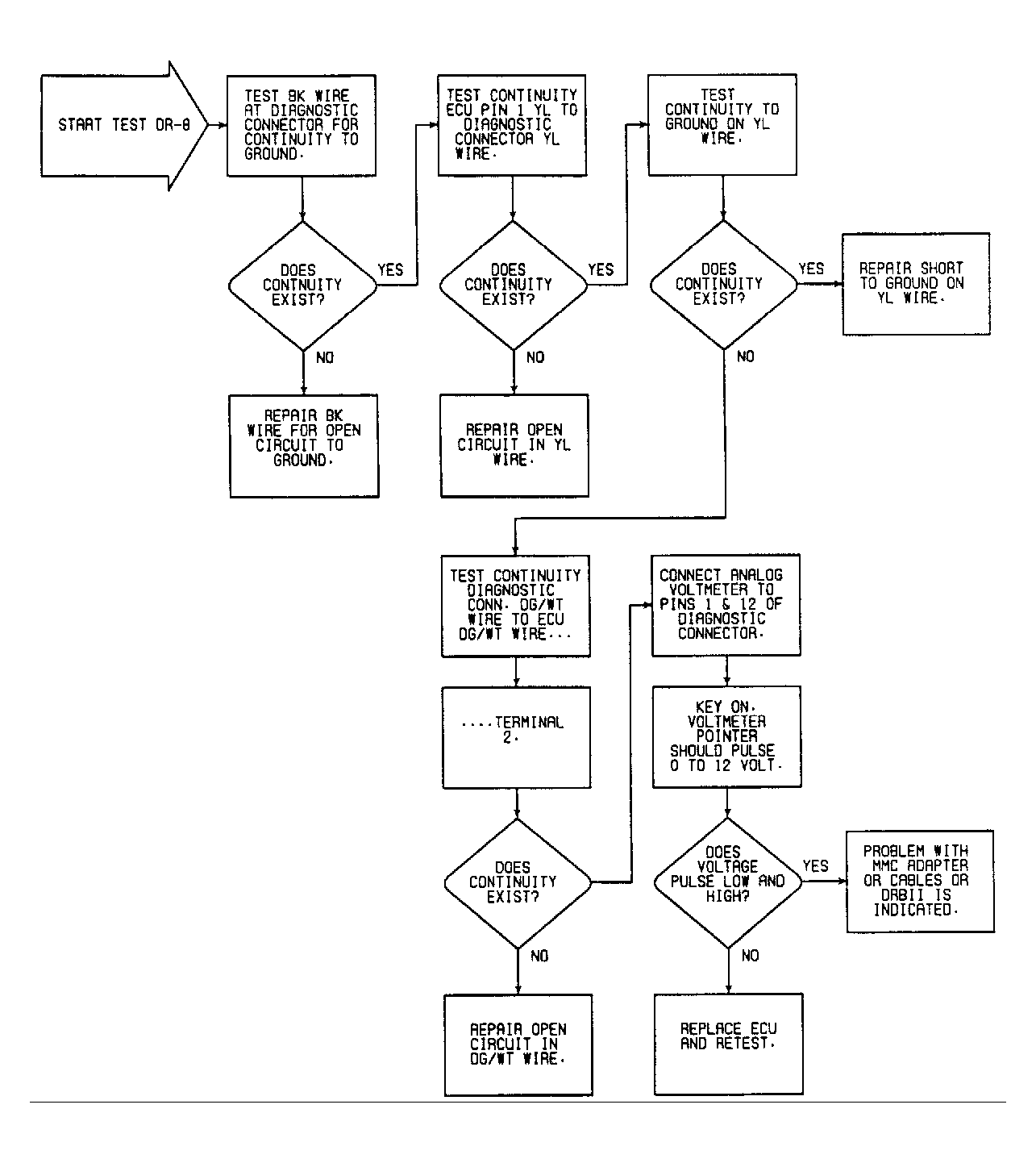

Fig 2: Flow Chart DR-8 (3.0L)
