NS-5: Testing Self-Diagnostic Connector

Fig 1: Circuit Diagram NS-5 (2.4L)

G90C19978

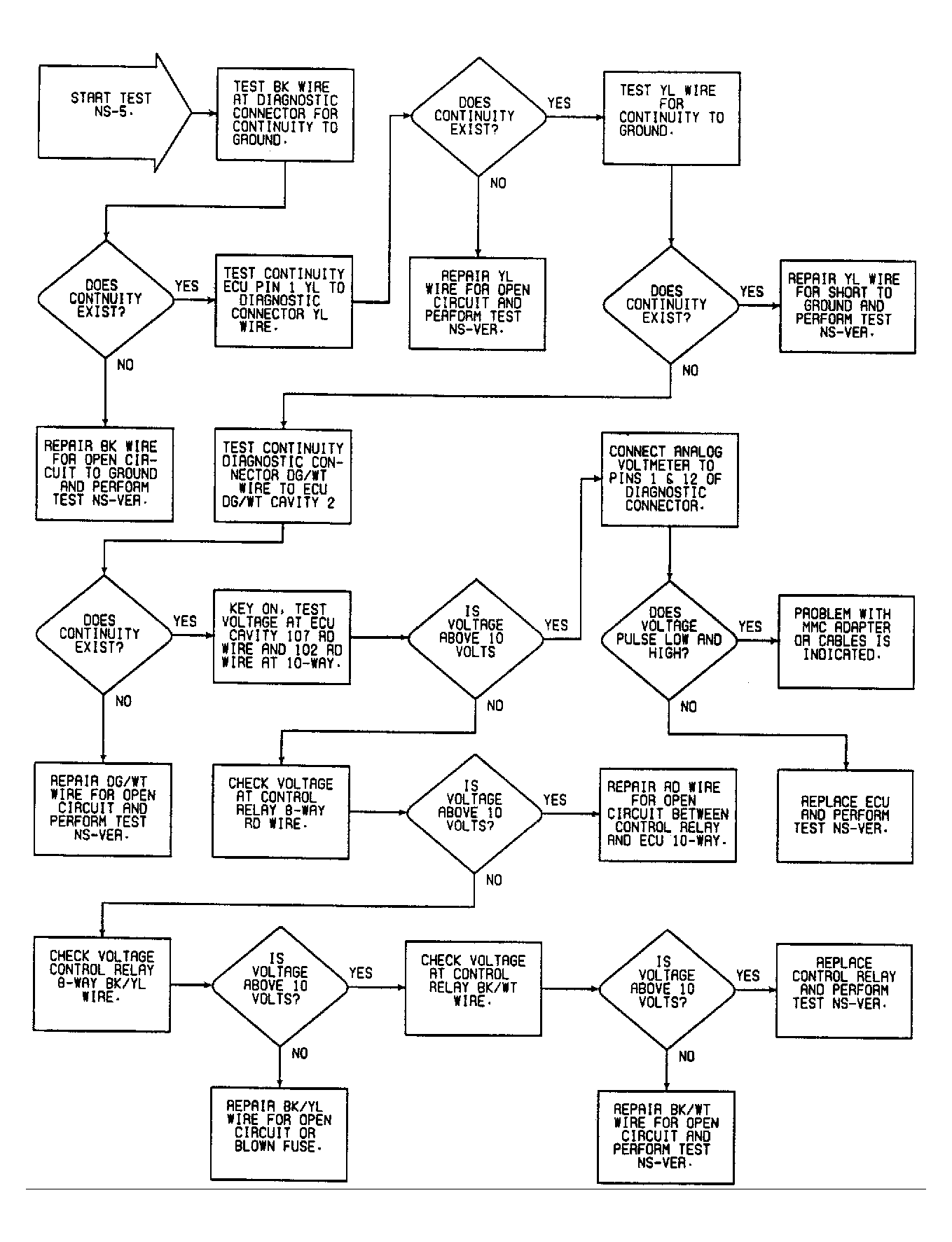

Fig 2: Flow Chart NS-5 (2.4L)

G90B20017
