ECI-MULTI DRIVEABILITY TROUBLESHOOTING MANUAL UPDATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): TSB-88-14-009, Date of Issue: July, 1988

MITSUBISHI:	All with ECI
GROUP:	14 - Fuel System

PURPOSE

This bulletin is issued to correct typographical errors in the 1987 ECI-Multi Driveability Troubleshooting Manual, Publication No. MSSP-202B-87.

CORRECTIONS

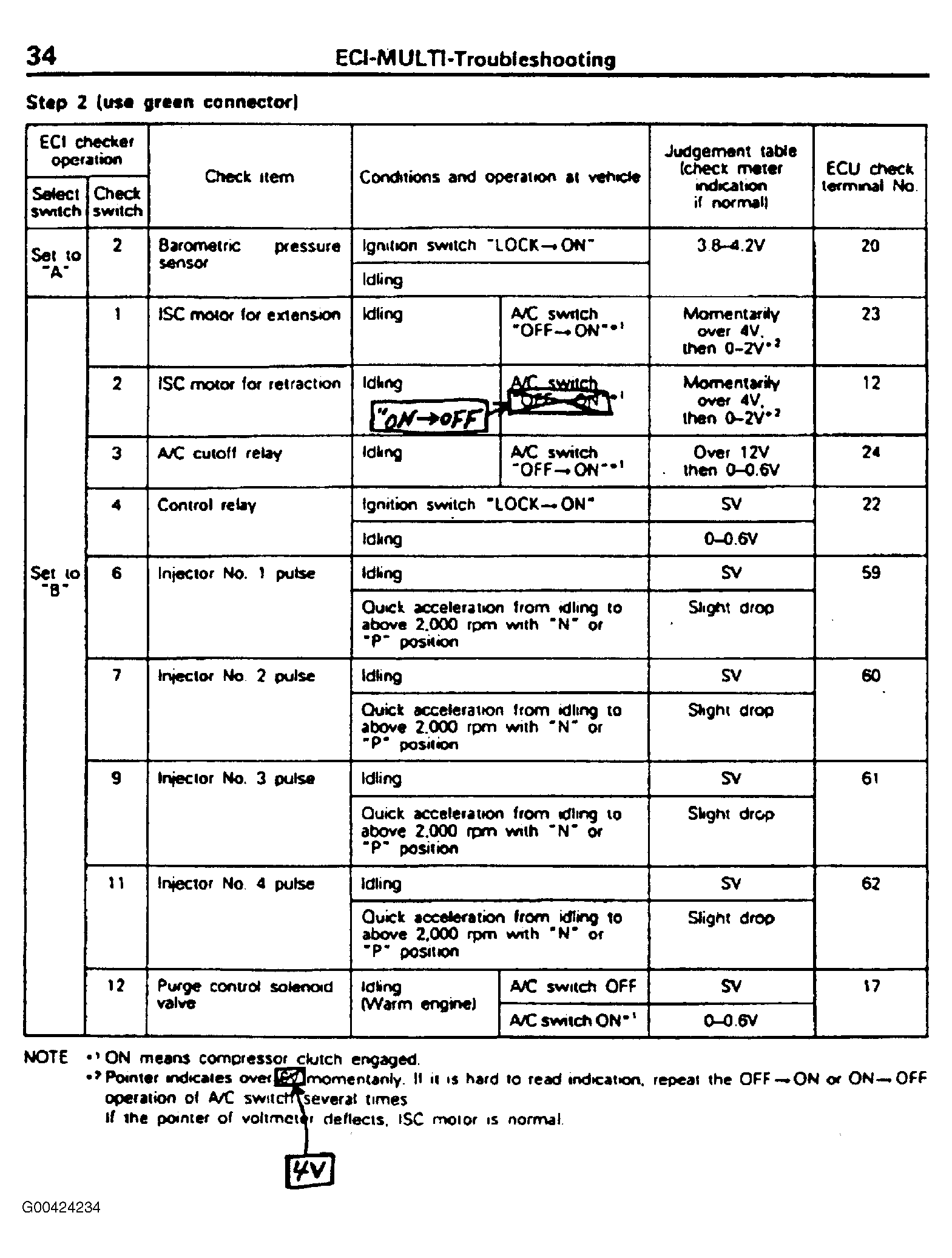

Page 34

In the Troubleshooting Table, change "OFF-ON" to "ON-OFF" and at the bottom of the table, change 6V to 4V. See illustration below.

Fig 1: Page 34

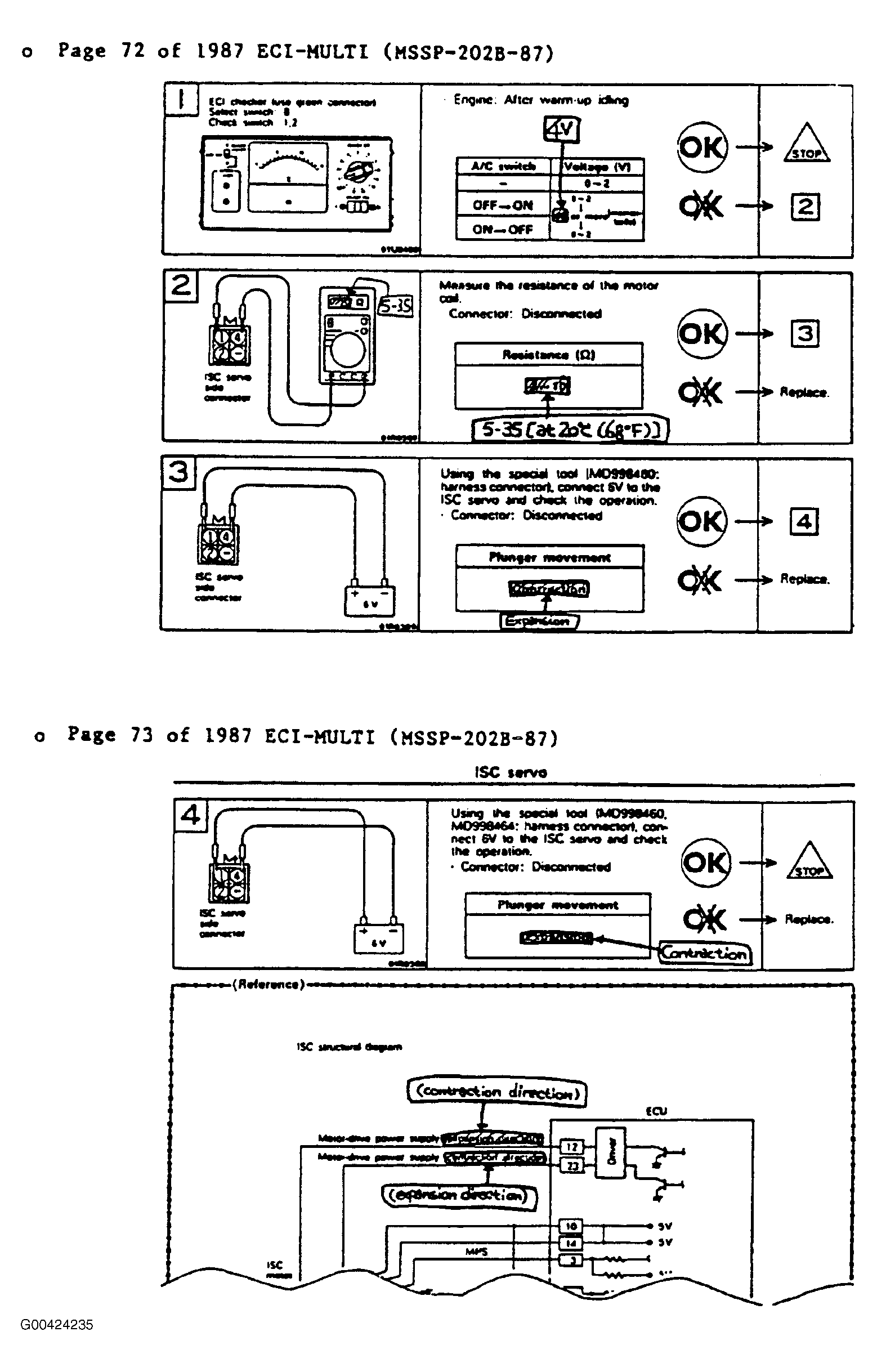

Pages 72 and 73

In the (1) box, change 6V to 4V. In the (2) box, change the resistance valve to 3-53 @ 20°C (68°F). In the (3) box, change "Contraction" to "Expansion". In the (4) box, change "Expansion" to "Contraction". In the Reference illustration, change "Expansion Direction" to "Contraction Direction" and "Contraction Direction" to "Expansion Direction". These changes are illustrated below.

Fig 2: Pages 72 & 73
