Publication date: 1986-05-28
Reference number: STB-86-14-002

FUEL SYSTEM SPECIFICATIONS - SERVICE MANUAL UPDATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): STB-86-14-002, Date of Issue: May, 1986

MITSUBISHI:	1985 Starion; 1986 Starion, Cordia/Tredia, Mirage
GROUP:	14 - Fuel System

PURPOSE

This bulletin is issued to modify fuel system procedures as outlined in your service manuals. Please indicate the changes in your service manuals as shown below and write the STB number in the STB revision boxes on the affected pages.

SERVICE MANUALS AFFECTED

1985 Starion Group 14, Fuel Systems, Page 14-33

1986 Starion Group 14, Fuel Systems, Pages 14-11, 12 and 38

1986 Cordia/Tredia Group 14, Fuel Systems, Page 14-16

1986 Mirage Group 14, Fuel Systems, Pages 14-23, 24

SPECIFICATION CHANGE

Revise Service Manuals as shown below.

1985 STARION SERVICE MANUALS, PAGE 14-33 AND 1986 STARION SERVICE MANUAL, PAGE 14-38.

Change the resistance value for the intake air temperature sensor as illustrated below.

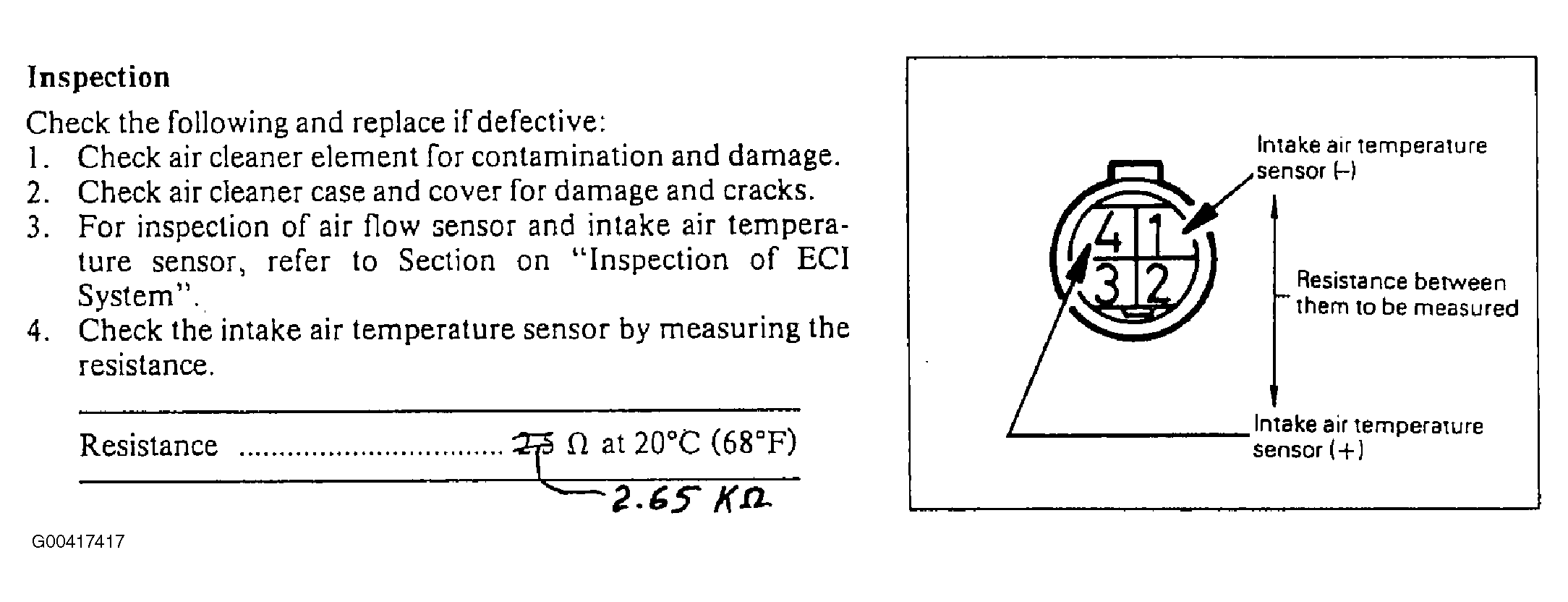

Fig 1: 1985 Starion Service Manual, Page 14-33; 1986 Starion Service Manual, Page 14-38

1986 STARION/SERVICE MANUAL PAGES 14-11, 12 AND 1986 CORDIA/TREDIA SERVICE MANUAL PAGES 14-16

Revise procedures as shown below.

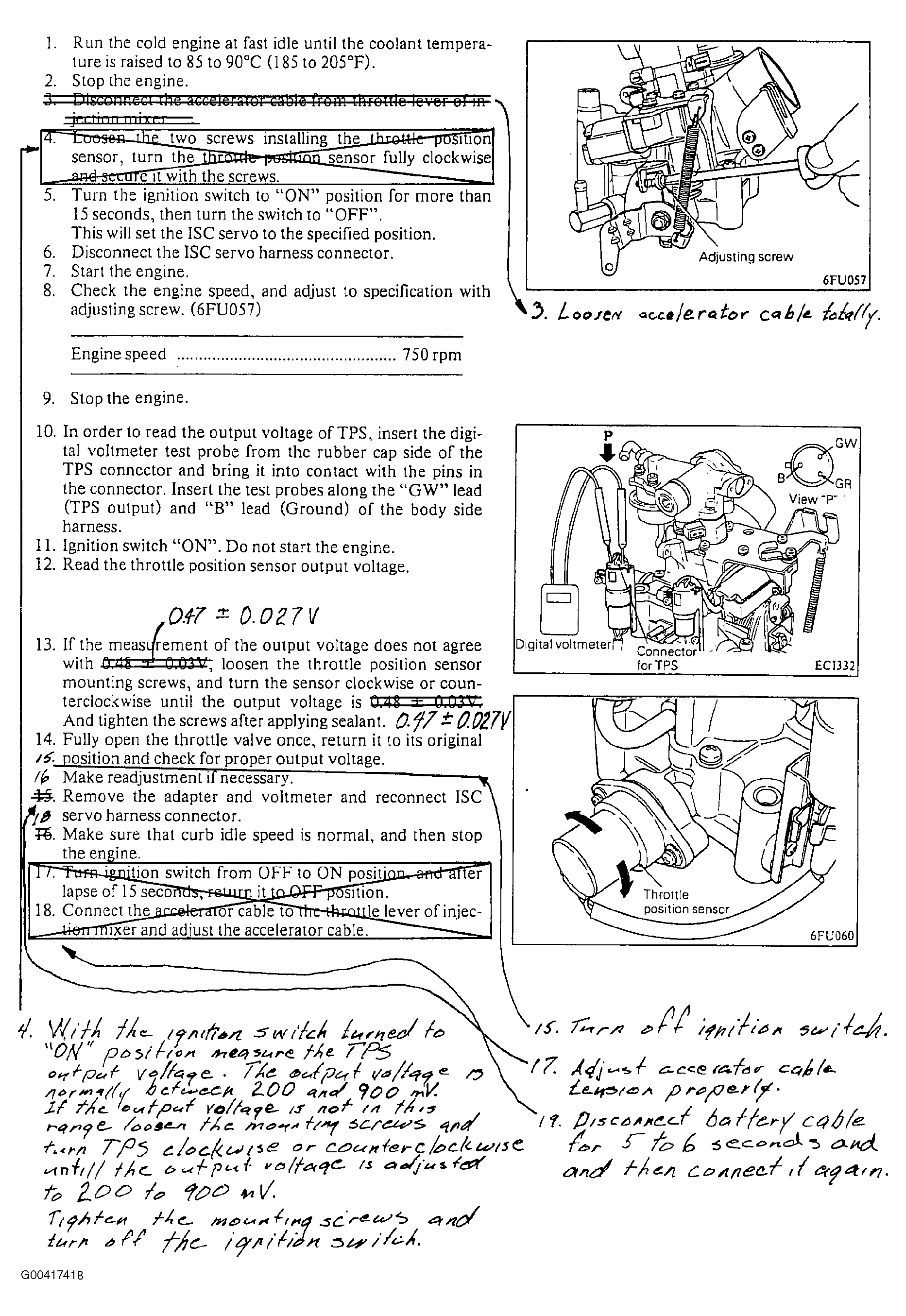

Fig 2: 1986 Starion Service Manual, Pages 14-11, 12; 1986 Cordia/Tredia Service Manual, Page 14-16

1986 MIRAGE SERVICE MANUAL PAGES 14-23, 24

Revise procedures as shown below.

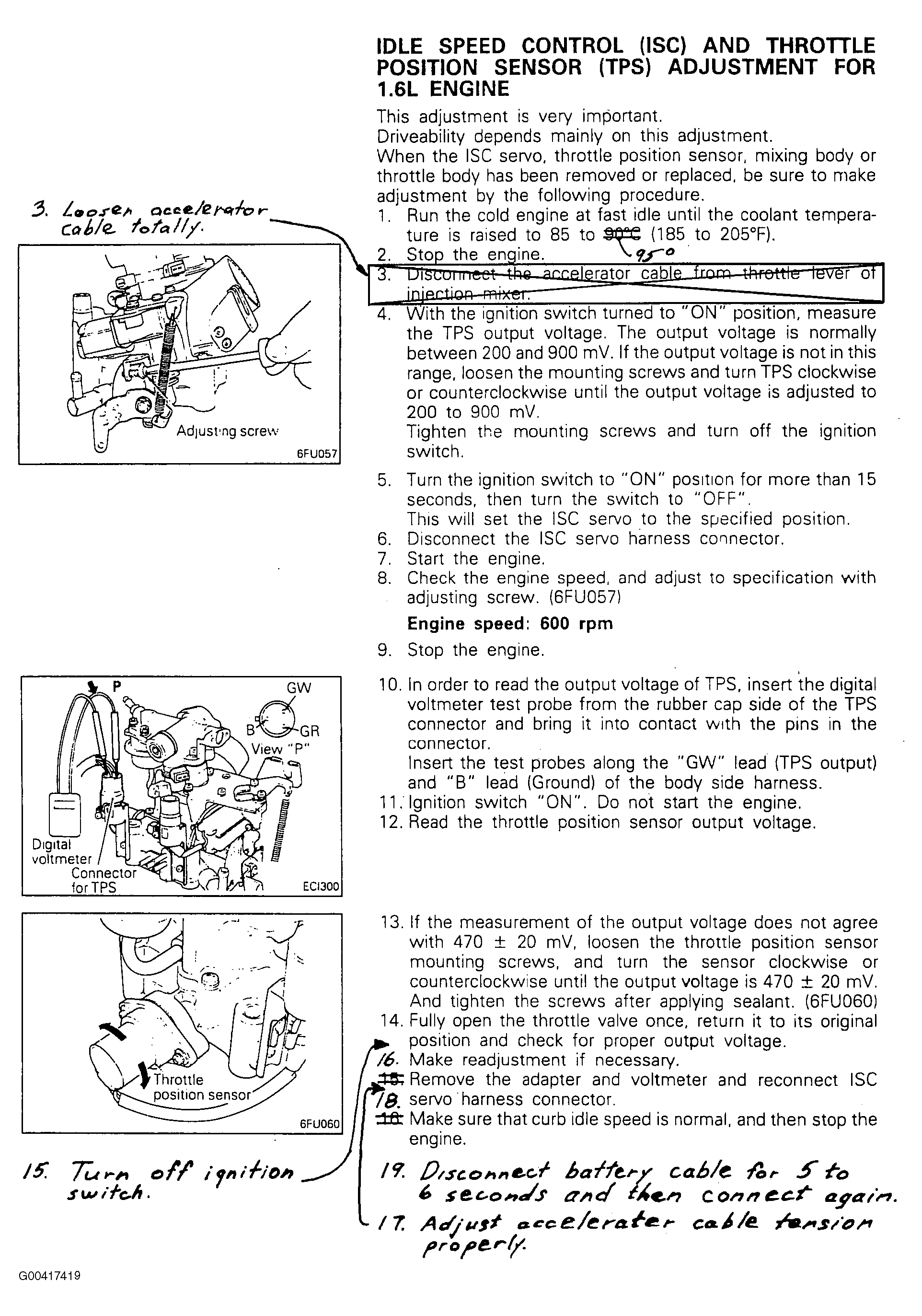

Fig 3: 1986 Mirage Service Manual, Pages 14-23, 24
