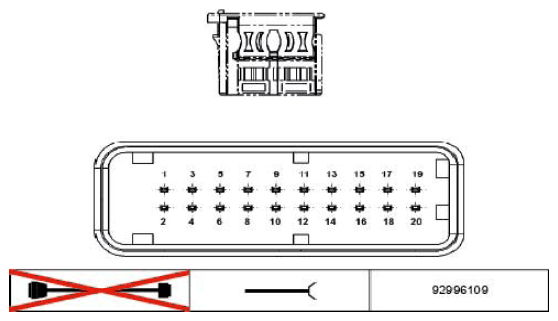

Headunit A42*3B Connector End View
Pin Assignments At Plug Connector A42*3B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | -- | Not used | |
| 12 | -- | Not used | |
| 13 | -- | Not used | |
| 14 | -- | Not used | |
| 15 | -- | Not used | |
| 16 | -- | Not used | |
| 17 | E/A | Ethernet data line | Body Domain Controller |
| 18 | E/A | Ethernet data line | Body Domain Controller |
| 19 | E/A | Ethernet data line | Body Domain Controller |
| 20 | E/A | Ethernet data line | Body Domain Controller |
