63 10... Test requirements for vertical aim adjustment

WARNING: This page is about a different variant/trim than selected.
IMPORTANT: Do not perform headlight adjustment immediately after lowering the vehicle on the vehicle hoist. In this case, shift the vehicle for approx. 15 m on its own wheels before headlight adjustment.
IMPORTANT: Observe the manufacturer's operating instructions for the headlight adjusting device!

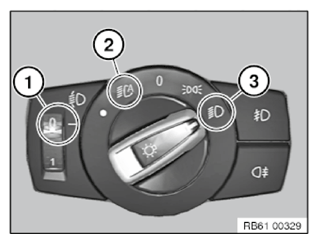

Only halogen headlight, fog light and headlight for dynamic marker light (dynamic spotlight):

Version with Xenon or LED (automatic headlight beam throw adjustment):

Wait 80 s after switching on lights. During this time, do not move the vehicle and avoid vibrations.

IMPORTANT: Do not move the vehicle and steering wheel during the measuring and adjustment procedures!

Wheels must be in the straight-ahead position!

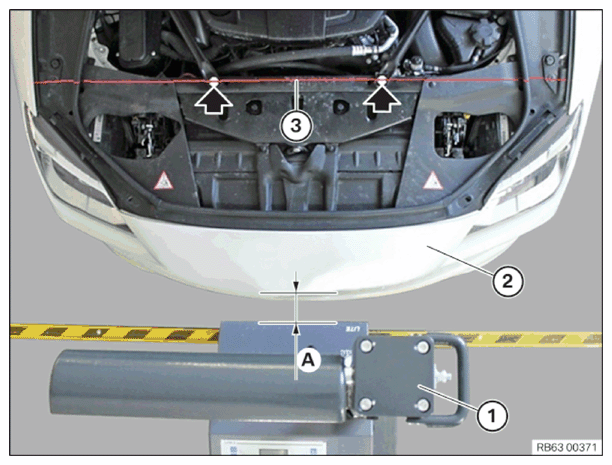

Fig 2: Checking Headlight Adjusting Device
G11775070Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: A correct measurement/adjustment requires exact positioning of the headlight adjusting device (1)!

The headlight adjusting device (1) must stand vertically to the vehicle longitudinal axis!

This applies to all headlights!

Position the headlight adjusting device (1) centrally in front of the vehicle (2) at distance (A) = 10 cm.

Align the headlight adjusting device (1) by laser beam (3). Laser beam (3) must hit two suitable points, e.g. marked by arrows.

IMPORTANT: Points must be vehicle proof!

Points must be separated as wide as possible!

Trim panels are not suitable!

If the headlight adjusting device (1) does not have a laser beam (3), complete the alignment analogous with the line in the mirror.

IMPORTANT: Always perform positioning of the headlight adjusting device (1) at the outer headlight (2)!

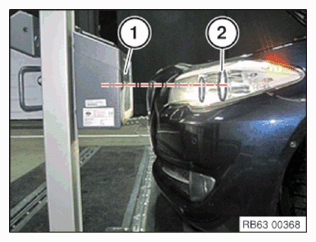

Fig 3: Positioning Headlight Adjusting Device
G11775071Courtesy of BMW OF NORTH AMERICA, INC.

The center of the collecting lens (1) must match the center of headlight (2) horizontally.

Corrections are made by raising or lowering the headlight adjusting device.

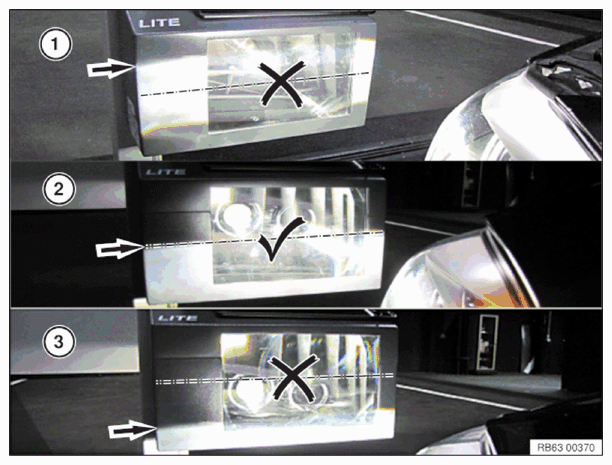

Fig 4: Headlight Adjusting Device Correct And Incorrect Position
G11775072Courtesy of BMW OF NORTH AMERICA, INC.

When positioned correctly, the light/dark boundary of the headlight (marked with arrow) must hit the collecting lens of the adjustment device in the center:

  1. The headlight adjusting device is too low.
  2. The headlight adjusting device is positioned correctly.
  3. The headlight adjusting device is too high.

The center of the collecting lens (1) must match the center of headlight (2) vertically.

Corrections are made by sliding the side of the headlight adjusting device to the left or right.

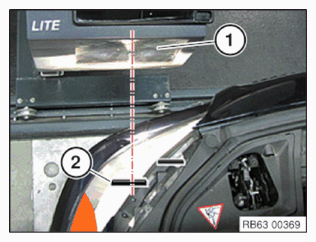

Fig 5: Headlight And Collecting Lens
G11775073Courtesy of BMW OF NORTH AMERICA, INC.
Fig 6: Example Of Halogen Headlight Transparent Screen
G11775074Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The figure shows an example of the transparent screen of halogen headlight.

Refer to OVERVIEW  of transparent screens of different headlight types.

Set the marker line {M} on the headlight adjusting device to dimension {e}. Scale graduations on the headlight adjusting device show a gradient in cm at a distance of 10 meters.

Light/dark boundary of headlights in headlight adjusting device

{e} Setting dimension, headlights:

Setting dimension, fog lights:

{H} Height of headlight center above standing surface

{h} {H} - {e} = height of marking line above standing surface

+ Central mark = center point of high beam headlight.

{M} Marker line of the headlight adjusting device

{S} Standing surface of the vehicle and headlight adjusting device

Adjustment dimension {e} is only valid for EUR. Observe differing national regulations.
