63 11 820 Replacing left/right cornering light LED module

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Removal:

Release screws.

Pull LED module (1) out of headlight (2).

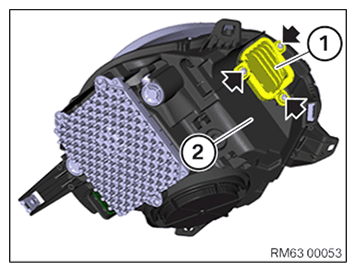

Fig 1: LED Module And Headlight With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector.

Remove LED module (1) from headlight (2).

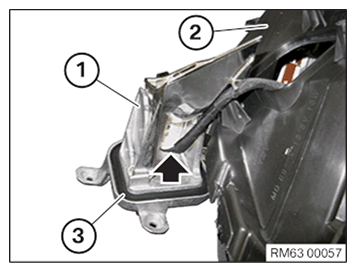

Fig 2: LED Module, Headlight And Gasket With Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector to LED module (1).

NOTE: Ensure correct line routing in headlight (2). Gasket (3) for LED module (1) must not be damaged and must be installed free from grease.

Fig 3: LED Module, Headlight And Gasket With Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Insert LED module (1) in headlight (2).

Tighten down screws.

Tightening torque 63 12 4AZ .

Fig 4: LED Module And Headlight With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
