Load test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 MINI Cooper Countryman, 2015 MINI Cooper Countryman, 2014 MINI Cooper Countryman, 2013 MINI Cooper, and 2012 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Change to the <Load test> in the lower part of the IMIB display.

Press <Start> to start the test for load current and voltage.

During the test, the load current of the USB connection is increased in steps, and the voltage is measured at the USB connection at the same time. These values are shown illustrationally on the IMIB display and documented in the indication range.

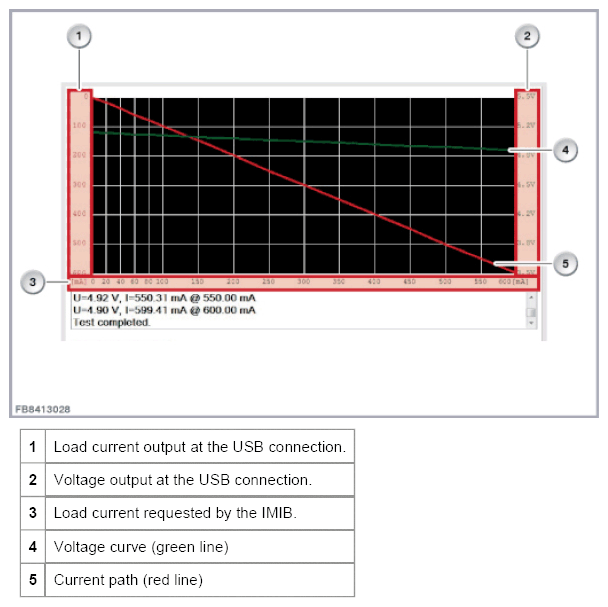

Fig 1: Screen Display - IMIB Load Test

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The current status of the measurement is displayed and documented in the indication range.

In the following illustration the USB voltage is 4.92V with a load current of 500mA .

The green line shows the voltage curve during this load increase.

The red line (1) shows the current requested by the IMIB.

Fig 2: Screen Display - Red Line For Current On Load Test Voltage Graph

Courtesy of BMW OF NORTH AMERICA, INC.

The test finishes automatically after approx. 5 seconds.
