63 99... Replacing bulb for interior roof light

WARNING: This page is about a different variant/trim than selected.

WARNING: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Preliminary work needed:

Removal:

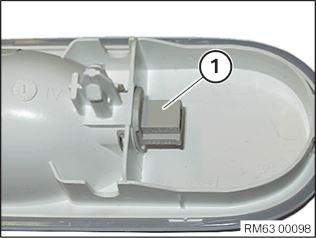

Release the light holder (1) by turning counterclockwise and pull it out of the interior roof light.

Fig 1: Holder For Interior Roof Light

Courtesy of BMW OF NORTH AMERICA, INC.

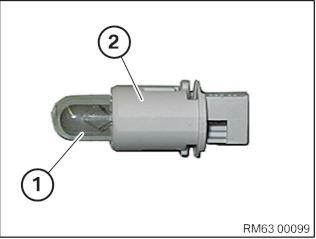

Pull the bulb (1) out of the light holder (2).

Fig 2: Holder And Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join the bulb (1) into the light holder (2).

Fig 3: Holder And Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Place the light holder (1) into the interior roof light and lock by turning clockwise.

Fig 4: Holder For Interior Roof Light

Courtesy of BMW OF NORTH AMERICA, INC.
