63 11 760 Replace FLEL control unit

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Removal:

Release screws.

Remove front light electronics control unit (1) from headlight (2).

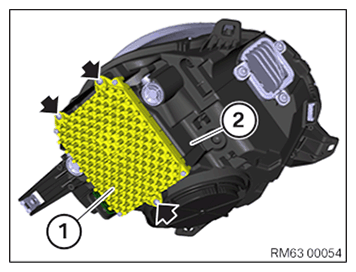

Fig 1: Front Light Electronics Control Unit And Headlight With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Gasket (1) for front light electronics control unit (2) must not be damaged and must be installed free from grease.

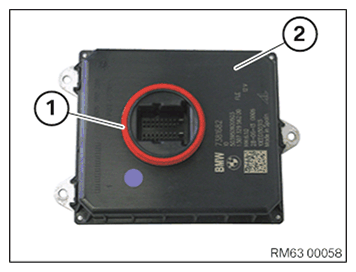

Fig 2: Front Light Electronics Control Unit And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Insert front light electronics control unit (1) into headlight (2).

Tighten down screws.

Tightening torque 63 12 3AZ .

NOTE: Ensure front light electronics control unit (1) is correctly fitted.

Fig 3: Front Light Electronics Control Unit And Headlight With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Replacement only:
