0409689 Adapter cable MP: Notes

NOTE: (V adapter, 6-pin) For diagnosis and troubleshooting at E-gas actuator, exhaust-gas recirculation valve DISA, HFM and SWIRL flap (only E43) This adapter cable is replaced from February 2011 by cable 13 8 030 (0493837).

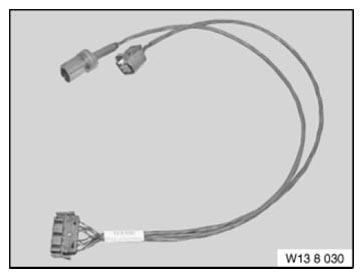

Fig 1: Identifying Adapter Cable MP (0409689)
G08462320Courtesy of BMW OF NORTH AMERICA, INC.
