Front Axle Brake Pad Wear Sensor Routing (M34 02 14)

Publication date: 2014-10-01
Reference number: M34 02 14

FRONT AXLE BRAKE PAD WEAR SENSOR ROUTING

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M34 02 14, Date of Issue: October 2014

MINI:	F56 (Cooper Hardtop)
GROUP:	Brakes

Front Axle Brake Pad Wear Sensor Routing

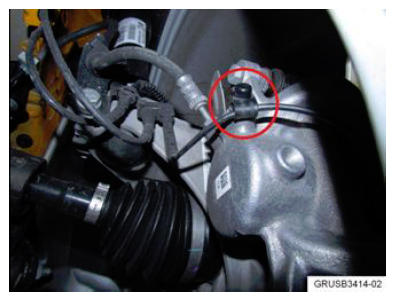

During brake service, the brake pad wear sensor cable may be incorrectly routed and also fastened to the front brake caliper's bleed valve dust cap.

Incorrect routing of the brake sensor cable may cause damage to the cable or brake sensor, resulting in a brake warning message being displayed.

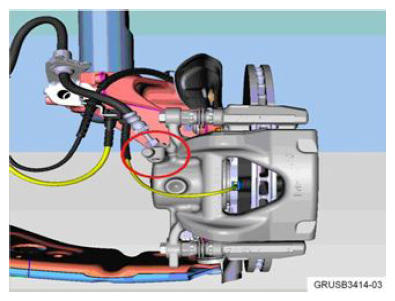

During maintenance brake service, route the brake pad wear sensor cable correctly (as indicated on the illustration).

Do not fasten it to the bleed valve dust cap!!!

Not applicable.
