32 00... General chassis and suspension definitions

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2016 BMW 435i xDrive, 2016 BMW 435i, 2016 BMW 428i xDrive, 2016 BMW 428i, and 2015 BMW 435i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

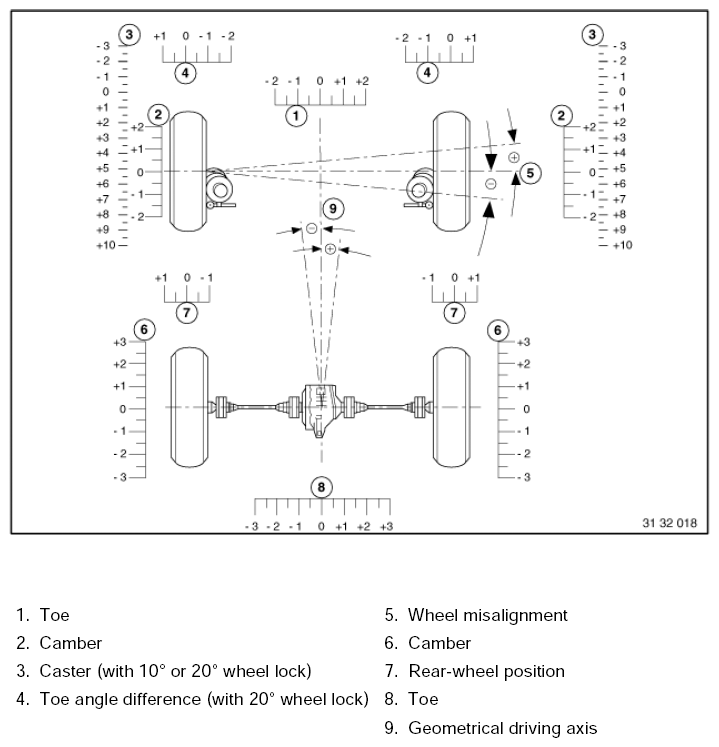

Fig 1: Identifying Chassis And Suspension Dimensions
G10185546Courtesy of BMW OF NORTH AMERICA, INC.
