61 13... Inline plugs, 8-, 12-pin, System D2.5

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

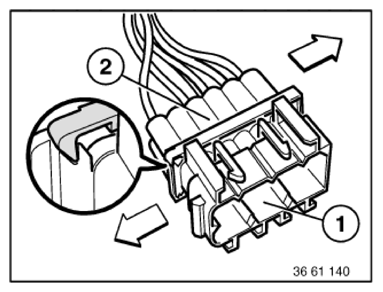

Move upper section of connector (1) and lower section of connector (2) against each other in direction of arrow.

Fig 1: Moving Connector Upper And Lower Section
G10064051Courtesy of BMW OF NORTH AMERICA, INC.

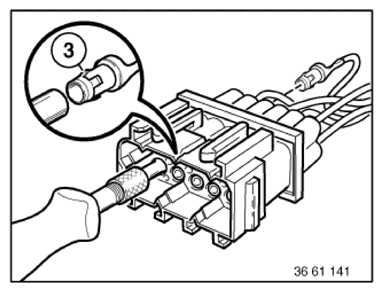

With special tool 61 0 303 , press down retaining hook (3) of corresponding contact and pull out cable with contact.

Fig 2: Pressing Retaining Hook
G10064052Courtesy of BMW OF NORTH AMERICA, INC.
