61 13... Inline plugs, 2-pin, System MPQ 2.8

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

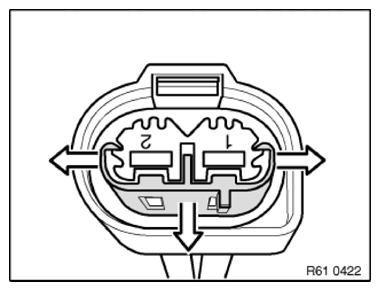

Press catch on outside in direction of arrow and remove towards top.

Fig 1: Pressing Connector Catch
G10064044Courtesy of BMW OF NORTH AMERICA, INC.

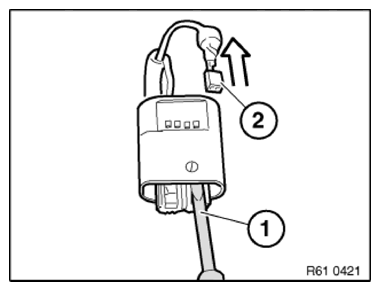

Press down retaining hook (1) with screwdriver and pull out cable and contact (2) towards rear.

Fig 2: Pressing Retaining Hook
G10064045Courtesy of BMW OF NORTH AMERICA, INC.
