13 62 591 Removing And Installing/Replacing Pressure Sensor On Left Intercooler (N63)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Read out fault memory of DME control unit.
- Switch off ignition
- Remove intake duct .
Unclip Bowden cable for engine bonnet/hood actuator from transverse reinforcement (1).
Detach A/C line from holder.
Release screws on left and right.
Tightening torque, see 51 71 4AZ in 51 71 SEALS AND LOOSE BODY PARTS .
Remove cross-brace (1).

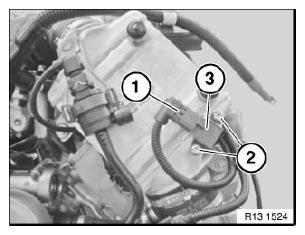

Unlock plug (1) and remove.
Release screws (2).
Tightening torque, see 13 62 7AZ in SENSOR FOR CONTROL UNIT .
Pull pressure sensor (3) out of left intercooler.
Installation:
Replace sealing ring on pressure sensor.
Installation:
Now clear the fault memory.
