Rear side panel below cutting edge

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Area specification applies to paint stage 1.

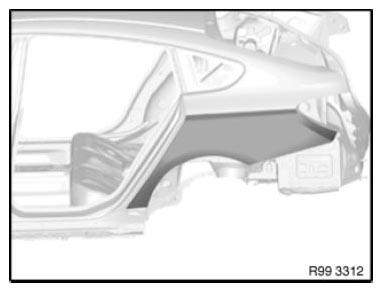

Fig 1: Identifying Paint Applying Areas On Rear Side Panel Below Cutting Edge (Paint Stage 1)
G08487980Courtesy of BMW OF NORTH AMERICA, INC.


Area specification applies to paint stage 3.

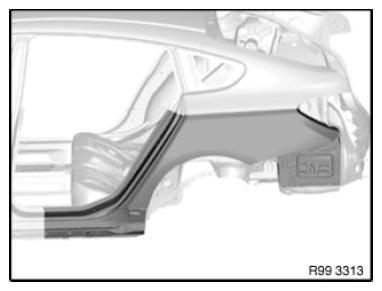

Fig 1: Identifying Paint Applying Areas On Rear Side Panel Below Cutting Edge (Paint Stage 3)
G08487981Courtesy of BMW OF NORTH AMERICA, INC.
