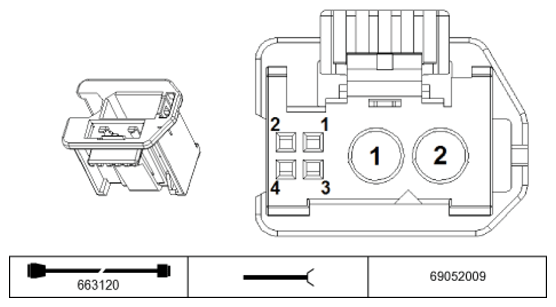

Digital Tuner SX10610A Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector X10610
| Pin |
Type |
Description /Signal type |
Connection /Measuring notes |
| 1 |
E |
Supply, terminal 30G |
Fuse F13 |
| 2 |
-- |
Not used |
|
| 3 |
M |
Ground |
Ground point |
| 4 |
-- |
Not used |
|
