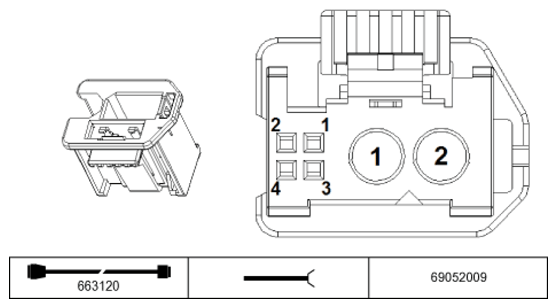

CD Changer X18180 Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector X18180
| Pin |
Type |
Description /Signal type |
Connection /Measuring notes |
| 1 |
E |
Supply, terminal 30G |
Fuse F14 |
| 2 |
M |
Ground |
Ground point |
| 3 |
E |
Signal, terminal 58G |
Solder connector |
| 4 |
-- |
Not used |
|
