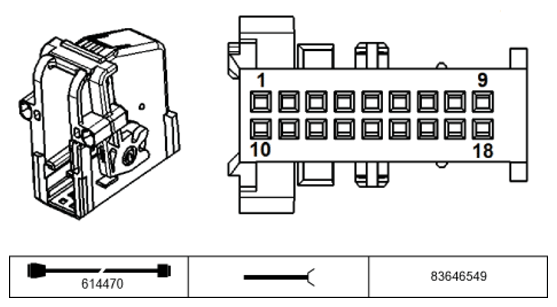

Additional Instrument SX9002A Connector End View
Pin Assignments At Plug Connector X9002
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Supply, central information display | Instrument cluster control module |
| 2 | A | Terminal R | Instrument cluster control module |
| 3 | -- | Not occupied | |
| 4 | E | Signal, outside temperature | Outside temperature sensor |
| 5 | M | Ground, outside temperature | Outside temperature sensor |
| 6 | E/A | CAN bus high | Junction box |
| 7 | E/A | CAN bus low | Junction box |
| 8 | A | Terminal R | Instrument cluster control module |
| 9 | E | Supply, terminal 30G | Fuse F37 only MINI R5x |
| 9 | E | Supply, terminal 30 | Fuse F29 only MINI R6x |
| 10 | -- | Not occupied | |
| 11 | E | Activation, red LED | Junction box, electronics |
| 12 | E | Signal, LED for antitheft alarm system | Junction box, electronics |
| 13 | E/A | Bus signal | Instrument cluster control module |
| 14 | -- | Not occupied | |
| 15 | -- | Not occupied | |
| 16 | -- | Not occupied | |
| 17 | E | Telephone on LED display DWA | Instrument cluster control module |
| 18 | M | Ground | Ground point |
