31..... Front axle overview

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

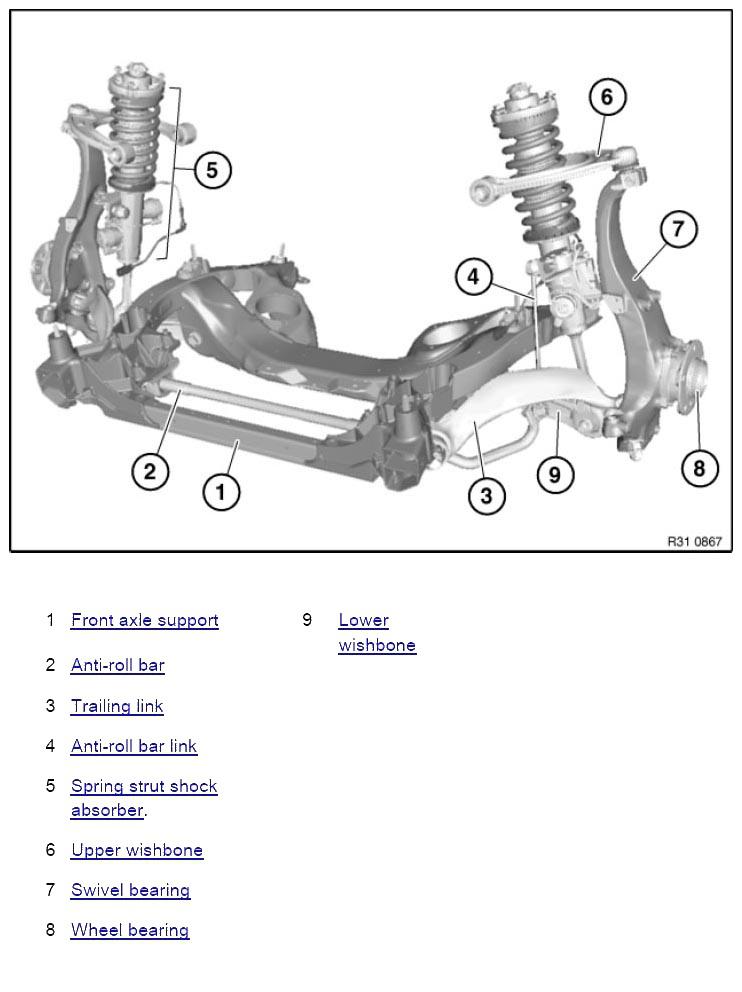

Fig 1: Overview Of Front Axle
G08470252Courtesy of BMW OF NORTH AMERICA, INC.

Safety instructions & general information: see LIFTING THE VEHICLE USING A VEHICLE HOIST  and RAISING VEHICLE WITH TROLLEY JACK .
