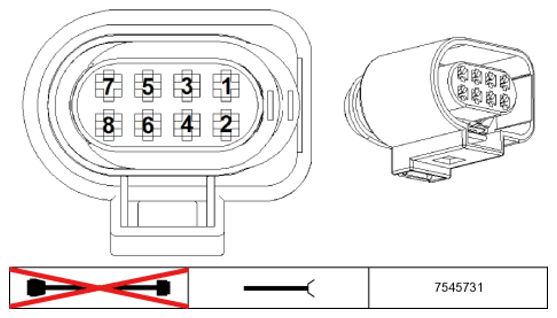

Transmission Shift Device X11631 Connector End View
Pin Assignments At Plug Connector X11631
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Signal, oil temperature | Transmission control |
| 2 | M | Ground Signal, oil temperature | Transmission control |
| 3 | A | Speed signal | Transmission control |
| 4 | A | Speed signal | Transmission control |
| 5 | A | Speed signal | Transmission control |
| 6 | A | Speed signal | Transmission control |
| 7 | -- | Not occupied | |
| 8 | -- | Not occupied |
