13 62 531 Replacing coolant temperature sensor (M54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Installation location:

Coolant temperature sensor (1) is fitted below intake air manifold in cylinder head of cylinder 6.

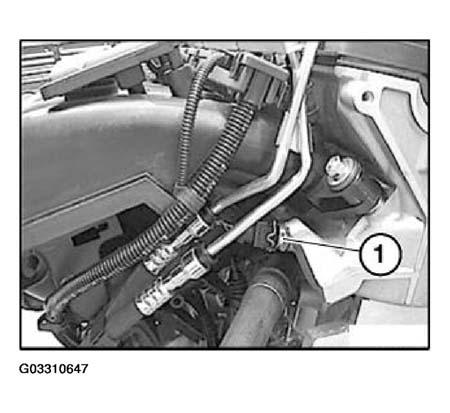

Fig 1: Locating Intake Air Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Remove intake air manifold. Refer to REMOVING AND INSTALLING INTAKE AIR MANIFOLD (M54) .

Disconnect plug connection (1).

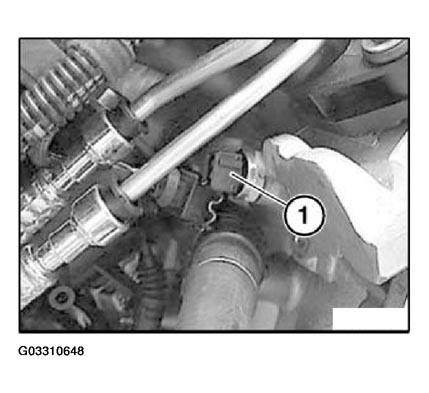

Fig 2: Removing Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew temperature sensor.

Installation:

Tightening torque 13 62 2AZ

Check coolant level, top up coolant if necessary.

NOTE: Read out fault memory of DME control unit.

Check stored fault messages.

Rectify faults.

Then clear fault memory.
