61 12 ... ABS Wiring Diagram

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

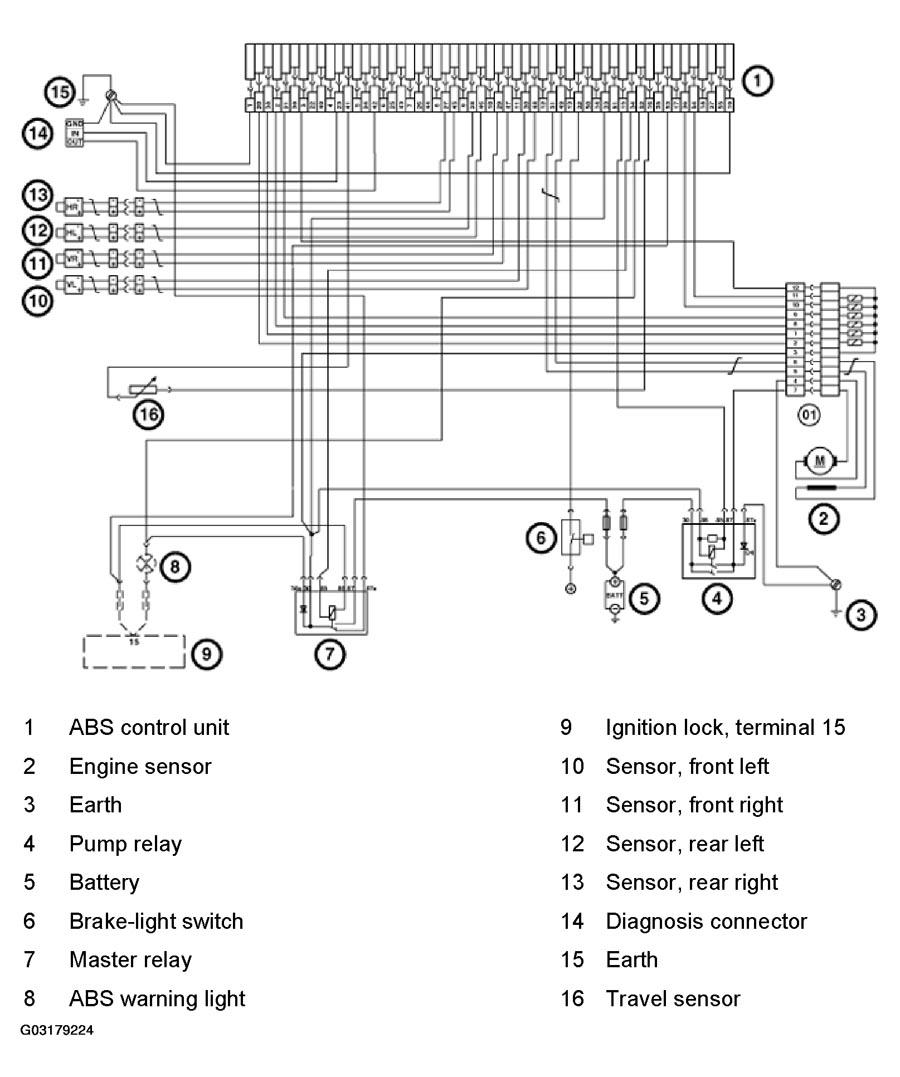

Fig 1: Wiring Diagram - ABS

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For troubleshooting pin assignment, refer to INTRODUCTION in Pin Voltage Charts.
